FDC400KXZE1/1 PIPING

Name: FDC400KXZE1/1 PIPING
SKU: FDC400KXZE1/1 PIPING
Availability: InStock

FDC400KXZE1/1 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

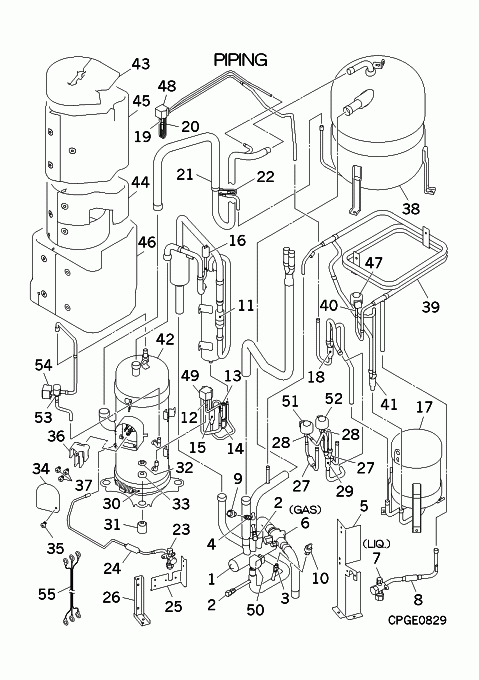

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C094

VALVE,S(4WAY)

Notes: 20S

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Contact

PCA327B056A

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B071D

[4] In Stock

PCA327B056C

VALVE,SERVICE

Show Image

[5] Contact

PCB116A729

BRACKET

Contact

[6] In Stock

SSA381A748A

VALVE,SERVICE

Notes: GAS Show Image

[7] In Stock

PCB381A080

VALVE SERVI

Notes: LIQ., LIQ Show Image

[8] In Stock

SSA357A007A

STRAINER

Show Image

[9] In Stock

SSA551D022V

SENSOR,LP

Notes: PSL

[10] In Stock

SSA551D024F

SENSOR,HP

Notes: PSH Show Image

[11] Contact

SSA385A056

VALVE,CHECK

Contact

Substitute: SSA385A059

[11-16] Contact

PCB354A065

SEPARATOR ASSY,OIL

Contact

[12] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6, SV6/ LENGTH 6.9CM Show Image

[12-15] Contact

PCB382A252

VALVE ASSY

Contact

[13] Contact

PCB315F149

CAPILLARY

Contact

Notes: !D1.0XD3.2 L500

[14] Contact

PCB315F214

CAPILLARY

Contact

Notes: !D1.5XD3.2 L200

[15] In Stock

SSA357A053A

STRAINER

Show Image

[16] In Stock

SSA532A085NB

SWITH HP

Notes: 63H1-1 Show Image

[17] Contact

SSA352A129G

RECEIVER ASSY

Contact

[18] In Stock

SSA357A054

STRAINER

Show Image

[19] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6, SV6/ LENGTH 6.9CM Show Image

[19-20] Contact

PCB382A253A

VALVE ASSY(2WAY)

Contact

[20] Contact

PCB315F215

CAPILLARY

Contact

Notes: !D1.8XD3.2 L500

[21-22] Contact

PCB321G639

PIPE,SUCTION

Contact

[22] Contact

PCB315F151

CAPILLARY

Contact

Notes: !D2.4XD4.0 L350

[23] Contact

PCB381A078

VALVE SERVI

Contact

[24] In Stock

SSA357A005A

STRAINER

Show Image

[25] Contact

PCB116A851

BRACKET

Contact

[26] Contact

PCB116A854

BRACKET

Contact

[27] Out of Stock

SSA357A005P

STRAINER

Show Image

[28] In Stock

SSA387F044

EXP VALVE

Notes: EEVC or SM1, EEV Body Show Image

[29] In Stock

SSA357A054

STRAINER

Show Image

[30] In Stock

PCA541B011AT

HEATER ASSY(CRANK)

Show Image

[31] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[32] In Stock

SSA914C033

NUT

Notes: 1pc

[33] In Stock

SSA915H042

WASHER

Notes: 1pc ONLY

[34] Contact

AGF947K102

COVER,TERMINAL

Contact

[35] Out of Stock

H051D05X008

SCREW

Notes: M5X8, 1pc ONLY

[36] Contact

ASA561B005

BLOCK,TERMINAL

Contact

[37] Out of Stock

ASA912A001

SCREW,PAN-CRS

Notes: M5X8, 1pc ONLY

[38] Contact

SSA351A234G

ACCUMULATOR

Contact

[39] Contact

PCB303A041

HEAT EXCH ASSY(LIQ

Contact

[40] In Stock

SSA387F045A

VALVE EXPA

Notes: EEVC

[41] In Stock

SSA357A055

STRAINER

[42] In Stock

AGF201A858DF

COMPRESSOR

Notes: GUC5185ND47V, ***COMPRESSORS CANNOT BE RETURNED***

[43] Contact

PCB151D127

INSULATION,COMP

Contact

[44] Contact

PCB151D125

INSULATION,COMP

Contact

[45] Contact

PCB151D126

INSULATION,COMP

Contact

[46] Contact

PCB151D128

INSULATION,COMP

Contact

[47] In Stock

SSA382F212AB

COIL,SOLENOID

Notes: FOR EEVSC Show Image

[48] In Stock

PCB382F119DA

COIL ASSY,SOLENOID

Notes: FOR SV1, LENGTH 137CM Show Image

[49] In Stock

PCB382F119DY

COIL ASSY,SOLENOID

Notes: FOR SV6 Show Image

[50] In Stock

PCB382F119DL

COIL ASSY,SOLENOID

Notes: FOR 20S, LENGTH 141CM Show Image

[51] In Stock

SSA382F212Z

COIL,SOLENOID

Notes: FOR EEVH1 Show Image

[52] In Stock

SSA382F212AA

COIL,SOLENOID

Notes: FOR EEVH2 Show Image

[53] Contact

SSA382A257

VALVE(2WAY)

Contact

Notes: 20UF

[54] In Stock

PCB382F119DV

COIL ASSY,SOLENOID

Notes: FOR 20UF Show Image

[55] In Stock

PCB504A331V

WIRING ASSY

Notes: FOR COMP. Show Image

SKU: FDC400KXZE1/1 PIPING Category: Uncategorised
