FDC400KXZE1/1 HEAT EXCH. ASSY

FDC400KXZE1/1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

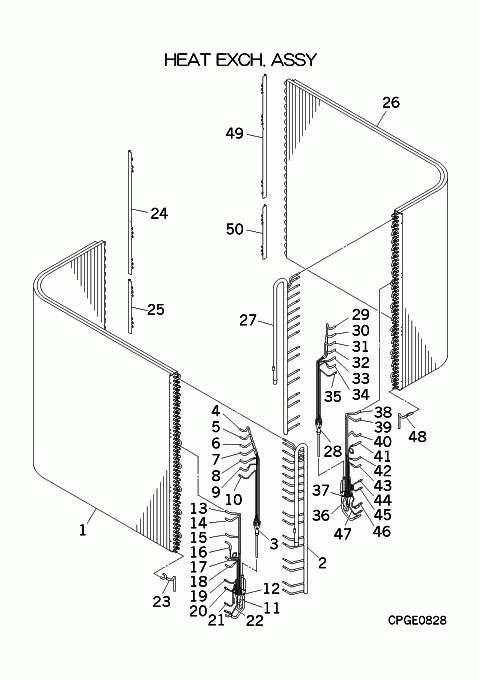

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A051D
HEAT EXCH(AIR)
Contact
[1-25] In Stock
PCB301A205
HEAT EXCH ASSY AIR
Notes: FRONT, ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***
[2] Contact
PCB315D324
HEADER ASSY,GAS
Contact
[3] Contact
SSA315A309
DISTRIBUTOR
Contact
[3-10] Contact
PCB315A131
DISTRIBUTOR ASSY
Contact
[4] Contact
PCB315F009
CAPILLARY ASSY(1)
Contact
Notes: !D2.0XD4.0 L500
[5] Contact
PCB315F010
CAPILLARY ASSY(2)
Contact
Notes: !D2.2XD4.0 L500
[6] Contact
PCB315F011
CAPILLARY ASSY(3)
Contact
Notes: !D2.2XD4.0 L500
[7] Contact
PCB315F012
CAPILLARY ASSY(4)
Contact
Notes: !D2.2XD4.0 L500
[8] Contact
PCB315F013
CAPILLARY ASSY(5)
Contact
Notes: !D2.2XD4.0 L500
[9] Contact
PCB315F014
CAPILLARY ASSY(6)
Contact
Notes: !D2.0XD4.0 L500
[10] Contact
PCB315B892
CAPILLARY(7)
Contact
Notes: !D2.0XD4.0 L500
[11] Contact
SSA315A309C
DISTRIBUTOR
Contact
[11-22] Contact
PCB315A132
DISTRIBUTOR ASSY
Contact
[12] Contact
PCB315A124
DISTRIBUTOR ASSY
Contact
[13] Contact
PCB315B859
CAPILLARY ASSY(1)
Contact
Notes: !D3.0XD4.0 L300
[14] Contact
PCB315B860
CAPILLARY ASSY(2)
Contact
Notes: !D3.0XD4.0 L300
[15] Contact
PCB315B861
CAPILLARY ASSY(3)
Contact
Notes: !D3.0XD4.0 L300
[16] Contact
PCB315B862
CAPILLARY ASSY(4)
Contact
Notes: !D3.0XD4.0 L500
[17] Contact
PCB315B863
CAPILLARY ASSY(5)
Contact
Notes: !D3.0XD4.0 L300
[18] Contact
PCB315B864
CAPILLARY ASSY(6)
Contact
Notes: !D2.8XD4.0 L300
[19] Contact
PCB315B899
CAPILLARY(7)
Contact
Notes: !D3.0XD4.0 L300
[20] Contact
PCB315F079
CAPILLARY(8)
Contact
Notes: !D2.8XD4.0 L300
[21] Contact
PCB315B901
CAPILLARY(9)
Contact
Notes: !D3.0XD4.0 L300
[22] Contact
PCB315F080
CAPILLARY(10)
Contact
Notes: !D3.0XD4.0 L400
[23] Contact
PCB321G231
PIPE ASSY(L)
Contact
[24] Contact
PCB141A042
PLATE,BAFFLE
Contact
Notes: UPPER
[25] Contact
PCB141A042A
PLATE,BAFFLE
Contact
Notes: LOWER
[26] Contact
PCB311A051F
HEAT EXCH(AIR)
Contact
[26-50] In Stock
PCB301A205A
HEAT EXCHANGE ASSY
Notes: REAR, ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***
[27] Contact
PCB315D326
HEADER ASSY,GAS
Contact
[28] Contact
SSA315A309
DISTRIBUTOR
Contact
[28-35] Contact
PCB315A131A
DISTRIBUTOR ASSY
Contact
[29] Contact
PCB315F015
CAPILLARY ASSY(1)
Contact
Notes: !D2.0XD4.0 L500
[30] Contact
PCB315F016
CAPILLARY ASSY(2)
Contact
Notes: !D2.2XD4.0 L500
[31] Contact
PCB315F017
CAPILLARY ASSY(3)
Contact
Notes: !D2.2XD4.0 L500
[32] Contact
PCB315F018
CAPILLARY ASSY(4)
Contact
Notes: !D2.2XD4.0 L500
[33] Contact
PCB315F019
CAPILLARY ASSY(5)
Contact
Notes: !D2.2XD4.0 L500
[34] Contact
PCB315F020
CAPILLARY ASSY(6)
Contact
Notes: !D2.0XD4.0 L500
[35] Contact
PCB315B909
CAPILLARY(7)
Contact
Notes: !D2.0XD4.0 L500
[36] Contact
SSA315A309C
DISTRIBUTOR
Contact
[36-47] Contact
PCB315A132A
DISTRIBUTOR ASSY
Contact
[37] Contact
PCB315A124
DISTRIBUTOR ASSY
Contact
[38] Contact
PCB315B876
CAPILLARY ASSY(1)
Contact
Notes: !D3.0XD4.0 L300
[39] Contact
PCB315B877
CAPILLARY ASSY(2)
Contact
Notes: !D3.0XD4.0 L300
[40] Contact
PCB315B878
CAPILLARY ASSY(3)
Contact
Notes: !D3.0XD4.0 L300
[41] Contact
PCB315B879
CAPILLARY ASSY(4)
Contact
Notes: !D3.0XD4.0 L500
[42] Contact
PCB315B880
CAPILLARY ASSY(5)
Contact
Notes: !D3.0XD4.0 L300
[43] Contact
PCB315B881
CAPILLARY ASSY(6)
Contact
Notes: !D2.8XD4.0 L300
[44] Contact
PCB315B916
CAPILLARY(7)
Contact
Notes: !D3.0XD4.0 L300
[45] Contact
PCB315F081
CAPILLARY(8)
Contact
Notes: !D2.8XD4.0 L300
[46] Contact
PCB315B918
CAPILLARY(9)
Contact
Notes: !D3.0XD4.0 L300
[47] Contact
PCB315F082
CAPILLARY(10)
Contact
Notes: !D3.0XD4.0 L400
[48] Contact
PCB321G231A
PIPE ASSY(L)
Contact
[49] Contact
PCB141A042
PLATE,BAFFLE
Contact
Notes: UPPER
[50] Contact
PCB141A042A
PLATE,BAFFLE
Contact
Notes: LOWER
