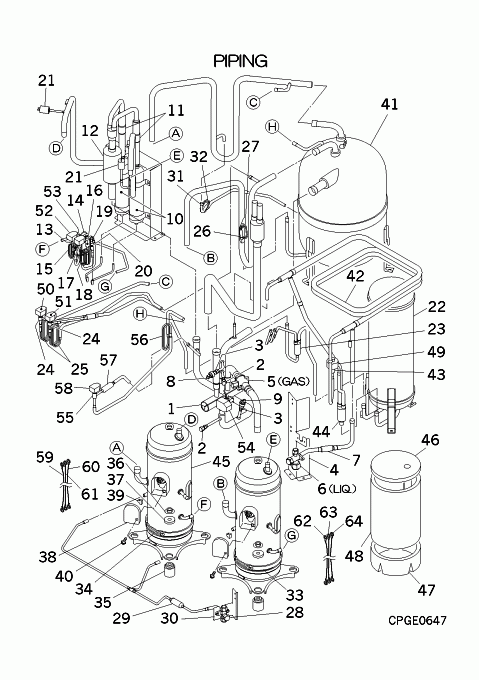

FDC400KXE6 PIPING

FDC400KXE6 PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C086
VALVE,S(4WAY)
Notes: 20S
[2] In Stock
SSA327B067
VALVE,SERVICE
SSA327B067
[3] Contact
PCA327B056A
VALVE ASSY,SERVICE
Contact
Substitute: SSA327B071D
[4] Out of Stock
PCB116A479
BRACKET
[5] In Stock
SSA381A855
SERVICE VALVE
Notes: GAS Show Image
SSA381A855
[6] In Stock
PCB381A080
VALVE SERVI
Notes: LIQ., LIQ Show Image
PCB381A080
[7] In Stock
SSA357A007A
STRAINER
SSA357A007A
[8] In Stock
SSA551D022V
SENSOR,LP
Notes: PSL
[9] In Stock
SSA551D024F
SENSOR,HP
Notes: PSH Show Image
SSA551D024F
[10] Contact
PCB325A007
PIPE,SHELL
Contact
[10-20] In Stock
PCB354A049A
OIL SEPARATOR
[10-21] In Stock
PCB354A048H
SEPARATOR ASSY,OIL
[11] Contact
SSA385A051
VALVE,CHECK
Contact
[12] Contact
SSA325A001CL
PIPE,SHELL
Contact
[13] In Stock
SSA382A219
VALVE(2WAY)
Notes: SV, LENGTH 7.5CM Show Image
SSA382A219
[14] Contact
PCB315B805
CAPILLARY
Contact
Notes: !D1.2XD3.2 L500
[15] Contact
PCB315B831A
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[16] Contact
SSA357A048A
STRAINER
Contact
[17] In Stock
SSA382A219
VALVE(2WAY)
Notes: SV, LENGTH 7.5CM Show Image
SSA382A219
[18] Contact
PCB315B831
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[19] Contact
PCB315B801A
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[20] Contact
SSA357A048A
STRAINER
Contact
[21] In Stock
SSA532A085NA
SWITCH, HP
Notes: 63H1-1,2
[22] Contact
SSA352A105P
RECEIVER ASSY
Contact
Substitute: OUT OF PRODUCTION Notes: KXE4A & KXRE4A FUSIBLE PLUG PCB006A113Y/SSA327A008
[23] In Stock
SSA357A024
STRAINER
SSA357A024
[24] In Stock
SSA382A249A
VALVE,S(2WAY)
Notes: SV, SV1 Show Image
SSA382A249A
[24-25] Contact
PCB382A201
VALVE ASSY(2WAY)
Contact
[25] Contact
PCB315B817
CAPILLARY
Contact
Notes: !D1.6XD3.2 L500, !D1.3XD3.2 L500
[26-27] Contact
PCB321F658D
PIPE,SUCTION(2)
Contact
[27] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[28] Contact
PCB381A078
VALVE SERVI
Contact
[29] In Stock
SSA357A005A
STRAINER
SSA357A005A
[30] Contact
PCB116A527
BRACKET
Contact
[31-32] Contact
PCB315B809
CAPILLARY ASSY
Contact
[32] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[33] In Stock
PCA541B021AT
HEATER ASSY(CRANK)
[34] In Stock
PCA541B031
HEATER ASSY(CRANK)
PCA541B031
[35] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[36] In Stock
SSA914C033
NUT
Notes: 1pc
[37] Contact
SSA915H039A
WASHER
Contact
Notes: 1pc ONLY
[38] In Stock
PCB008A195
PARTS SET
Notes: Includes Cover, Nuts x3 & Gasket Show Image
PCB008A195
[39] In Stock
ASA561B002
BLOCK,TERMINAL
[40] Out of Stock
H051D05X008
SCREW
Notes: M5X8, 1pc ONLY
[41] In Stock
SSA351A228D
ACCUMULATOR
[42] In Stock
PCB303A011
HEAT LIQ
[43] In Stock
SSA387F036
EXP VALVE
Notes: EEV, EEV(HEAT) or EEVH1-EEVH2 Show Image
SSA387F036
[44] In Stock
SSA357A024C
STRAINER
SSA357A024C
[45] In Stock
AGT201B827HD
COMPRESSOR
Notes: GTC5150NH48L, ***COMPRESSORS CANNOT BE RETURNED***
[46] In Stock
PCA151D034
INSULATO CO
[47] Contact
PCB151D100
INSULATIO
Contact
[48] Contact
PCB151D088A
INSULATION,COMP
Contact
[49] Contact
SSA382F210AZ
COIL,SOLENOID
Contact
Notes: FOR EEVSC

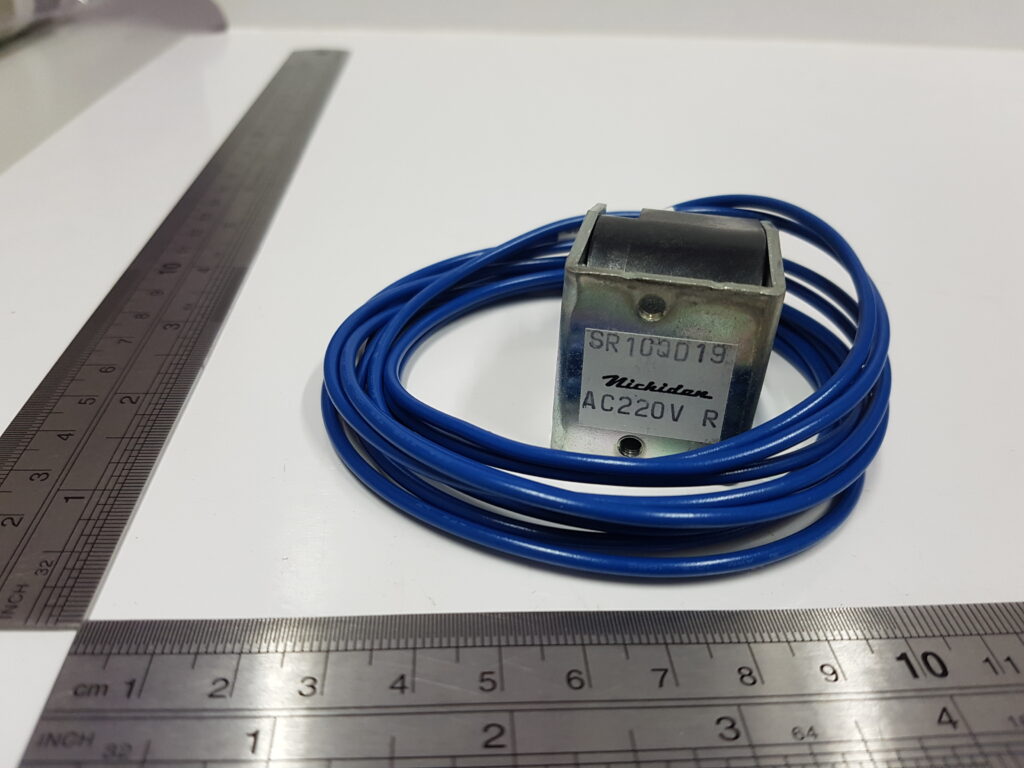

[50] Contact
PCB382F119A
COIL ASSY,SOLENOID
Contact
Notes: FOR SV1

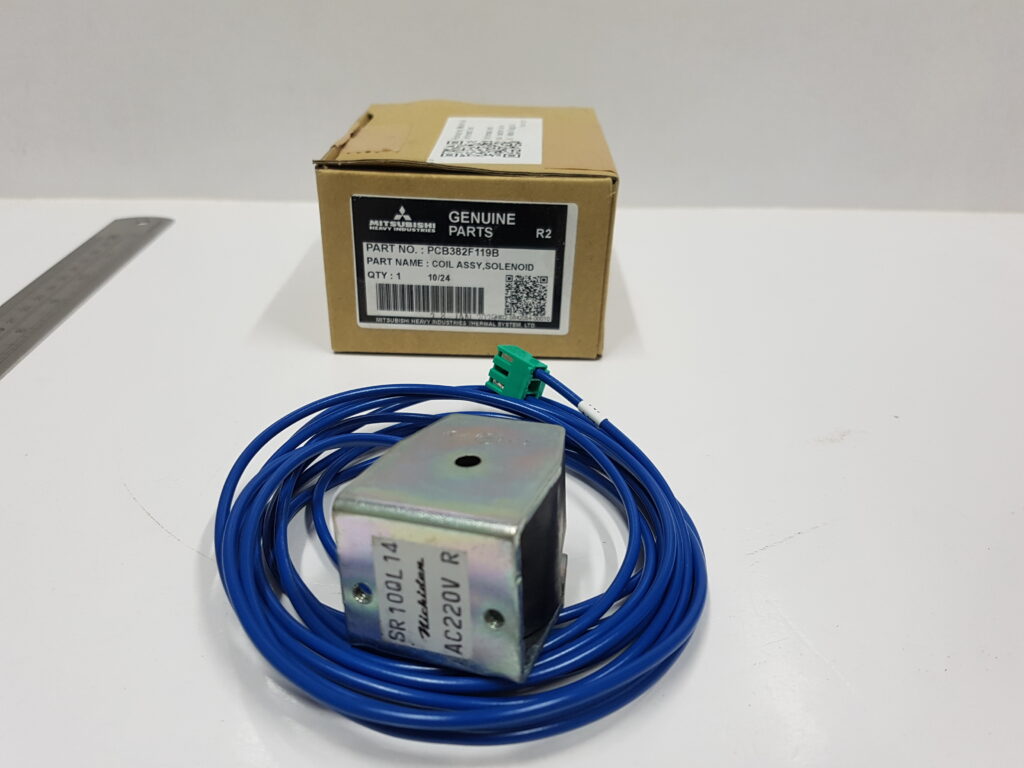

[51] Contact
PCB382F119B
COIL ASSY,SOLENOID
Contact
Notes: FOR SV2
[52] In Stock
PCB382F119D
COIL ASSY,SOLENOID
Notes: FOR SV6 Show Image
PCB382F119D
[54] In Stock
PCB382F119L
COIL ASSY,SOLENOID
Notes: FOR 20S, FOR 20S/ LENGTH 33.5CM Show Image
PCB382F119L
[55] Contact
SSA382A273
VALVE,S(2WAY)
Contact
Substitute: SSA382A254 Notes: SV13 or SV4, SV13
[55-57] Contact
PCB382A203
VALVE ASSY(2WAY)
Contact
[56] Contact
PCB315B842
CAPILLARY
Contact
Notes: !D3.0XD4.0 L500
[57] In Stock
SSA357A005A
STRAINER
SSA357A005A
[58] In Stock
PCB382F119K
COIL ASSY,SOLENOID
Notes: FOR SV13 Show Image
PCB382F119K
[59] Contact
PCA504A262HR
WIRING ASSY
Contact
Notes: !CM1 U
[60] Contact
PCA504A262KR
WIRING ASSY
Contact
Notes: !CM1 V
[61] Contact
PCA504A262MR
WIRING ASSY
Contact
Notes: !CM1 W
[62] Contact
PCB504A308P
WIRING ASSY
Contact
Notes: !CM2 U
[63] Contact
PCB504A308R
WIRING ASSY
Contact
Notes: !CM2 V
[64] Contact
PCB504A308S
WIRING ASSY
Contact
Notes: !CM2 W
