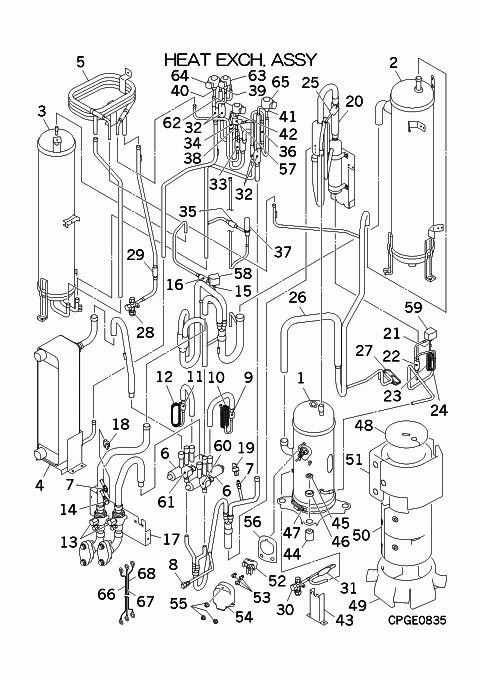

FDC335KXZWE1 HEAT EXCH. ASSY

FDC335KXZWE1 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
AGT201B827HD
COMPRESSOR
Notes: GTC5150NH48L, ***COMPRESSORS CANNOT BE RETURNED***
[2] Contact
SSA351A250
ACCUMULATOR
Contact
[3] Contact
SSA352A139
RECEIVER ASSY
Contact
[4] Contact
PCB312D012
HEAT EXCH ASSY(W)
Contact
[5] Contact
PCB303A036
HEAT EXCH ASSY(LIQ
Contact
[6] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20SH,20SM, Reversing Valve Body
[7] Contact
PCA327B056A
VALVE ASSY,SERVICE
Contact
Substitute: SSA327B071D
[8] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[9] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[9-10] Contact
PCB321G465
PIPE ASSY(E)
Contact
[10] Contact
PCB315F088
CAPILLARY
Contact
Notes: !D0.9XD2.0 L1000
[11] In Stock
SSA357A051B
STRAINER
Show Image
SSA357A051B
[11-12] Contact
PCB321G468
PIPE ASSY(E)
Contact
[12] Contact
PCB315F088
CAPILLARY
Contact
Notes: !D0.9XD2.0 L1000
[13] In Stock
SSA381A748A
VALVE,SERVICE
Notes: GAS Show Image
SSA381A748A
[14] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[15] In Stock
SSA382A249A
VALVE,S(2WAY)
Notes: SVR, SV1 Show Image
SSA382A249A
[16] Out of Stock
SSA357A005AC
STRAINER
Show Image
SSA357A005AC
[17] Contact
PCB116B112
BRACKET
Contact
[18] In Stock
SSA551D022C
SENSOR LP
Notes: PSL, LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[19] In Stock
SSA551D024A
SENSOR HP
Notes: PSH, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[20] Contact
SSA385A051
VALVE,CHECK
Contact
[20-24] Contact
PCB354A062
SEPARATOR,OIL
Contact
[20-25] Contact
PCB354A061
SEPARATOR ASSY,OIL
Contact
[21] In Stock
SSA382A219
VALVE(2WAY)
Notes: SVO, LENGTH 7.5CM Show Image
SSA382A219
[21-24] Contact
PCB382A244
VALVE ASSY
Contact
[22] Contact
SSA357A048D
STRAINER
Contact
[23] Contact
PCB315B997
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[24] Contact
PCB315F008
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[25] In Stock
SSA532A085NB
SWITH HP
Notes: 63H1 Show Image
SSA532A085NB
[26-27] Contact
PCB321G436
PIPE,SUCTION
Contact
[27] Contact
PCB315F087
CAPILLARY
Contact
Notes: !D2.2XD3.2 L300
[28] Contact
PCB381A077A
VALVE SERVI
Contact
Notes: LIQ.
[29] In Stock
SSA357A007A
STRAINER
Show Image
SSA357A007A
[30] Contact
PCB381A074
VALVE,SERVICE(3/8"
Contact
Notes: LIQ.
[31] In Stock
SSA357A059B
STRAINER
[32] Contact
SSA357A024K
STRAINER
Contact
[33] Contact
SSA357A048D
STRAINER
Contact
[34] Out of Stock
SSA357A005AC
STRAINER
Show Image
SSA357A005AC
[35] In Stock
SSA357A051A
STRAINER
Show Image
SSA357A051A
[36] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[37] Contact
SSA383D015
VALVE,DPR
Contact
[38] In Stock
SSA382A219
VALVE(2WAY)
Notes: SVO, LENGTH 7.5CM Show Image
SSA382A219
[39] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEVW2, 'BODY' ONLY. Does NOT include coil
[40] In Stock
SSA387F044A
EXP VAL XP
Notes: EEVW1, EXPANSION VALVE BODY ONLY Show Image
SSA387F044A
[41] Contact
SSA387F050A
VALVE,BODY(EXP)
Contact
Notes: EEVG
[42] In Stock
SSA387F047
VALVE EXP
Notes: EEVSC, EEV - VALVE BODY Show Image
SSA387F047
[43] Contact
PCB116B042
BRACKET
Contact
[44] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[45] In Stock
SSA914C033
NUT
Notes: 1pc
[46] Contact
SSA915H039A
WASHER
Contact
Notes: 1pc ONLY
[47] In Stock
PCA541B031
HEATER ASSY(CRANK)
Show Image
PCA541B031
[48] In Stock
PCA151D034
INSULATO CO
[49] Contact
PCB151D100
INSULATIO
Contact
[50] In Stock
PCB151D088B
INSULATION,COMP
[51] Contact
PCB151D118A
INSULATION,COMP
Contact
[52] In Stock
ASA561B002
BLOCK,TERMINAL
[53] Out of Stock
SSA912A001
SCREW
Substitute: RE60179 Notes: M5X8, 1pc ONLY
[54] In Stock
PCB008A195
PARTS SET
Notes: Includes Cover, Nuts x3 & Gasket Show Image
PCB008A195
[55] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[56] Contact
AGT151A101
GASKET
Contact
[57] Contact
PCB382F133A
COIL ASSY,SOLENOID
Contact
Notes: FOR SVB
[58] Contact
PCB382F133B
COIL ASSY,SOLENOID
Contact
Notes: FOR SVR
[59] Contact
PCB382F133C
COIL ASSY,SOLENOID
Contact
Notes: FOR SVO
[60] Contact
PCB382F133D
COIL ASSY,SOLENOID
Contact
Notes: FOR 20SM
[61] Contact
PCB382F133F
COIL ASSY,SOLENOID
Contact
Notes: FOR 20SH
[62] In Stock
SSA382F228BA
SENSOR ASSY
Notes: FOR EEVSC, FOR EEVH1 Show Image
SSA382F228BA
[63] Contact
SSA382F210AZ
COIL,SOLENOID
Contact
Notes: FOR EEVW2, FOR EEVSC
[64] In Stock
SSA382F212AA
COIL,SOLENOID
Notes: FOR EEVW1, FOR EEVH2 Show Image
SSA382F212AA
[65] Contact
SSA382F212AC
COIL,SOLENOID
Contact
Notes: FOR EEVG
[66] Contact
PCA504A262HB
WIRING ASSY
Contact
Notes: U
[67] Contact
PCA504A262KB
WIRING ASSY
Contact
Notes: V
[68] Contact
PCA504A262MB
WIRING ASSY
Contact
Notes: W
SKU: FDC335KXZWE1 HEAT EXCH. ASSY Category:
