FDC335KXZWE1 CONTROL

Name: FDC335KXZWE1 CONTROL
SKU: FDC335KXZWE1 CONTROL
Availability: InStock

FDC335KXZWE1 CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

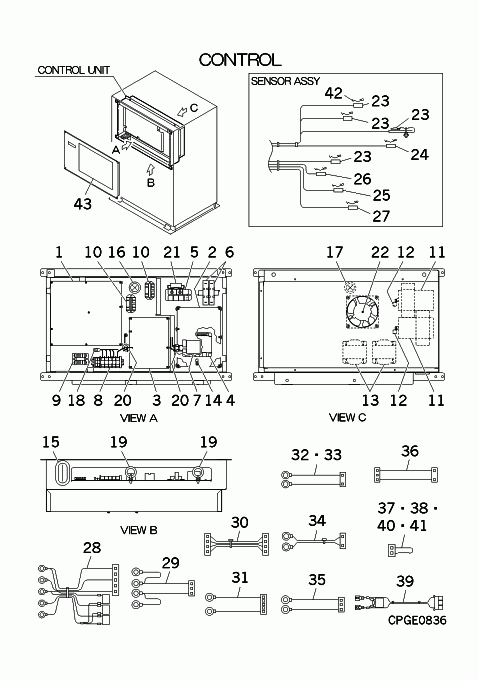

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCB505A102HA

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS PWB1

[1-41] Contact

PCB501A270C

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PCB505A062B

PWB ASSY(INV)

Notes: ONLY FOR SUPPLY PARTS PWB2 Show Image

[3] In Stock

PCB505A035H

PWB ASSY(N.F)

Notes: PWB3, PWB3‚ - NOISE FILTER Show Image

[4] In Stock

PCB008A120A

TRANSISTOR

Notes: IPM, IPM (Intelligent Power Module) / POWER TRANSISTOR

[5] In Stock

PCB008A121A

DIODE STACK

Notes: DM, aka DIODE MODULE Show Image

[6] In Stock

SSA553A379

RESISTOR

Notes: R1,2, 15O (Ohm) Show Image

[7] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf

[8] Contact

SSA561B693AB

BLOCK,TERMINAL

Contact

Notes: TB1

[9] In Stock

SSA561B693W

BLOCK,TERMI

Notes: TB2 Show Image

[10] In Stock

SSA521A715A

RELAY

Notes: 52X1,2, 52X1,52X2

[11] In Stock

SSA552F427AK

CAPACITOR

Notes: C1,2, 4700 MICRO FARADS Show Image

[12] In Stock

SSA553A380

RESISTOR

Notes: R3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[13] In Stock

SSA554B097A

REACTOR

Notes: L1,2, L1 Show Image

[14] In Stock

SSA551A192W

SENSOR ASSY

Notes: THO-P1

[15] Contact

SSA947B003

GROMMET

Contact

[16] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[17] Contact

S750W30

GROMMET

Contact

Notes: D35

[18] Contact

PCA552D003H

KILLER,NOISE ASSY

Contact

[19] In Stock

SSA552D081

FILTER,NOISE

[20] In Stock

SSA554D183

KILLER,NOISE

Show Image

[21] In Stock

PCB555B003C

VARISTOR ASSY

Show Image

[22] In Stock

PCB511A006F

MOTOR ASSY,

[23] Contact

PCB551A036

SENSOR ASSY

Contact

Notes: THO-A,D1,R1,S

[24] Contact

PCB551A036A

SENSOR ASSY

Contact

Notes: THO-C1

[25] Contact

PCB551A036B

SENSOR ASSY

Contact

Notes: THO-H

[26] Contact

PCB551A036C

SENSOR ASSY

Contact

Notes: THO-R2

[27] Contact

PCB551A036D

SENSOR ASSY

Contact

Notes: THO-SC

[28] Contact

PCB504A361S

WIRING ASSY

Contact

Notes: PWB3 L1 ,PWB3 N ,PWB3 L2 ,PWB3 L3 ,PWB3 E- PWB1 CNW

[29] Contact

PCB504A361G

WIRING ASSY

Contact

Notes: 52X2 5,52X1 5,52X1 6,52X2 6- PWB1 CNM1

[30] Contact

PCB504A361H

WIRING ASSY

Contact

Notes: PWB1 CNI1- PWB2 CNI2

[31] Contact

PCB504A338A

WIRING ASSY

Contact

Notes: IPM1 N,IPM1 P- PWB2-1 CAN

[32] Contact

PCB504A284BF

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- CNSL1

[33] Contact

PCB504A284BG

WIRING ASSY

Contact

Notes: TB2 A2,TB2 B2- CNSL2

[34] Contact

PCB504A361J

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- PWB1 CNX1

[35] Contact

PCB504A361K

WIRING ASSY

Contact

Notes: TB1 3,TB1 4- PWB1 CNQ3

[36] Contact

PCB504A361L

WIRING ASSY

Contact

Notes: PWB1 CNN8- FMC1

[37] Contact

PCB504A284BB

WIRING ASSY

Contact

Notes: PWB1 CNS1

[38] In Stock

PCB504A284BC

WIRING ASSY

Notes: PWB1 CNS2 Show Image

[39] Contact

PCB504A362A

WIRING ASSY

Contact

Notes: DM K,DM G- PWB2 CNR

[40] Contact

PCB504A284AP

WIRING ASSY

Contact

Notes: PWB1 CNG1

[41] Contact

PCB504A284AR

WIRING ASSY

Contact

Notes: PWB1 CNG2

[42] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THO-D1,C1,R1,R2,S,SC,H Show Image

[43] Contact

PCB011G014

LABEL,WIRING

Contact

Notes: !

[44] Contact

PSB011F167B

LABEL,MODEL NAME

Contact

Notes: !
