FDC335KXZME1A/P HEAT EXCH. ASSY

FDC335KXZME1A/P HEAT EXCH. ASSY

FDC335KXZME1A/P HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

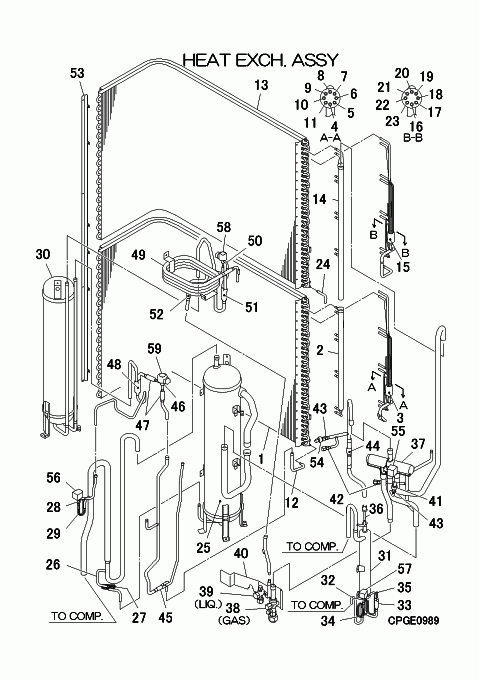

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-12] In Stock
PCB301A155G
HEAT EXCH ASSY(AIR
Notes: BOTTM
[2] Contact
PCB315D300
HEADER ASSY,GAS
Contact
Notes: !
[3] Contact
SSA315A036B
DISTRIBUTOR
Contact
Notes: !
[3-11] Contact
PCB315A125
DISTRIBUTOR ASSY
Contact
[4] Contact
PCB315B844
CAPILLARY(1)
Contact
Notes: !D2.0XD4.0 L300
[5] Contact
PCB315B845
CAPILLARY(2)
Contact
Notes: !D2.0XD4.0 L300
[6] Contact
PCB315B846
CAPILLARY(3)
Contact
Notes: !D2.2XD4.0 L300
[7] Contact
PCB315B847
CAPILLARY(4)
Contact
Notes: !D2.2XD4.0 L300
[8] Contact
PCB315B848
CAPILLARY(5)
Contact
Notes: !D2.4XD4.0 L300
[9] Contact
PCB315B849
CAPILLARY(6)
Contact
Notes: !D2.2XD4.0 L300
[10] Contact
PCB315B850
CAPILLARY(7)
Contact
Notes: !D2.2XD4.0 L300
[11] Contact
PCB315B851
CAPILLARY(8)
Contact
Notes: !D2.2XD4.0 L300
[12] Contact
PCB321F813
PIPE
Contact
[13-24] In Stock
PCB301A155H
HEAT EXCH ASSY(AIR
Notes: UPPER
[14] Contact
PCB315D300A
HEADER ASSY,GAS
Contact
Notes: !
[15] Contact
SSA315A036B
DISTRIBUTOR
Contact
Notes: !
[15-23] Contact
PCB315A125A
DISTRIBUTOR ASSY
Contact
[16] Contact
PCB315B844A
CAPILLARY(1)
Contact
Notes: !D2.4XD4.0 L300
[17] Contact
PCB315B845A
CAPILLARY(2)
Contact
Notes: !D2.2XD4.0 L300
[18] Contact
PCB315B846A
CAPILLARY(3)
Contact
Notes: !D2.8XD4.0 L300
[19] Contact
PCB315B847A
CAPILLARY(4)
Contact
Notes: !D2.8XD4.0 L300
[20] Contact
PCB315B848A
CAPILLARY(5)
Contact
Notes: !D2.8XD4.0 L300
[21] Contact
PCB315B849A
CAPILLARY(6)
Contact
Notes: !D2.8XD4.0 L300
[22] Contact
PCB315B850A
CAPILLARY(7)
Contact
Notes: !D2.8XD4.0 L300
[23] Contact
PCB315B851A
CAPILLARY(8)
Contact
Notes: !D2.8XD4.0 L300
[24] Contact
PCB321F747
PIPE
Contact
[25] Contact
SSA351A277
ACCUMULATOR
Contact
[26-27] Contact
PCB321F838A
PIPE(OIL)
Contact
[27] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[28] In Stock
SSA382A249A
VALVE,S(2WAY)
Notes: SV1 Show Image
SSA382A249A
[28-29] Contact
PCB382A196B
VALVE ASSY(2WAY)
Contact
[29] Contact
PCB315F486
CAPILLARY
Contact
Notes: !D1.3XD3.2 L500
[30] In Stock
PCB352A004B
RECEIVER ASSY
[31-36] In Stock
PCB354A042C
SEPARATOR ASSY, OIL
[32] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV6, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[32-35] In Stock
PCA321C578D
PIPE ASSY
[33] In Stock
SSA357A048
STRAINER
[34] Contact
PCA315B790
CAPILLARY
Contact
Notes: !D2.2XD3.2 L300, !D2.2XD3.2 L340
[35] Contact
PCB315B832
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[36] In Stock
SSA532A083
SWITCH HP
Notes: 63H1-1, (HIGH PRESSURE SWITCH) - 63H1 Show Image
SSA532A083
[37] In Stock
SSA382C086
VALVE,S(4WAY)
Notes: 20S
[38] In Stock
SSA381A860D
VALVE, SERVICE (3/4")
Notes: GAS
[39] In Stock
PCB381A077B
SERVICE VALVE
Notes: LIQ. Show Image
PCB381A077B
[40] Contact
PCB116A633
BRACKET
Contact
[41] In Stock
SSA551D022B
SENSOR LP
Notes: PSL, HAS 3 WIRES, SHORTER CABLE THAN SUB PART (LOW PRESSURE TRANSDUCER) Show Image
SSA551D022B
[42] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[43] Out of Stock
SSA327B067A
VALVE,SERVI
[44] In Stock
SSA385A018A
VALVE CHECK
[45] Contact
PCB315A122
DISTRIBUTOR ASSY
Contact
[46] In Stock
SSA387F044
EXP VALVE
Notes: EEVH, EEV Body Show Image
SSA387F044
[46-48] In Stock
PCB387F080L
VALVE ASSY,EXPANSI
[47] In Stock
SSA357A005AF
STRAINER
Show Image
SSA357A005AF
[48] Contact
SSA357A024J
STRAINER
Contact
[49] Contact
PCB303A023
HEAT EXCH(LIQ)
Contact
[49-52] Contact
PCB303A022C
HEAT EXCH ASSY(LIQ
Contact
[50] Out of Stock
SSA387F031
VALVE,BODY(EXP)
Substitute: SSA387F051 Notes: EEVSC, EEV substitute from navision only
[51] Contact
SSA357A024K
STRAINER
Contact
[52] Out of Stock
SSA357A005D
STRAINER
Substitute: SSA357A007A
[53] In Stock
PCB141A039
PLATE ASSY,BAFFLE
[54] In Stock
SSA551D024A
SENSOR HP
Notes: PSH, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[55] Contact
PCB382F107Z
COIL ASSY,SOLENOID
Contact
Substitute: PCB382F107ZA Notes: FOR 20S
[56] In Stock
PCB382F105AN
COIL ASSY, SOLENOID
Notes: FOR SV1
[57] In Stock
PCB382F105AM
COIL ASSY, SOLENOID
Notes: FOR SV6
[58] In Stock
SSA382F210Z
COIL,SOLENOID
Notes: FOR EEVSC, LENGTH 206CM Show Image
SSA382F210Z
[59] Out of Stock
SSA382F212F
SOLENOID
Substitute: SSA382F229F Notes: FOR EEVH
