FDC335KXZE1/1 PIPING

Name: FDC335KXZE1/1 PIPING
SKU: FDC335KXZE1/1 PIPING
Availability: InStock

FDC335KXZE1/1 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

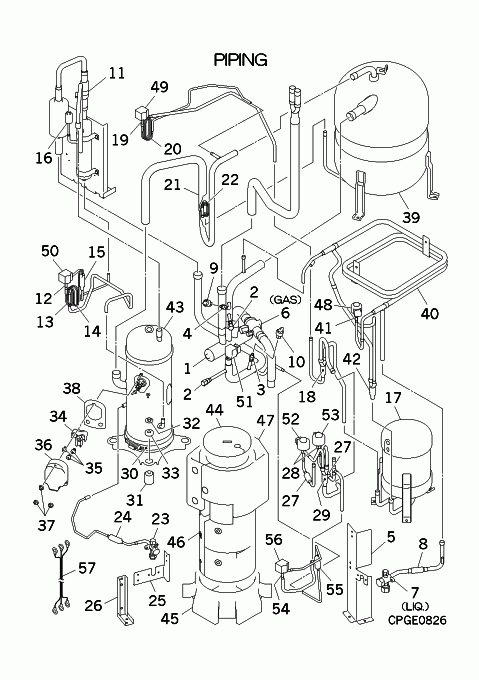

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C094

VALVE,S(4WAY)

Notes: 20S

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Contact

PCA327B056A

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B071D

[4] In Stock

PCA327B056C

VALVE,SERVICE

Show Image

[5] Contact

PCB116A729

BRACKET

Contact

[6] In Stock

SSA381A748A

VALVE,SERVICE

Notes: GAS Show Image

[7] In Stock

PCB381A080

VALVE SERVI

Notes: LIQ., LIQ Show Image

[8] In Stock

SSA357A007A

STRAINER

Show Image

[9] In Stock

SSA551D022V

SENSOR,LP

Notes: PSL

[10] In Stock

SSA551D024F

SENSOR,HP

Notes: PSH Show Image

[11] Contact

SSA385A056

VALVE,CHECK

Contact

Substitute: SSA385A059

[11-15] Contact

PCB354A068

OIL SEPARATOR

Contact

[11-16] Contact

PCB354A067

SEPARATOR ASSY,OIL

Contact

[12] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6, SV6/ LENGTH 6.9CM Show Image

[12-15] Contact

PCB382A255

VALVE ASSY

Contact

[13] Contact

PCB315B831

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[14] Contact

PCB315F153

CAPILLARY

Contact

Notes: !D1.0XD3.2 L500

[15] In Stock

SSA357A053A

STRAINER

Show Image

[16] In Stock

SSA532A085NB

SWITH HP

Notes: 63H1-1 Show Image

[17] Contact

SSA352A129G

RECEIVER ASSY

Contact

[18] In Stock

SSA357A054

STRAINER

Show Image

[19] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6, SV6/ LENGTH 6.9CM Show Image

[19-20] Contact

PCB382A253

VALVE ASSY(2WAY)

Contact

[20] Contact

PCB315B817

CAPILLARY

Contact

Notes: !D1.6XD3.2 L500, !D1.3XD3.2 L500

[21-22] Contact

PCB321G133C

PIPE,SUCTION(2)

Contact

[22] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[23] Contact

PCB381A078

VALVE SERVI

Contact

[24] In Stock

SSA357A005A

STRAINER

Show Image

[25] Contact

PCB116A851

BRACKET

Contact

[26] Contact

PCB116A854

BRACKET

Contact

[27] Out of Stock

SSA357A005P

STRAINER

Show Image

[28] In Stock

SSA387F045

VALVE EXPAN

Notes: SM Show Image

[29] In Stock

SSA357A054

STRAINER

Show Image

[30] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[31] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[32] In Stock

SSA914C033

NUT

Notes: 1pc

[33] In Stock

SSA915H042

WASHER

Notes: 1pc ONLY Show Image

[34] In Stock

ASA561B002

BLOCK,TERMINAL

[35] Out of Stock

SSA912A001

SCREW

Substitute: RE60179 Notes: M5X8, 1pc ONLY

[36] In Stock

PCB008A195

PARTS SET

Notes: Includes Cover, Nuts x3 & Gasket Show Image

[37] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

[38] Contact

AGT151A101

GASKET

Contact

[39] Contact

SSA351A234G

ACCUMULATOR

Contact

[40] Contact

PCB303A041

HEAT EXCH ASSY(LIQ

Contact

[41] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[42] In Stock

SSA357A055

STRAINER

Show Image

[43] In Stock

AGT201C824FF

COMPRESSOR

Notes: GTC5150NC47LF, ***COMPRESSORS CANNOT BE RETURNED***

[44] In Stock

PCA151D034

INSULATO CO

[45] In Stock

PCB151D100A

INSULATION,COMP

[46] In Stock

PCB151D088B

INSULATION,COMP

[47] Contact

PCB151D117A

INSULATION,COMP

Contact

[48] Contact

SSA382F210AZ

COIL,SOLENOID

Contact

Notes: FOR EEVSC

[49] In Stock

PCB382F119DA

COIL ASSY,SOLENOID

Notes: FOR SV1, LENGTH 137CM Show Image

[50] In Stock

PCB382F119DD

COIL ASSY,SOLENOID

Notes: FOR SV6 Show Image

[51] In Stock

PCB382F119DL

COIL ASSY,SOLENOID

Notes: FOR 20S, LENGTH 141CM Show Image

[52] In Stock

SSA382F212Z

COIL,SOLENOID

Notes: FOR EEVH1 Show Image

[53] In Stock

SSA382F212AA

COIL,SOLENOID

Notes: FOR EEVH2 Show Image

[54] In Stock

SSA382A282

VALVE,S(2WAY)

Notes: SV6, SV6/ LENGTH 6.9CM Show Image

[55] In Stock

SSA357A005A

STRAINER

Show Image

[56] Contact

PCB382F119DH

COIL ASSY,SOLENOID

Contact

Notes: FOR SV11

[57] Contact

PCB504A338D

WIRING ASSY

Contact

Notes: FOR COMP.
