FDC335KXRE6/D CONTROL AND PARTS SET

FDC335KXRE6/D CONTROL AND PARTS SET

Available Parts

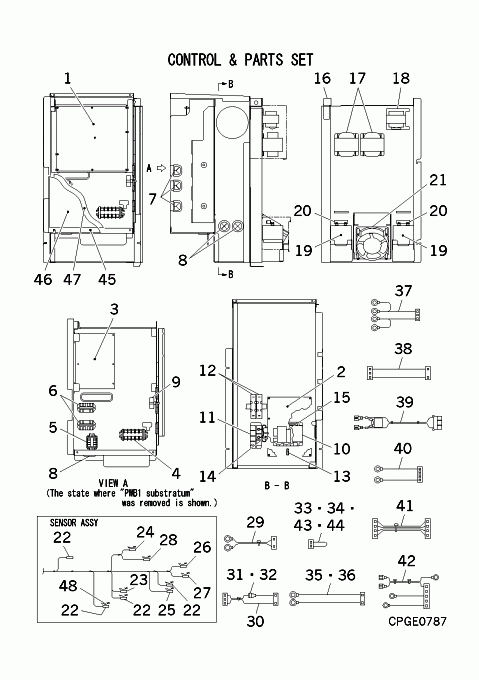

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB505A202HD PWB ASSY In Stock Notes: PWB1 - CONTROL BOARD, ONLYFORSUPPLYPARTSPWB1
  • [1-44] PCB501A256C CONTROL UNIT Contact   Contact
  • [2] PCB505A117AB PWB ASSY(INV.) In Stock Notes: PWB2, PWB2-1,2 Show Image
  • [3] PCB505A135H PWBASSY(N.F) In Stock Notes: PWB3-1,2
  • [4] SSA561B693L BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [5] SSA561B693W BLOCK,TERMI In Stock Notes: TB2 Show Image
  • [6] SSA521A715A RELAY In Stock Notes: 52X1,52X2, 52X1-1,1-2,2-1,2-2
  • [7] SSA947B017 GROMMET Contact   Contact
  • [8] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [9] SSA552D081 FILTER,NOISE In Stock
  • [10] PCB008A120A TRANSISTOR In Stock Notes: IPM (INTELLIGENT POWER MODULE) / POWER TRANSISTOR, IPM/TM
  • [11] PCB008A121A DIODE STACK In Stock Notes: AKA DIODE MODULE, DM Show Image
  • [12] SSA553A379 RESISTOR In Stock Notes: 15O (OHM), R1-1,2,R2-1,2 Show Image
  • [13] SSA551A192P SENSOR ASSY In Stock Notes: THO-P1, THO-P1 Show Image
  • [14] PCB555B003C VARISTOR ASSY In Stock Show Image
  • [15] SSA552F694 CAPACITOR Out of Stock Notes: 1250V 2.2UF (D.P)
  • [16] PCB438A043A DUCT ASSY Contact   Contact
  • [17] SSA554B097 REACTOR In Stock Notes: L1-1,2,L2-1,2
  • [18] SSA554B073 REACTOR In Stock Notes: L3 Show Image
  • [19] SSA552F427AK CAPACITOR In Stock Notes: 4700 MICRO FARADS, C1-1,C2-1,C1-2,C2-2 Show Image
  • [20] SSA553A380 RESISTOR In Stock Notes: 30 KO (KILO-OHM), R1-3,4,R2-3,4
  • [21] PCB511A006F MOTOR ASSY, In Stock
  • [22] PSA551A016 SENSOR ASSY In Stock Notes: THO-A,D1,R1,S
  • [23] PSA551A015B SENSOR ASSY In Stock Notes: THO-C1, THO-C1
  • [24] PSA551A016G SENSOR ASSY In Stock Notes: THO-H
  • [25] PSA551A016H SENSOR ASSY In Stock Notes: THO-R2
  • [26] PSA551A015J SENSOR ASSY In Stock Notes: THO-R3, THO-R3
  • [27] PSA551A015K SENSOR ASSY In Stock Notes: THO-R4
  • [28] PSA551A015L SENSOR ASSY In Stock Notes: THO-SC Show Image
  • [29] PCB504A308AF WIRING ASSY Contact Notes: TB2 A1,TB2 B1- PWB1 CNX1, TB2 A1,TB2 B1- PWB1 CNX1   Contact
  • [30-32] PCB504A338 WIRING ASSY Contact Notes: PWB1 CNA1- USED BY UNIT ASSYPWB1 CNA3- USED BY UNIT ASSY   Contact
  • [31] SSA564A112 FUSE In Stock Notes: 5A
  • [32] RWC564B002 HOLDER,FUSE In Stock Show Image
  • [33] PCB504A284BB WIRING ASSY Contact Notes: PWB1 CNS1, PWB1 CNS1   Contact
  • [34] PCB504A284BC WIRING ASSY In Stock Notes: PWB1 CNS2, PWB1 CNS2 Show Image
  • [35] PCB504A295 WIRING ASSY Contact Notes: TB2 A1,TB2 B1- CNSL1, TB2 A1,TB2 B1- CNSL1   Contact
  • [36] PCB504A295B WIRING ASSY Contact Notes: TB2 A2,TB2 B2- CNSL2, TB2 A2,TB2 B2- CNSL2   Contact
  • [37] PCB504A308AW WIRING ASSY Contact Notes: 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1, 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1   Contact
  • [38] PCB504A308BA WIRING ASSY Contact Notes: PWB1 CNN8- FMC1, PWB1 CNN8- FMC1   Contact
  • [39] PCB504A338B WIRING ASSY In Stock Substitute: PCB504A338W Notes: DM1G,DM1K-PWB2-1CNRDM2G,DM2K-PWB2-2CNR Show Image
  • [40] PCB504A338A WIRING ASSY Contact Notes: IPM1 N,IPM1 P- PWB2-1 CANIPM2 N,IPM2 P- PWB2-2 CAN   Contact
  • [41] PCB504A284L WIRING ASSY Contact Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1- PWB2 CNI2   Contact
  • [42] PCB504A308D WIRING ASSY In Stock Notes: CONNECTS FROM PWB1 TO PWB3 AND L3 REACTOR
  • [43] PCB504A284AP WIRING ASSY Contact Notes: PWB1 CNG1, PWB1 CNG1   Contact
  • [44] PCB504A284AR WIRING ASSY Contact Notes: PWB1 CNG2, PWB1 CNG2   Contact
  • [45-47] PCB142A463A COVERASSY(CONTROL Contact   Contact
  • [48] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR ASSY Show Image
SKU: FDC335KXRE6/D CONTROL AND PARTS SET Category:
