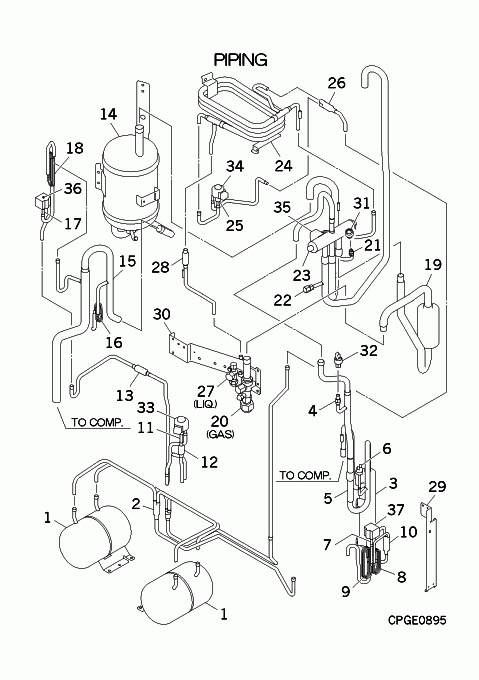

FDC280KXZPE1 PIPING

FDC280KXZPE1 PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
SSA352B045C
RECEIVER
Contact
[2] Contact
SSA357A053B
STRAINER
Contact
[3-10] Contact
PCB354A060
SEPARATOR ASSY,OIL
Contact
[4] In Stock
PCA327B056
VALVE ASSY,SERVICE
Show Image
PCA327B056
[5] In Stock
SSA385A018A
VALVE CHECK
[6] In Stock
SSA532A083
SWITCH HP
Notes: 63H1, (HIGH PRESSURE SWITCH) - 63H1 Show Image
SSA532A083
[7] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV6, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[7-10] Contact
PCB382A241
VALVE ASSY
Contact
[8] Contact
PCB315F083A
CAPILLARY
Contact
Notes: !D1.0XD3.2 L1000
[9] Contact
PCB315F083
CAPILLARY
Contact
Notes: !D1.0XD3.2 L1000
[10] In Stock
SSA357A053A
STRAINER
Show Image
SSA357A053A
[11] In Stock
SSA387F044A
EXP VAL XP
Notes: EEV or SM2, EXPANSION VALVE BODY ONLY Show Image
SSA387F044A
[12] In Stock
SSA357A051A
STRAINER
Show Image
SSA357A051A
[13] In Stock
SSA357A005AA
STRAINER
Show Image
SSA357A005AA
[14] In Stock
SSA351A242
ACCUMULATOR
[14-16] Contact
PCB351A015
ACCUMULATOR ASSY
Contact
[15-16] Contact
PCB321G297
PIPE ASSY,SUCTION
Contact
[16] In Stock
PCB315B303C
CAPILLARY
Notes: !D2.2XD3.2 L300, LENGTH 6.5CM Show Image
PCB315B303C
[17] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV6, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[17-18] Contact
PCB382A240
VALVE ASSY(2WAY)
Contact
[18] Contact
PCB315F073
CAPILLARY
Contact
Notes: !D1.3XD2.5 L500
[19-20] In Stock
PCB321G353D
PIPE(E)
[20] In Stock
SSA381A886
VALVE,SERVICE(3/4")
Notes: GAS, GAS - SUCTION 3/4 INCH
[21] In Stock
PCA327B056
VALVE ASSY,SERVICE
Show Image
PCA327B056
[22] Contact
SSA327B072
VALVE,SERVICE
Contact
[23] In Stock
SSA382C093
VALVE,S(4WAY)
Notes: 20S
[24] Contact
PCB303A035
HEAT EXCH(LIQ)
Contact
[25] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEV, 'BODY' ONLY. Does NOT include coil
[26] Contact
SSA357A053B
STRAINER
Contact
[27] In Stock
PCA381A066
VALVE ASSY
Notes: LIQ., 3/8" LIQUID Show Image
PCA381A066
[28] In Stock
SSA357A005AA
STRAINER
Show Image
SSA357A005AA
[29] Contact
PCB116A949
BRACKET
Contact
[30] In Stock
PCB116A935
BRACKET
[31] In Stock
SSA551D022C
SENSOR LP
Notes: LOW PRESSURE TRANSDUCER Show Image
SSA551D022C
[32] In Stock
SSA551D024G
SENSOR,HP
[33] In Stock
SSA382F212W
COIL SOLENOID
Notes: FOR EEVH Show Image
SSA382F212W
[34] In Stock
SSA382F210AD
COIL SOLENOID
Notes: FOR EEVC Show Image
SSA382F210AD
[35] In Stock
PCB382F107AH
COIL ASSY,SOLENOID
Notes: FOR 20S, FOR 20S/ LENGTH 70.5CM Show Image
PCB382F107AH
[36] Contact
PCB382F127C
COIL ASSY,SOLENOID
Contact
Notes: FOR SV1
[37] Contact
PCB382F127D
COIL ASSY,SOLENOID
Contact
Notes: FOR SV6
