FDC280KXZPE1 FAN AND COMPRESSOR

FDC280KXZPE1 FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

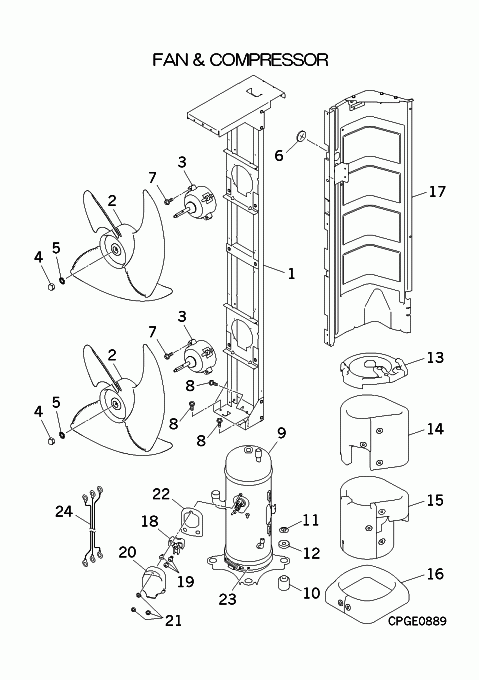

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCB116B176B
MOTOR BRACKET ASSY
[2] In Stock
SSA431B228
FAN, PROPELLER
Notes: CONDENSER FAN BLADE
[3] In Stock
SSA512T076BL
MOTOR,DC
[4] In Stock
SSA914H014A
NUT
Notes: 1pc Show Image
SSA914H014A
[5] In Stock
SSA915F002D
WASHER
Notes: 1pc ONLY Show Image
SSA915F002D
[6] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[7] In Stock
SSA913C031
SCREW,TAP & WASHER
Notes: 1pc ONLY/ LENGTH 2.7CM Show Image
SSA913C031
[8] In Stock
SSA913D020
SCREW TAP
Notes: M5X10, 1pc ONLY Show Image
SSA913D020
[9] In Stock
AGV201A001FA
COMPRESSOR ASSY
Notes: GTC5150NC40KF, ***COMPRESSORS CANNOT BE RETURNED***
[10] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[11] In Stock
SSA914C033
NUT
Notes: 1pc
[12] In Stock
SSA915H042
WASHER
Notes: 1pc ONLY Show Image
SSA915H042
[13] In Stock
PCB153D049
INSULATION,COMP
Notes: Top
[14] In Stock
PCB151D120
INSULATION,COMP
Notes: Upper middle
[15] In Stock
PCB151D105C
INSULATION,COMP
Notes: Lower Middle
[16] In Stock
PCB151D107
INSULATION,COMP
Notes: Bottom
[17] Contact
PCB141A046
PLATE ASSY,BAFFLE
Contact
[18] In Stock
ASA561B002
BLOCK,TERMINAL
[19] Out of Stock
SSA912A001
SCREW
Substitute: RE60179 Notes: M5X8, 1pc ONLY
[20] In Stock
PCB008A195
PARTS SET
Notes: Includes Cover, Nuts x3 & Gasket Show Image
PCB008A195
[21] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[22] Contact
AGT151A101
GASKET
Contact
[23] In Stock
PCA541B031C
HEATER ASSY(CRANK)
[24] In Stock
PCB504A384S
WIRING ASSY
Notes: FOR COMP.
