FDC280KXZPE1 CONTROL AND PARTS SET

FDC280KXZPE1 CONTROL AND PARTS SET

Available Parts

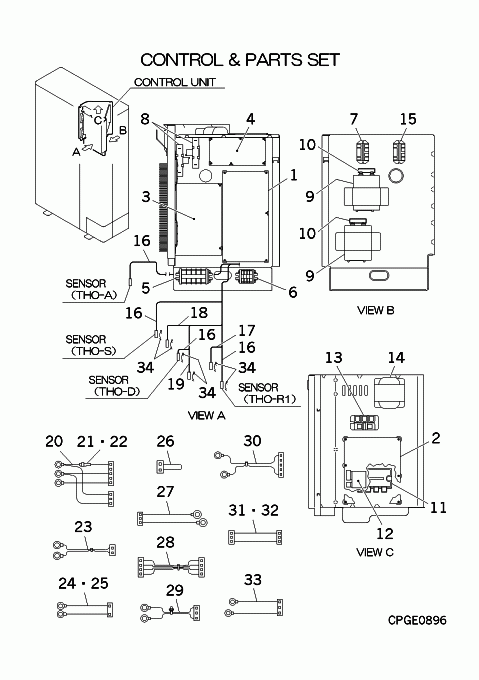

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCA505A181FD PWB ASSY (CONTROL) In Stock Notes: PWB1
  • [1-33] PCB501A279A CONTROL UNIT Contact   Contact
  • [2] PCB505A196FA PWB ASSY(INVERTER) In Stock Notes: PWB2 - INVERTER BOARD - CONFIRM MODEL AND SERVICE CODE - FDCA160VS HAS DIFFERENT BOARDS, PWB2
  • [3] PCB505A201AB PWB ASSY (N.F) In Stock Notes: PWB3
  • [4] PCB505A194A PWB ASSY (CONV.) In Stock Notes: POWER BOARD, PWB4 Show Image
  • [5] SSA561B693L BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [6] SSA561B693W BLOCK,TERMI In Stock Notes: TB2 Show Image
  • [7] SSA521A727 RELAY In Stock Notes: 52X1, 52X1-1,1-2,2-1,2-2
  • [8] SSA553A379 RESISTOR In Stock Notes: 15O (OHM), R1-1,2,R2-1,2 Show Image
  • [9] SSA552F427AJ CAPACITOR In Stock Notes: C1 400V 3900MF, C1,2
  • [10] SSA553A380 RESISTOR In Stock Notes: 30 KO (KILO-OHM), R1-3,4,R2-3,4
  • [11] PCB008A213C TRANSISTOR(POWER) In Stock Notes: COMES WITH HEAT PASTE AND SCREWS, TM
  • [12] SSA552F694 CAPACITOR Out of Stock Notes: 1250V 2.2UF (D.P)
  • [13] PCB008A212A DIODE(MODULE) In Stock Notes: DM Show Image
  • [14] SSA554B097A REACTOR In Stock Notes: L1, L1-1,2,3 Show Image
  • [15] SSA521A715A RELAY In Stock Notes: 52X1,52X2, 52X1-1,1-2,2-1,2-2
  • [16] PSA551A014R SENSOR ASSY In Stock Notes: THO-A,S,D,R1, THO-A,S,D,R1
  • [17] PCB551A029B SENSOR ASSY In Stock Notes: THO-H, THO-H
  • [18] PCB551A029M SENSOR ASSY In Stock Notes: THO-SC, THO-SC
  • [19] PSA551A023L SENSOR ASSY In Stock Notes: THO-C1, THO-C1
  • [20-22] PCB504A384 WIRING ASSY Contact Notes: PWB3 L1O,PWB3 NO,PWB3 L2O- PWB1 CNW,PWB4 CNW1, PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1   Contact
  • [21] SSA564A149AH FUSE(CURRENT) In Stock Notes: 5A Show Image
  • [22] RWC564B002 HOLDER,FUSE In Stock Show Image
  • [23] PCB504A357A WIRING ASSY Contact Notes: TB2 A1,TB2 B1- PWB1 CNX1   Contact
  • [24] PCB504A284BF WIRING ASSY Contact Notes: TB2 A1,TB2 B1- CNSL1, TB2 A1,TB2 B1- CNSL1   Contact
  • [25] PCB504A284BG WIRING ASSY Contact Notes: TB2 A2,TB2 B2- CNSL2, TB2 A2,TB2 B2- CNSL2   Contact
  • [26] PCA504A264FF WIRING ASSY Contact Notes: PWB1 CNS1, PWB1 CNS1   Contact
  • [27] PCB504A384G WIRING ASSY Contact Notes: PWB1 CNM- 52X2 5,52X2 6, PWB1 CNM- 52X2 5,52X2 6   Contact
  • [28] PCB504A357D WIRING ASSY Contact Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1- PWB2 CNI2   Contact
  • [29] PCB504A384AA WIRING ASSY Contact Notes: 52X1 5,52X1 6- PWB2 CNR, 52X1 5,52X1 6- PWB2 CNR   Contact
  • [30] PCB504A357M WIRING ASSY Contact Notes: IPM P,IPM N- PWB2 CAN, IPM P,IPM N- PWB2 CAN   Contact
  • [31] PCB504A384N WIRING ASSY Contact Notes: PWB1 CNA1- PWB4 CNA3   Contact
  • [32] PCB504A384M WIRING ASSY Contact Notes: PWB1 CNA2- PWB4 CNA4   Contact
  • [33] PCB504A384T WIRING ASSY In Stock Notes: PWB3 NO,E- PWB3 CN1, PWB3 No,E-PWB3 CN1
  • [34] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [35] PCB011G013D LABEL,WIRING Contact   Contact
  • [36] PCB011G013F LABEL,WIRING Contact   Contact
  • [37] PSB011F130WN LABEL,MODEL NAME Contact   Contact
SKU: FDC280KXZPE1 CONTROL AND PARTS SET Category:
