FDC280KXZE3/1 FAN ASSY

FDC280KXZE3/1 FAN ASSY

FDC280KXZE3/1 FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

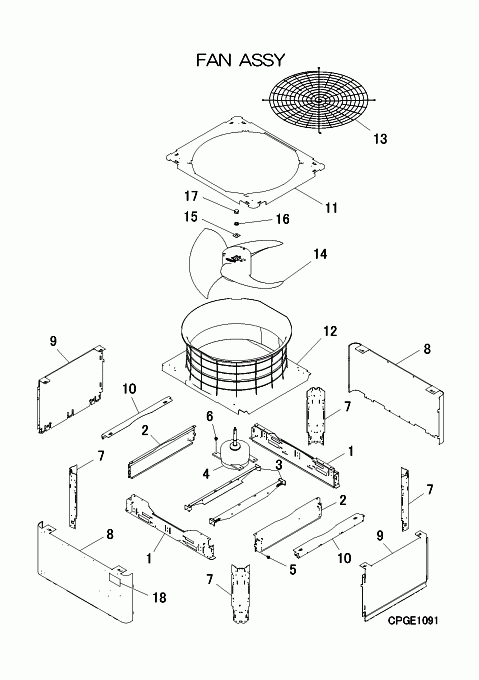

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB115A263A
FRAME,FAN
Contact
[2] Contact
PCB115A264
FRAME,FAN(S)
Contact
[3] Contact
PCB115A266
FRAME ASSY,MOTOR
Contact
[4] Contact
SSA512T175
MOTOR,DC
Contact
[5] Contact
SSA913D020C
SCREW,TAP & WASHER
Contact
Notes: M5X10
[6] In Stock
SSA911D207BB
BOLT&WA
Notes: M6X25
[7] Contact
PCB112A090
FRAME,CORNER(U)
Contact
[8] Contact
PCB122A215
PANEL ASSY,F(FAN)
Contact
[9] Contact
PCB123A141
PANEL ASSY,SIDE(FA
Contact
[10] Contact
PCB115A230
FRAME,TOP(S & L)
Contact
[11] Contact
PCB124A045
PANEL ASSY,TOP
Contact
[12] Contact
PCB433A060A
BELLMOUTH(U.S & L)
Contact
[13] Contact
PCB131A071
GUARD,FAN
Contact
[14] Contact
SSA431B266
FAN,PROPELLER
Contact
[15] Contact
MBC119A667
PLATE
Contact
[16] In Stock
W220G12
WASHER SUS
Notes: 1pc ONLY
[17] In Stock
SSA914H014C
NUTCAP SUS
Notes: 1pc Show Image
SSA914H014C
[18] Contact
RSA011H016J
LABEL,NOTICE
Contact
SKU: FDC280KXZE3/1 FAN ASSY Category:
