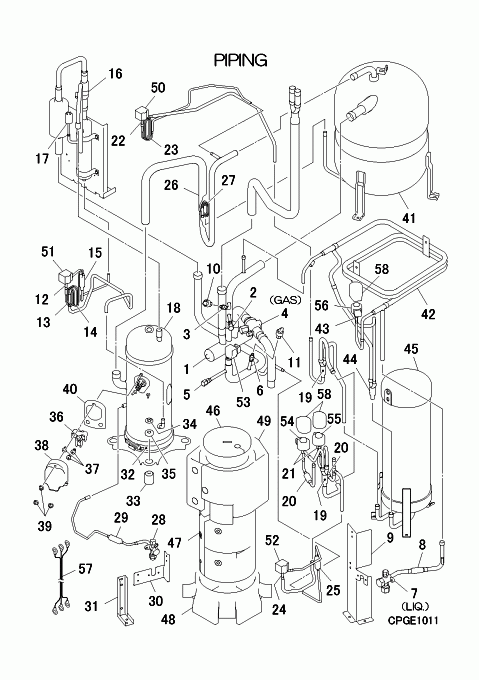

FDC280KXZE2/1 PIPING

FDC280KXZE2/1 PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C094
VALVE,S(4WAY)
Notes: 20S
[2] Contact
SSA327B072A
VALVE,SERVICE
Contact
[3] Contact
SSA327B076C
VALVE ASSY,SERVICE
Contact
[4] Contact
SSA381A758
VALVE,SERVICE
Contact
Notes: GAS
[5] Contact
SSA327B072B
VALVE,SERVICE
Contact
[6] Contact
SSA327B076D
VALVE ASSY,SERVICE
Contact
[7] Out of Stock
PCB381A076A
VALVE,SERVI
Notes: LIQ.
[8] Contact
SSA357A059D
STRAINER
Contact
[9] Contact
PCB116A729
BRACKET
Contact
[10] Out of Stock
SSA551D022F
SENSOR,LP
Notes: PSL Show Image
SSA551D022F
[11] In Stock
SSA551D024F
SENSOR,HP
Notes: PSH Show Image
SSA551D024F
[12] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV6, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[12-15] Contact
PCB382A255
VALVE ASSY
Contact
[12-16] Contact
PCB354A068
OIL SEPARATOR
Contact
[12-17] Contact
PCB354A067
SEPARATOR ASSY,OIL
Contact
[13] Contact
PCB315F153
CAPILLARY
Contact
Notes: !D1.0XD3.2 L500
[14] Contact
PCB315B831
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[15] In Stock
SSA357A053A
STRAINER
SSA357A053A
[16] Contact
SSA385A056
VALVE,CHECK
Contact
Substitute: SSA385A059
[17] In Stock
SSA532A085NB
SWITH HP
Notes: 63H1-1 Show Image
SSA532A085NB
[18] In Stock
AGT201C824FV
COMPRESSOR ASSY
Notes: GTC5150NC47BF, ***COMPRESSORS CANNOT BE RETURNED***
[19] In Stock
SSA357A054
STRAINER
SSA357A054
[20] Contact
SSA357A059P
STRAINER
Contact
[21] In Stock
SSA387F045
VALVE EXPAN
Notes: EEVH1,2 Show Image
SSA387F045
[22] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV6, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[22-23] Contact
PCB382A253
VALVE ASSY(2WAY)
Contact
[23] Contact
PCB315B817
CAPILLARY
Contact
Notes: !D1.3XD3.2 L500
[24] In Stock
SSA382A282
VALVE,S(2WAY)
Notes: SV6, SV6/ LENGTH 6.9CM Show Image
SSA382A282
[24-25] Contact
PCB382A293A
VALVE ASSY(2WAY)
Contact
[25] In Stock
SSA357A059A
STRAINER
[26-27] Contact
PCB321G133C
PIPE,SUCTION(2)
Contact
[27] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[28] Contact
PCB381A078
VALVE SERVI
Contact
[29] In Stock
SSA357A059A
STRAINER
[30] Contact
PCB116A851
BRACKET
Contact
[31] Contact
PCB116A854
BRACKET
Contact
[32] Contact
PCB541B014
HEATER ASSY(CRANK)
Contact
[33] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[34] In Stock
SSA914C033
NUT
Notes: 1pc
[35] In Stock
SSA915H042
WASHER
Notes: 1pc ONLY
[36] In Stock
ASA561B002
BLOCK,TERMINAL
[37] Out of Stock
SSA912A001
SCREW
Substitute: RE60179 Notes: M5X8, 1pc ONLY
[38] In Stock
AGT947K101
COVER,TERMINAL
[39] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[40] Contact
AGT151A101
GASKET
Contact
[41] Contact
SSA351A234P
ACCUMULATOR
Contact
[42] Contact
PCB303A041A
HEAT EXCH ASSY(LIQ
Contact
[43] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEVSC, EEV 'BODY' ONLY
[44] In Stock
SSA357A055
STRAINER
[45] Contact
PCB352A006G
RECEIVER ASSY
Contact
[46] In Stock
PCA151D034
INSULATO CO
[47] In Stock
PCB151D088B
INSULATION,COMP
[48] In Stock
PCB151D100A
INSULATION,COMP
[49] Contact
PCB151D117A
INSULATION,COMP
Contact
[50] Contact
PCB382F143A
COIL ASSY,SOLENOID
Contact
Notes: FOR SV1
[51] Contact
PCB382F143C
COIL ASSY,SOLENOID
Contact
Notes: FOR SV6
[52] Contact
PCB382F143F
COIL ASSY,SOLENOID
Contact
Notes: FOR SV11
[53] Contact
PCB382F143G
COIL ASSY,SOLENOID
Contact
Notes: FOR 20S
[54] In Stock
SSA382F212Z
COIL,SOLENOID
Notes: FOR EEVH1 Show Image
SSA382F212Z
[55] In Stock
SSA382F212AA
COIL,SOLENOID
Notes: FOR EEVH2 Show Image
SSA382F212AA
[56] Contact
SSA382F210AZ
COIL,SOLENOID
Contact
Notes: FOR EEVSC
[57] Contact
PCB504A413BB
WIRING ASSY
Contact
Notes: FOR COMP.
[58] Contact
PCA151C011
COVER
Contact
SKU: FDC280KXZE2/1 PIPING Category:
