FDC280KXRE6 CONTROL AND PARTS SET

FDC280KXRE6 CONTROL AND PARTS SET

Available Parts

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB505A078KA PWB ASSY In Stock Notes: PWB1
  • [1-44] PCB501A215B CONTROL UNIT Contact   Contact
  • [2] PCB505A062AB PWB ASSY(INV.) In Stock Notes: PWB2-1,2, PWB2-1,2
  • [3] PCB505A035H PWB ASSY(N.F) In Stock Notes: PWB3 - NOISE FILTER, PWB3 Show Image
  • [4] SSA561B693L BLOCK,TERMINAL In Stock Notes: TB1, TB1
  • [5] SSA561B716AF BLOCK,TERMINAL Contact Notes: TB2, TB2   Contact
  • [6] SSA521A715A RELAY In Stock Notes: 52X1,52X2, 52X1-1,1-2,2-1,2-2
  • [7] SSA947B017 GROMMET Contact   Contact
  • [8] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [9] PCA552D003B KILLER,NOISE ASSY In Stock Show Image
  • [10] SSA552D040Y FILTER,NOISE In Stock Notes: FOR COMP.WIRING Show Image
  • [11] PCB008A120A TRANSISTOR In Stock Notes: IPM (INTELLIGENT POWER MODULE) / POWER TRANSISTOR, IPM/TM
  • [12] PCB008A121A DIODE STACK In Stock Notes: AKA DIODE MODULE, DM Show Image
  • [13] SSA553A379 RESISTOR In Stock Notes: 15O (OHM), R1-1,2,R2-1,2 Show Image
  • [14] SSA551A192P SENSOR ASSY In Stock Notes: THO-P1, THO-P1 Show Image
  • [15] PCB555B003C VARISTOR ASSY In Stock Show Image
  • [16] SSA552F694 CAPACITOR Out of Stock Notes: 1250V 2.2UF (D.P)
  • [17] PCB438A032A DUCT ASSY Contact   Contact
  • [18] SSA554B097 REACTOR In Stock Notes: L1-1,2,L2-1,2
  • [19] SSA554B073 REACTOR In Stock Notes: L3 Show Image
  • [20] SSA552F427AK CAPACITOR In Stock Notes: 4700 MICRO FARADS, C1-1,C2-1,C1-2,C2-2 Show Image
  • [21] SSA553A380 RESISTOR In Stock Notes: 30 KO (KILO-OHM), R1-3,4,R2-3,4
  • [22] PCB511A006F MOTOR ASSY, In Stock

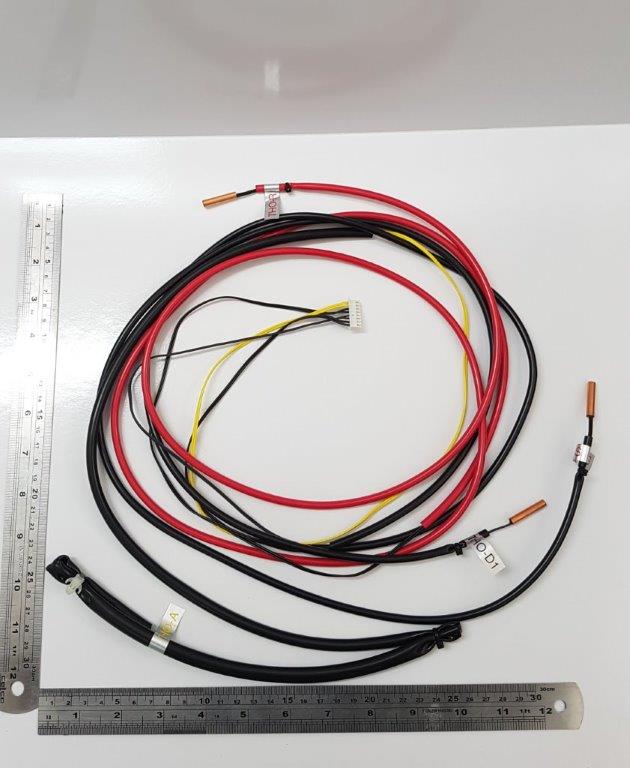

  • [23] PCB551A031 SENSOR ASSY In Stock Notes: THO-A,D1,R1,S, THO-A,D1,R1,S Show Image
  • [24] PSA551A015B SENSOR ASSY In Stock Notes: THO-C1, THO-C1
  • [25] PCB551A031G SENSOR ASSY In Stock Notes: THO-H, THO-H Show Image
  • [26] PCB551A031H SENSOR ASSY In Stock Notes: THO-R2, THO-R2 Show Image
  • [27] PSA551A015J SENSOR ASSY In Stock Notes: THO-R3, THO-R3
  • [28] PSA551A015K SENSOR ASSY In Stock Notes: THO-R4
  • [29] PSA551A015L SENSOR ASSY In Stock Notes: THO-SC Show Image
  • [30] PCB504A308F WIRING ASSY In Stock Notes: DM1 G,DM1 K- PWB2-1 CNRDM2 G,DM2 K- PWB2-2 CNR, DM1 G,DM1 K- PWB2-1 CNRDM2 G,DM2 K- PWB2-2 CNR Show Image
  • [31] PCB504A308G WIRING ASSY In Stock Notes: IPM1 P,IPM1 N- PWB2-1 CANIPM2 P,IPM2 N- PWB2-2 CAN, IPM1 P,IPM1 N- PWB2-1 CANIPM2 P,IPM2 N- PWB2-2 CAN
  • [32] PCB504A284L WIRING ASSY Contact Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1- PWB2 CNI2   Contact
  • [33] PCB504A308AF WIRING ASSY Contact Notes: TB2 A1,TB2 B1- PWB1 CNX1, TB2 A1,TB2 B1- PWB1 CNX1   Contact
  • [34-36] PCB504A308AG WIRING ASSY Contact Notes: PWB1 CNA1 CNA3-, PWB1 CNA1 CNA3-   Contact
  • [35] SSA564A112 FUSE In Stock Notes: 5A
  • [36] RWC564B002 HOLDER,FUSE In Stock Show Image
  • [37] PCB504A284BB WIRING ASSY Contact Notes: PWB1 CNS1, PWB1 CNS1   Contact
  • [38] PCB504A284BC WIRING ASSY In Stock Notes: PWB1 CNS2, PWB1 CNS2 Show Image
  • [39] PCB504A295 WIRING ASSY Contact Notes: TB2 A1,TB2 B1- CNSL1, TB2 A1,TB2 B1- CNSL1   Contact
  • [40] PCB504A295B WIRING ASSY Contact Notes: TB2 A2,TB2 B2- CNSL2, TB2 A2,TB2 B2- CNSL2   Contact
  • [41] PCB504A308AW WIRING ASSY Contact Notes: 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1, 52X1-2 5,52X1-1 5,52X1-1 6,52X1-2 6- PWB1 CNM1   Contact
  • [42] PCB504A308BA WIRING ASSY Contact Notes: PWB1 CNN8- FMC1, PWB1 CNN8- FMC1   Contact
  • [43] PCB504A284AP WIRING ASSY Contact Notes: PWB1 CNG1, PWB1 CNG1   Contact
  • [44] PCB504A284AR WIRING ASSY Contact Notes: PWB1 CNG2, PWB1 CNG2   Contact
  • [45-47] PCB142A445C COVER ASSY(CONTROL Contact   Contact
  • [46] PCB011G009C LABEL,WIRING Contact Notes: !BACK ATTACHMENT, !BACK ATTACHMENT   Contact
  • [47] PCB011G009AA LABEL,WIRING Contact Notes: !SURFACE ATTACHMENT, !SURFACE ATTACHMENT   Contact
  • [48] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [49] PSB011F021FB LABEL,MODEL NAME Contact   Contact
SKU: FDC280KXRE6 CONTROL AND PARTS SET Category:
