FDC280KXRE6/1 PIPING

Name: FDC280KXRE6/1 PIPING
SKU: FDC280KXRE6/1 PIPING
Availability: InStock

FDC280KXRE6/1 PIPING

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

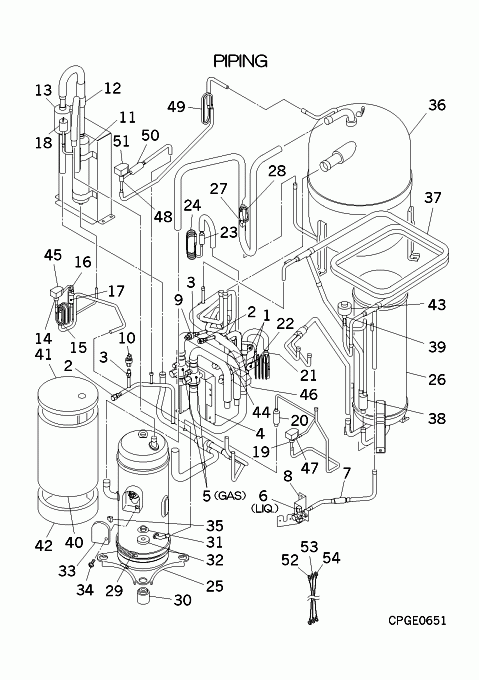

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

SSA382C096A

VALVE, S(4WAY)

Notes: 20S,20SL, Reversing Valve Body

[2] In Stock

SSA327B067

VALVE,SERVICE

Show Image

[3] Contact

PCA327B056A

VALVE ASSY,SERVICE

Contact

Substitute: SSA327B071D

[4] Contact

PCB116A578

BRACKET

Contact

[5] In Stock

SSA381A855

SERVICE VALVE

Notes: GAS Show Image

[6] Contact

PCB381A074

VALVE,SERVICE(3/8"

Contact

Notes: LIQ.

[7] In Stock

SSA357A007A

STRAINER

Show Image

[9] In Stock

SSA551D022V

SENSOR,LP

Notes: PSL

[10] In Stock

SSA551D024A

SENSOR HP

Notes: HIGH PRESSURE TRANSDUCER, HIGH PRESSURE TRANSDUCER - PSH Show Image

[11] Contact

PCB325A007

PIPE,SHELL

Contact

[11-13] Contact

PCB354A041

OIL SEPARATOR

Contact

[11-18] Contact

PCB354A040B

SEPARATOR ASSY,OIL

Contact

[12] Contact

SSA385A051

VALVE,CHECK

Contact

[13] Contact

SSA325A001CG

PIPE,SHELL

Contact

[14] In Stock

SSA382A219

VALVE(2WAY)

Notes: SV, LENGTH 7.5CM Show Image

[14-17] Contact

PCB321F943

PIPE ASSY

Contact

[15] Contact

PCB315B831

CAPILLARY

Contact

Notes: !D2.2XD3.2 L340

[16] Contact

PCB315B801A

CAPILLARY

Contact

Notes: !D1.1XD3.2 L500

[17] Contact

SSA357A048A

STRAINER

Contact

[18] In Stock

SSA532A085NA

SWITCH, HP

Notes: 63H1-1,2

[19] In Stock

SSA382A249A

VALVE,S(2WAY)

Notes: SV, SV1 Show Image

[20] In Stock

SSA357A059T

STRAINER

Show Image

[21] In Stock

SSA357A005C

STRAINER

Show Image

[21-22] In Stock

PCB321F270

PIPE ASSY

[22] Contact

PCB315B812

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[23] In Stock

SSA357A005C

STRAINER

Show Image

[23-24] In Stock

PCB321F270A

PIPE ASSY

[24] Contact

PCB315B812A

CAPILLARY

Contact

Notes: !D1.0XD2.0 L1000

[25] In Stock

AGT201B727HB

COMPRESSOR

Notes: GTC5150NH45K, ***COMPRESSORS CANNOT BE RETURNED***

[26] In Stock

SSA352A121P

RECEIVER

Notes: LIQUID RECIEVER

[27-28] Contact

PCB321F658B

PIPE,SUCTION(2)

Contact

[28] In Stock

PCB315B303D

CAPILLARY

Notes: !D2.2XD3.2 L300 Show Image

[29] In Stock

PCA541B031

HEATER ASSY(CRANK)

Show Image

[30] In Stock

SSA941C356

CUSHION,RUBBER

Notes: 1pc only Show Image

[31] In Stock

SSA914C033

NUT

Notes: 1pc

[32] In Stock

SSA915H042

WASHER

Notes: 1pc ONLY Show Image

[33] Out of Stock

PCB008A195

PARTS SET

Notes: Includes Cover, Nuts x3 & Gasket Show Image

[34] Out of Stock

H051D05X008

SCREW

Notes: M5X8, 1pc ONLY

[35] Out of Stock

ASA561B002

BLOCK,TERMINAL

Substitute: RZ01208

[36] In Stock

SSA351A228F

ACCUMULATOR

[37] In Stock

PCB303A011

HEAT LIQ

[38] In Stock

SSA357A024C

STRAINER

Show Image

[39] In Stock

SSA387F051

VALVE,BODY(EXP)

Notes: EEV, 'BODY' ONLY. Does NOT include coil

[40] Contact

PCB151D088A

INSULATION,COMP

Contact

[41] In Stock

PCA151D034

INSULATO CO

[42] Contact

PCB151D100

INSULATIO

Contact

[43] Contact

SSA382F210AZ

COIL,SOLENOID

Contact

Notes: FOR EEVSC

[44] Contact

PCB382F119M

COIL ASSY,SOLENOID

Contact

Notes: FOR 20S

[46] In Stock

PCB382F119P

COIL ASSY,SOLENOID

Notes: FOR 20SL Show Image

[47] In Stock

PCB382F119G

COIL ASSY,SOLENOID

Notes: FOR SV11 Show Image

[48] Contact

SSA382A273

VALVE,S(2WAY)

Contact

Substitute: SSA382A254 Notes: SV13 or SV4, SV13

[48-50] Contact

PCB382A203A

VALVE ASSY(2WAY)

Contact

[49] Contact

PCB315B842

CAPILLARY

Contact

Notes: !D3.0XD4.0 L500

[50] In Stock

SSA357A005A

STRAINER

Show Image

[51] In Stock

PCB382F119K

COIL ASSY,SOLENOID

Notes: FOR SV13 Show Image

[52] Contact

PCA504A262HR

WIRING ASSY

Contact

Notes: !CM1 U

[53] Contact

PCA504A262KR

WIRING ASSY

Contact

Notes: !CM1 V

[54] Contact

PCA504A262MR

WIRING ASSY

Contact

Notes: !CM1 W

SKU: FDC280KXRE6/1 PIPING Category: Uncategorised
