FDC280KXE6/A FAN AND COMPRESSOR

FDC280KXE6/A FAN AND COMPRESSOR

Available Parts

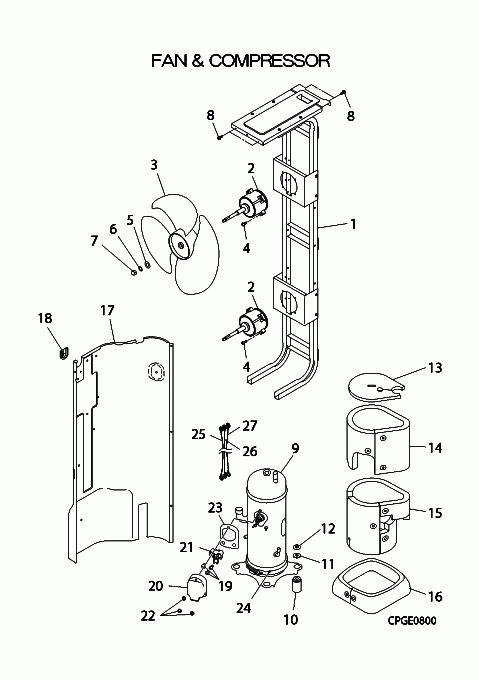

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB116A631D BASE,MOTOR Contact   Contact
  • [2] SSA512T088 MOTOR,DC In Stock Substitute: PCB512T005
  • [3] SSA431B242C FAN, PROPELLER In Stock
  • [4] SSA911D207BB BOLTANDWA6X25 Contact   Contact
  • [5] W200G14 WASHER In Stock Notes: 1PC ONLY
  • [6] W220G12 WASHER SUS In Stock Notes: 1PC ONLY
  • [7] SSA914H014C NUTCAP SUS In Stock Notes: 1PC
  • [8] SSA913D020A SCREW,TAP AND WASHER In Stock Substitute: SSA913D020D Notes: 1PC ONLY, M5X14
  • [9] AGT201B727HA COMPRESSOR Out of Stock Substitute: PCB201A012G Notes: ***COMPRESSORS CANNOT BE RETURNED***, GTC5150NH40K
  • [10] SSA941C285G CUSHION RUB In Stock
  • [11] SSA941C289A CUSHION,RUBBER Contact   Contact
  • [12] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [13] PCA151D034D INSULATION,COMP Contact   Contact
  • [14] PCB151D105B INSULATION,COMP Contact   Contact
  • [15] PCB151D105C INSULATION,COMP In Stock
  • [16] PCB151D107 INSULATION,COMP In Stock
  • [17-18] PCB141A038G PLATE ASSY,BAFFLE Contact   Contact
  • [18] SSA947B027A GROMMET Contact   Contact
  • [19] SSA912A001 SCREW Contact Substitute: RE60179 Notes: 1PC ONLY, M5X8   Contact
  • [20] AGT947K101 COVER,TERMINAL Out of Stock
  • [21] ASA561B002 BLOCK,TERMINAL In Stock Substitute: RZ01208
  • [22] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [23] AGT151A101 GASKET Contact   Contact
  • [24] PCA541B021AR HEATER ASSY(CRANK) In Stock
  • [25] PCA504A262JF WIRING ASSY In Stock Notes: !U, !U
  • [26] PCA504A262LF WIRING ASSY In Stock Notes: !V, !V
  • [27] PCA504A262NF WIRING ASSY In Stock Notes: !W, !W
SKU: FDC280KXE6/A FAN AND COMPRESSOR Category:
