FDC280KXE6/1 CONTROL AND PARTS SET

Name: FDC280KXE6/1 CONTROL AND PARTS SET
SKU: FDC280KXE6/1 CONTROL AND PARTS SET
Availability: InStock

FDC280KXE6/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCB505A145PC

PWB ASSY CONTROL

Notes: PWB1, PWB1 - CONTROL BOARD

[1-40] Contact

PCB501A203AB

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PCB505A062AC

PWB ASSY (INV.)

Notes: PWB2, PWB2 - Power Transitor / IPM sold seperately = PCB008A120A Show Image

[3] In Stock

PCB505A035H

PWB ASSY(N.F)

Notes: PWB3, PWB3‚ - NOISE FILTER Show Image

[4] In Stock

PCB551A029G

SENSOR ASSY

Notes: THO-A,S,D,R1 Show Image

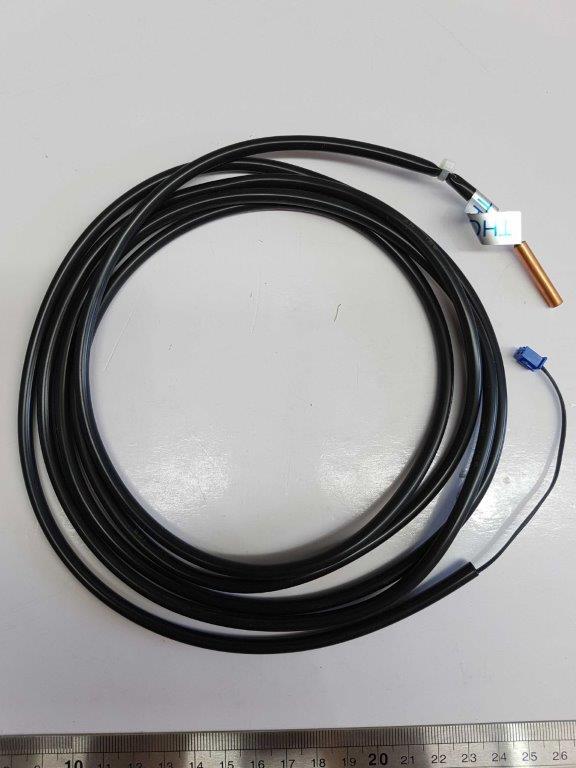

[5] In Stock

PCB551A029D

SENSOR ASSY

Notes: THO-C, THO-C‚ / LENGTH 231CM Show Image

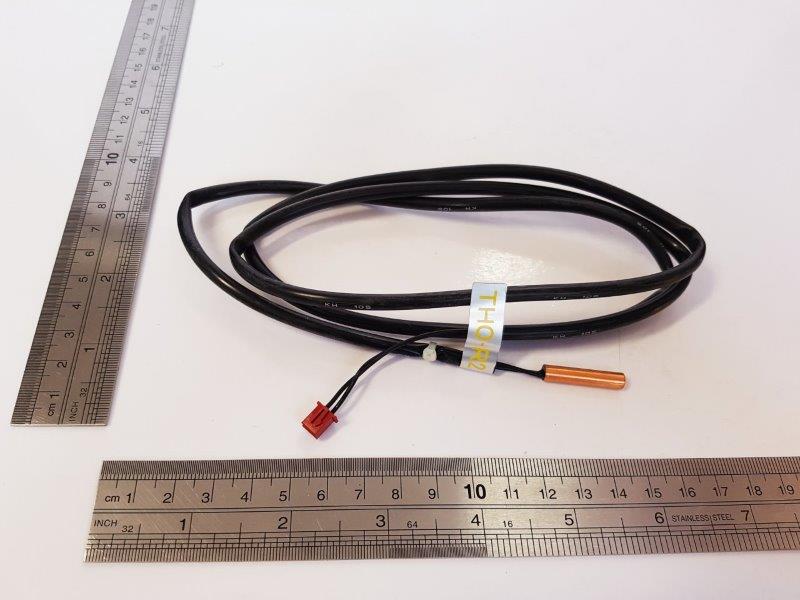

[6] In Stock

PCB551A029A

SENSOR ASSY

Notes: THO-R2 Show Image

[7] In Stock

PCB551A029B

SENSOR ASSY

Notes: THO-H Show Image

[8] In Stock

PCB551A029C

SENSOR ASSY

Notes: THO-SC

[9] In Stock

SSA551A192Z

SENSOR ASSY

Notes: THO-TR

[10] In Stock

SSA554B044F

REACTOR

Notes: L1

[11] In Stock

SSA554B073

REACTOR

Notes: L3 Show Image

[12] In Stock

SSA553A379

RESISTOR

Notes: R1-1,2,R2-1,2, SOLD INDIVIDUALLY - 15O (Ohm) Show Image

[13] In Stock

SSA553A380

RESISTOR

Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[14] In Stock

SSA552F427AK

CAPACITOR

Notes: C1-1,C2-1,C1-2,C2-2, 4700 MICRO FARADS Show Image

[15] In Stock

SSA561B693L

BLOCK,TERMINAL

Notes: TB1

[17] Out of Stock

SSA564B076

HOLDER,FUSE

Show Image

[18] In Stock

SSA561B693W

BLOCK,TERMI

Notes: TB2 Show Image

[19] In Stock

PCB008A120A

TRANSISTOR

Notes: IPM/TM, IPM (Intelligent Power Module) / POWER TRANSISTOR Show Image

[20] In Stock

PCB008A121A

DIODE STACK

Notes: DM, aka DIODE MODULE Show Image

[21] In Stock

SSA521A715A

RELAY

Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2 - 200-240VAC ***SOLD INDIVIDUALLY***

[22] In Stock

PCB555B003A

VARISTOR

Show Image

[23] In Stock

SSA552F694

CAPACITOR

Notes: 1250v 2.2uf. ***SOLD INDIVIDUALLY***

[24] In Stock

PCA552D003B

KILLER,NOISE ASSY

Show Image

[25] Contact

SSA947B004

GROMMET

Contact

[26] In Stock

SSA552D040Y

FILTER,NOISE

Notes: FOR COMP.WIRING Show Image

[27] Contact

PCB504A284L

WIRING ASSY

Contact

Notes: PWB1 CNI1- PWB2 CNI2

[28] Contact

PCB504A284J

WIRING ASSY

Contact

Notes: TB2 A,TB2 B- PWB1 CNX1

[29] Contact

PCB504A284K

WIRING ASSY

Contact

Notes: 63H-1 1,63H-1 2- PWB1 CNQ1

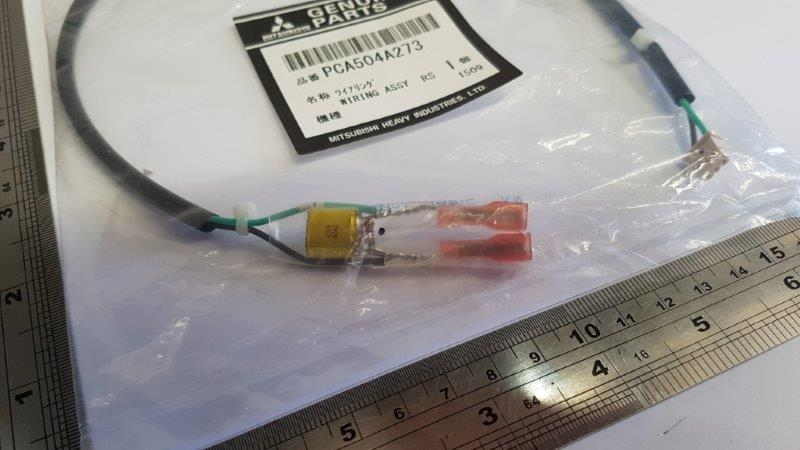

[30] Out of Stock

PCA504A273

WIRING ASSY

Substitute: OUT OF PRODUCTION Notes: DM G,DM K-PWB2 CNR, OUT OF PRODUCTION. DM1 G,DM1 K- PWB2-1 CNR Show Image

[31] Contact

PCB504A284AP

WIRING ASSY

Contact

Notes: PWB1 CNG1

[32] Contact

PCB504A284AR

WIRING ASSY

Contact

Notes: PWB1 CNG2

[33] Contact

PCB504A284BF

WIRING ASSY

Contact

Notes: TB2 A1,TB2 B1- CNSL1

[34] Contact

PCB504A284BG

WIRING ASSY

Contact

Notes: TB2 A2,TB2 B2- CNSL2

[35] Contact

PCB504A284AS

WIRING ASSY

Contact

Notes: C1 +,C1 -- PWB2 CAN

[36] Contact

PCB504A284AV

WIRING ASSY

Contact

Notes: L3 2,PWB3 NO,PWB3 L2O- PWB1 CAW

[37] Contact

PCB504A284BA

WIRING ASSY

Contact

[38] Contact

PCB504A284BB

WIRING ASSY

Contact

Notes: PWB1 CNS1

[39] In Stock

PCB504A284BC

WIRING ASSY

Notes: PWB1 CNS2 Show Image

[40] Contact

PCB504A284BK

WIRING ASSY

Contact

Notes: 52X2 5,52X1 5,52X1 6,52X2 6- PWB1 CNM1

[41] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[42] Contact

PCB011G008B

LABEL,WIRING

Contact

[43] Contact

PCB011G008C

LABEL,WIRING

Contact

[44] Contact

PSA012B728

MANUAL,INSTRUCTION

Contact

[45] Contact

PSB011F021AB

LABEL,MODEL NAME

Contact

SKU: FDC280KXE6/1 CONTROL AND PARTS SET Category: Uncategorised
