FDC250VS FAN AND COMPRESSOR

FDC250VS FAN AND COMPRESSOR

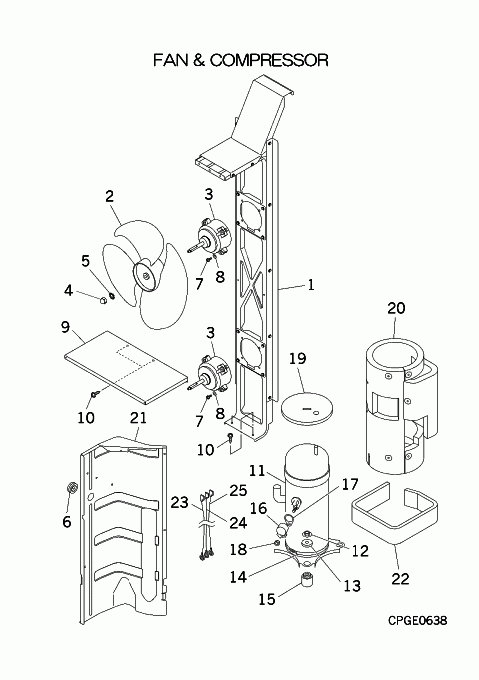

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCA116A109M
BASE,MOTOR
Contact
[2] In Stock
SSA431B228
FAN, PROPELLER
Notes: CONDENSER FAN BLADE
[3] In Stock
SSA512T076BA
MOTOR,DC
[4] In Stock
SSA914H014A
NUT
Notes: 1pc Show Image
SSA914H014A
[5] In Stock
SSA915F002D
WASHER
Notes: 1pc ONLY Show Image
SSA915F002D
[6] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[7] In Stock
SSA913C031A
SCREW TAP
Notes: 1pc ONLY Show Image
SSA913C031A
[8] In Stock
W200H06
WASHER
Notes: 1pc ONLY Show Image
W200H06
[9] Contact
PCA141A096
PLATE,BAFFLE
Contact
[10] In Stock
SSA913D020
SCREW TAP
Notes: M5X10, 1pc ONLY Show Image
SSA913D020
[11] In Stock
AGT201A727DN
COMPRESSOR ASSY
Notes: GTC5150ND70K, ***COMPRESSORS CANNOT BE RETURNED***
[12] In Stock
SSA914C033
NUT
Notes: 1pc
[13] In Stock
SSA941C289
CUSHION RU
Notes: UPPER Show Image
SSA941C289
[14] Contact
PCA541B021AN
HEATER ASSY(CRANK)
Contact
[15] In Stock
SSA941C285G
CUSHION RUB
Notes: LOWER, LENGTH 6CM Show Image
SSA941C285G
[16] In Stock
AGT947K100
COVER TERMINAL
AGT947K100
[17] In Stock
AGT932C100
GASKET COVER
AGT932C100
[18] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[19] Contact
PCA151D034A
INSULATO CO
Contact
Notes: UPPER
[20] Contact
PCA151D075A
INSULATION,COMP
Contact
[21] Contact
PCA141A080K
PLATE ASSY,BAFFLE
Contact
[22] Contact
PCB151D107A
INSULATION,COMP
Contact
[23] In Stock
PCA504A247DJ
HARNESS ASSY
Notes: !U Show Image
PCA504A247DJ
[24] In Stock
PCA504A247DK
HARNESS ASSY
Notes: !V Show Image
PCA504A247DK
[25] In Stock
PCA504A247DL
HARNESS ASSY
Notes: !W
