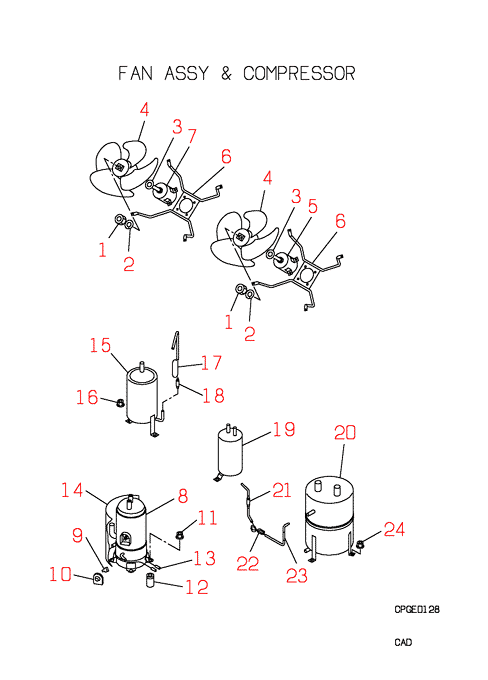

FDC2501HKXRE2 FAN AND COMPRESSOR

FDC2501HKXRE2 FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
N451A12
NUT
Contact
Notes: 1pc
[2] Contact
W220R12
WASHER
Contact
Notes: 1pc ONLY
[3] Contact
W200H14
WASHER
Contact
Notes: 1pc ONLY
[4] In Stock
SSA431B105A
PROPELLER F
[5] In Stock
SSA511A611M
FAN,MOTOR
Notes: RIGHT, RIGHT D:6202ZZC3 N:6201ZZC3
[6] Contact
PCB116A040
BASE M0T0R
Contact
[7] In Stock
SSA511A611L
FAN,MOTOR
Notes: LEFT, LEFT D:6202ZZC3 N:6201ZZC3
[8] In Stock
ALA201A012A
RS5570EAV31
Notes: RS5570EAV31, ***COMPRESSORS CANNOT BE RETURNED***
[9] In Stock
ASA561B002
BLOCK,TERMINAL
[10] In Stock
PCB008A195
PARTS SET
Notes: Includes Cover, Nuts x3 & Gasket Show Image
PCB008A195
[11] Contact
SSA914C017
NUT FLANGE
Contact
Notes: 1pc
[12] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[13] In Stock
PCB541B002C
HEATER CRAN
Show Image
PCB541B002C
[14] Contact
PCB151D028
INSUL CONP
Contact
[15] Contact
SSA354A012
SEPARATOR
Contact
[16] In Stock
SSA914C005B
NUT FLANGE
Notes: 1pc, FOR RECEIVER
[17] Contact
P210V18X500
CAPILLARY
Contact
Notes: !D1.8XD3.2 L500
[17-18] In Stock

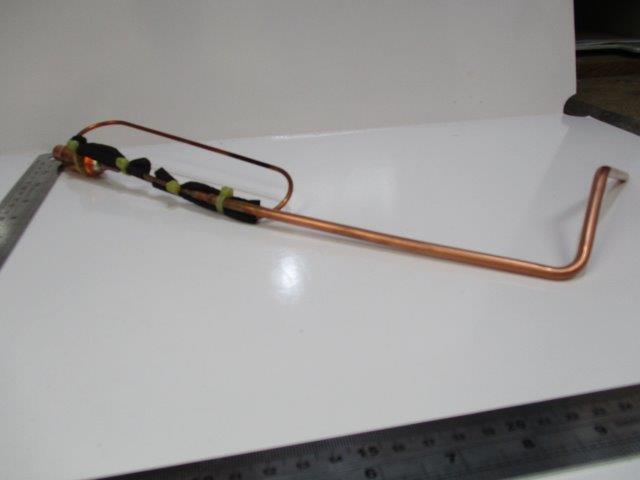

PCB315B087A
CAPILA,ASSY
Show Image
PCB315B087A
[18] Contact
SSA357A010D
STRAINER
Contact
[19] In Stock
SSA352A078A
RECEIVER ASSY
[20] Contact
SSA351A087
ACCUMLATOR
Contact
[21] In Stock
SSA357A059B
STRAINER
[21-23] Contact
PCB321A532
PIPE(REF)
Contact
[22] Contact
P210V20X300
CAPILA,TUBE
Contact
Substitute: P210V20A500 Notes: !D2.0XD3.2 L300
[23] In Stock
SSA385A052
VALVE,CHECK
Show Image
SSA385A052
[24] Contact
SSA914C005C
NUT
Contact
Notes: 1pc, FOR ACCUMULATOR
SKU: FDC2501HKXRE2 FAN AND COMPRESSOR Category:
