FDC224KXZWE1 HEAT EXCH. ASSY

FDC224KXZWE1 HEAT EXCH. ASSY

Available Parts

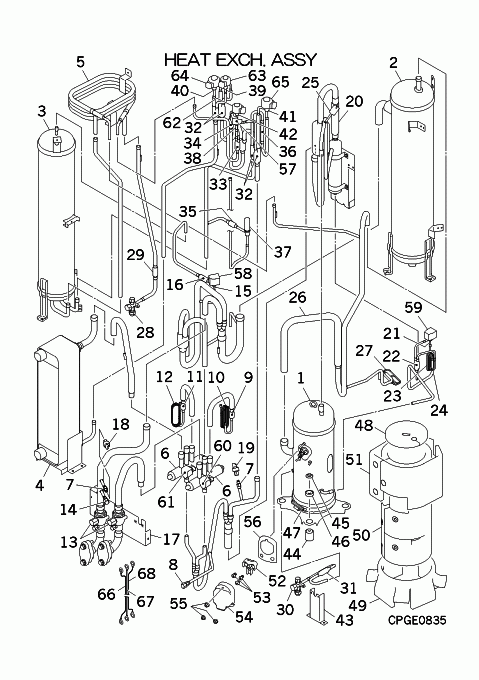

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] AGT201B827HD COMPRESSOR In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, GTC5150NH48L
  • [2] SSA351A250 ACCUMULATOR Contact   Contact
  • [3] SSA352A139 RECEIVER ASSY Contact   Contact
  • [4] PCB312D012 HEAT EXCH ASSY(W) Contact   Contact
  • [5] PCB303A036 HEAT EXCH ASSY(LIQ Contact   Contact
  • [6] SSA382C096 4 WAY VALVE In Stock Substitute: SSA382C096A Notes: FOR KXRE4 UNITS NEEDS SOLENOID PCB382F119BL ALSO, 20SH,20SM
  • [7] PCA327B056A VALVE ASSY,SERVICE Contact Substitute: SSA327B071D   Contact
  • [8] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [9] SSA357A051B STRAINER In Stock Show Image
  • [9-10] PCB321G465 PIPE ASSY(E) Contact   Contact
  • [10] PCB315F088 CAPILLARY Contact Notes: !D0.9XD2.0 L1000   Contact
  • [11] SSA357A051B STRAINER In Stock Show Image
  • [11-12] PCB321G468 PIPE ASSY(E) Contact   Contact
  • [12] PCB315F088 CAPILLARY Contact Notes: !D0.9XD2.0 L1000   Contact
  • [13] SSA381A748A VALVE,SERVICE In Stock Notes: GAS Show Image
  • [14] SSA327B067 VALVE,SERVICE In Stock Show Image
  • [15] SSA382A249A VALVE,S(2WAY) In Stock Notes: SV1, SVR Show Image
  • [16] SSA357A005AC STRAINER In Stock Show Image
  • [17] PCB116B112 BRACKET Contact   Contact
  • [18] SSA551D022C SENSOR LP In Stock Notes: LOW PRESSURE TRANSDUCER, PSL Show Image
  • [19] SSA551D024A SENSOR HP In Stock Notes: HIGH PRESSURE TRANSDUCER - PSH, PSH Show Image
  • [20] SSA385A051 VALVE,CHECK Contact   Contact
  • [20-24] PCB354A062 SEPARATOR,OIL Contact   Contact
  • [20-25] PCB354A061 SEPARATOR ASSY,OIL Contact   Contact
  • [21] SSA382A219 VALVE(2WAY) In Stock Notes: SVO
  • [21-24] PCB382A244 VALVE ASSY Contact   Contact
  • [22] SSA357A048D STRAINER Contact   Contact
  • [23] PCB315B997 CAPILLARY Contact Notes: !D2.2XD3.2 L340   Contact
  • [24] PCB315F008 CAPILLARY Contact Notes: !D1.1XD3.2 L500   Contact
  • [25] SSA532A085NB SWITH HP In Stock Notes: 63H1 Show Image
  • [26-27] PCB321G436 PIPE,SUCTION Contact   Contact
  • [27] PCB315F087 CAPILLARY Contact Notes: !D2.2XD3.2 L300   Contact
  • [28] PCB381A074 VALVE,SERVICE(3/8 Contact Notes: LIQ., LIQ.   Contact
  • [29] SSA357A007A STRAINER In Stock Substitute: SSA357A005AH Show Image
  • [30] PCB381A074 VALVE,SERVICE(3/8 Contact Notes: LIQ.   Contact
  • [31] SSA357A005B STRAINER In Stock Show Image
  • [32] SSA357A024K STRAINER Contact   Contact
  • [33] SSA357A048D STRAINER Contact   Contact
  • [34] SSA357A005AC STRAINER In Stock Show Image
  • [35] SSA357A051A STRAINER In Stock Show Image
  • [36] SSA385A052 VALVE,CHECK In Stock Show Image
  • [37] SSA383D015 VALVE,DPR Contact   Contact
  • [38] SSA382A219 VALVE(2WAY) In Stock Notes: SVB
  • [39] SSA387F051 VALVE,BODY(EXP) In Stock Notes: EEV BODY, EEVW2
  • [40] SSA387F044A EXP VAL XP In Stock Notes: EXPANSION VALVE BODY ONLY, EEVW1 Show Image
  • [41] SSA387F050A VALVE,BODY(EXP) Contact Notes: EEVG   Contact
  • [42] SSA387F047 VALVE EXPA In Stock Notes: EEV - VALVE BODY, EEVSC Show Image
  • [43] PCB116B042 BRACKET Contact   Contact
  • [44] SSA941C356 CUSHION,RUBBER In Stock
  • [45] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [46] SSA915H039A WASHER Contact Notes: 1PC ONLY   Contact
  • [47] PCA541B031 HEATER ASSY(CRANK) In Stock Show Image
  • [48] PCA151D034 INSULATO CO Contact   Contact
  • [49] PCB151D100 INSULATIO Contact   Contact
  • [50] PCB151D088B INSULATION,COMP Contact   Contact
  • [51] PCB151D118A INSULATION,COMP Contact   Contact
  • [52] ASA561B002 BLOCK,TERMINAL In Stock Substitute: RZ01208
  • [53] SSA912A001 SCREW Contact Substitute: RE60179 Notes: 1PC ONLY, M5X8   Contact
  • [54] AGT947K101 COVER,TERMINAL Out of Stock
  • [55] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [56] AGT151A101 GASKET Contact   Contact
  • [57] PCB382F133A COIL ASSY,SOLENOID Contact Notes: FOR SVB   Contact
  • [58] PCB382F133B COIL ASSY,SOLENOID Contact Notes: FOR SVR   Contact
  • [59] PCB382F133C COIL ASSY,SOLENOID Contact Notes: FOR SVO   Contact
  • [60] PCB382F133D COIL ASSY,SOLENOID Contact Notes: FOR 20SM   Contact
  • [61] PCB382F133F COIL ASSY,SOLENOID Contact Notes: FOR 20SH   Contact
  • [62] SSA382F228BA SENSOR ASSY In Stock Notes: FOR EEVH1, FOR EEVSC Show Image
  • [63] SSA382F210AZ COIL,SOLENOID Contact Notes: FOR EEVSC, FOR EEVW2   Contact
  • [64] SSA382F212AA COIL,SOLENOID In Stock Notes: FOR EEVH2, FOR EEVW1 Show Image
  • [65] SSA382F212AC COIL,SOLENOID Contact Notes: FOR EEVG   Contact
  • [66] PCA504A262HB WIRING ASSY Contact Notes: U   Contact
  • [67] PCA504A262KB WIRING ASSY Contact Notes: V   Contact
  • [68] PCA504A262MB WIRING ASSY Contact Notes: W   Contact
SKU: FDC224KXZWE1 HEAT EXCH. ASSY Category:
