FDC224KXZRE2/A PANEL ASSY

FDC224KXZRE2/A PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

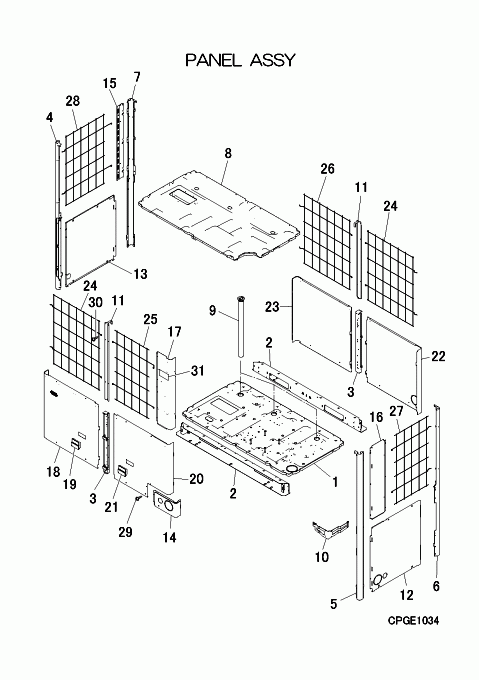

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB111A098A
BASE ASSY
Contact
[2] Contact
PCB115A203
STIFFENER
Contact
[3] Contact
PCB115A197
FRAME
Contact
[4] Contact
PCB112A071
FRAME
Contact
[5] Contact
PCB112A071A
FRAME
Contact
[6] Contact
PCB112A071B
FRAME
Contact
[7] Contact
PCB112A071C
FRAME
Contact
[8] Contact
PCB454A048
PAN ASSY,DRAIN
Contact
[9] In Stock
PCB423B002
HOSE ASSY,DRAIN
[10] Contact
PCB116B518A
BRACKET
Contact
[11] Contact
PCB115A199
FRAME(U)
Contact
[12] Contact
PCB123A135
PANEL ASSY,SIDE
Contact
[13] Contact
PCB123A135A
PANEL ASSY,SIDE
Contact
[14] Contact
PCB142A743
COVER,FRONT
Contact
[15] Contact
PCB122A172
PLATE,BAFFLE
Contact
[16] Contact
PCB122A176
PANEL,FRONT(U)
Contact
[17] Contact
PCB122A170B
PANEL,FRONT(U)
Contact
[18-19] Contact
PCB122A158
PANEL ASSY,FRONT
Contact
[19] In Stock
PCB944B006
HANDLE
[20-21] Contact
PCB122A158A
PANEL ASSY,FRONT
Contact
[21] In Stock
PCB944B006
HANDLE
[22] Contact
PCB122A158B
PANEL ASSY,FRONT
Contact
[23] Contact
PCB122A158C
PANEL ASSY,FRONT
Contact
[24] Contact
PCB131A056
GUARD,FIN
Contact
[25] Contact
PCB131A056A
GUARD,FIN
Contact
[26] Contact
PCB131A056B
GUARD,FIN
Contact
[27] Contact
PCB131A056C
GUARD,FIN
Contact
[28] Contact
PCB131A056D
GUARD,FIN
Contact
[29] In Stock
SSA913D020
SCREW TAP
Notes: M5X10, 1pc ONLY Show Image
SSA913D020
[30] In Stock
SSA913D020D
SCREW,TAP & WASHER
Notes: M5X14, 1pc ONLY, M5X14
[31] Contact
RSA011H016J
LABEL,NOTICE
Contact
