FDC224KXZPE1 CONTROL AND PARTS SET

FDC224KXZPE1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

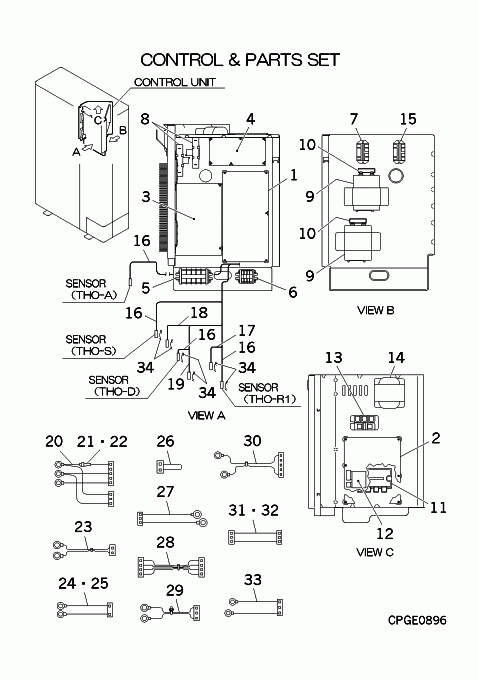

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A181FD
PWB ASSY (CONTROL)
Notes: PWB1 Show Image
PCA505A181FD
[1-33] Contact
PCB501A279
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PCB505A196FA
PWB ASSY(INVERTER)
Notes: PWB2, PWB2 - INVERTER BOARD - CONFIRM MODEL & SERVICE CODE - "FDCA160VS" has different boards
[3] In Stock
PCB505A268AB
PWB ASSY (N.F)
Notes: PWB3, PWB3 - Noise Filter PCB
[4] In Stock
PCB505A194B
PWB ASSY
Notes: PWB4, POWER BOARD
[5] In Stock
SSA561B693L
BLOCK,TERMINAL
Notes: TB1
[6] In Stock
SSA561B693W
BLOCK,TERMI
Notes: TB2 Show Image
SSA561B693W
[7] In Stock
SSA521A727
RELAY
Notes: 52X1-1,1-2,2-1,2-2, 52X1/ LENGTH 7CM Show Image
SSA521A727
[8] In Stock
SSA553A379
RESISTOR
Notes: R1-1,2,R2-1,2, SOLD INDIVIDUALLY - 15O (Ohm) Show Image
SSA553A379
[9] In Stock
SSA552F427AJ
CAPACITOR
Notes: C1,2, C1 400V 3900MF
[10] In Stock
SSA553A380
RESISTOR
Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image
SSA553A380
[11] In Stock
PCB008A213C
TRANSISTOR(POWER)
Notes: TM, IPM, Comes with heat paste and screws Show Image
PCB008A213C
[12] In Stock
SSA552F694
CAPACITOR
Notes: 1250v 2.2uf
[13] In Stock
PCB008A212A
DIODE(MODULE)
Notes: DM Show Image
PCB008A212A
[14] Out of Stock
SSA554B097A
REACTOR
Substitute: SSA554B146A Notes: L1-1,2,3, L1 Show Image
SSA554B097A
[15] In Stock
SSA521A715A
RELAY
Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2
[16] In Stock
PSA551A014R
SENSOR ASSY
Notes: THO-A,S,D,R1, THO-A,S,D,R1 / LENGTH 192CM Show Image
PSA551A014R
[17] In Stock
PCB551A029B
SENSOR ASSY
Notes: THO-H Show Image
PCB551A029B
[18] In Stock
PCB551A029M
SENSOR ASSY
Notes: THO-SC, THO-SC/ LENGTH 60CM Show Image
PCB551A029M
[19] In Stock
PSA551A023L
SENSOR ASSY
Notes: THO-C1, THO-C1/ LENGTH 130.5CM Show Image
PSA551A023L
[20-22] In Stock
PCB504A384
WIRING ASSY
Notes: PWB3 L1o,PWB3 No,PWB3 L2o- PWB1 CNW,PWB4 CNW1 Show Image
PCB504A384
[21] In Stock
SSA564A149AH
FUSE(CURRENT)
Notes: 5A Show Image
SSA564A149AH
[22] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[23] Contact
PCB504A357A
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- PWB1 CNX1
[24] Contact
PCB504A284BF
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- CNSL1
[25] Contact
PCB504A284BG
WIRING ASSY
Contact
Notes: TB2 A2,TB2 B2- CNSL2
[26] In Stock
PCA504A264FF
WIRING ASSY
Notes: PWB1 CNS1
[27] In Stock
PCB504A384G
WIRING ASSY
Notes: PWB1 CNM- 52X2 5,52X2 6
[28] Contact
PCB504A357D
WIRING ASSY
Contact
Notes: PWB1 CNI1- PWB2 CNI2
[29] Contact
PCB504A384AA
WIRING ASSY
Contact
Notes: 52X1 5,52X1 6- PWB2 CNR
[30] In Stock
PCB504A357M
WIRING ASSY
Notes: IPM P,IPM N- PWB2 CAN Show Image
PCB504A357M
[31] Contact
PCB504A384N
WIRING ASSY
Contact
Notes: PWB1 CNA1- PWB4 CNA3
[32] Contact
PCB504A384M
WIRING ASSY
Contact
Notes: PWB1 CNA2- PWB4 CNA4
[33] In Stock
PCB504A384T
WIRING ASSY
Notes: PWB3 No,E-PWB3 CN1, PWB3 No,E- PWB3 CN/ LENGTH 29.5CM Show Image
PCB504A384T
[34] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[35] Contact
PCB011G013D
LABEL,WIRING
Contact
[36] Contact
PCB011G013F
LABEL,WIRING
Contact
[37] Contact
PSB011F130WL
LABEL,MODEL NAME
Contact
SKU: FDC224KXZPE1 CONTROL AND PARTS SET Category:
