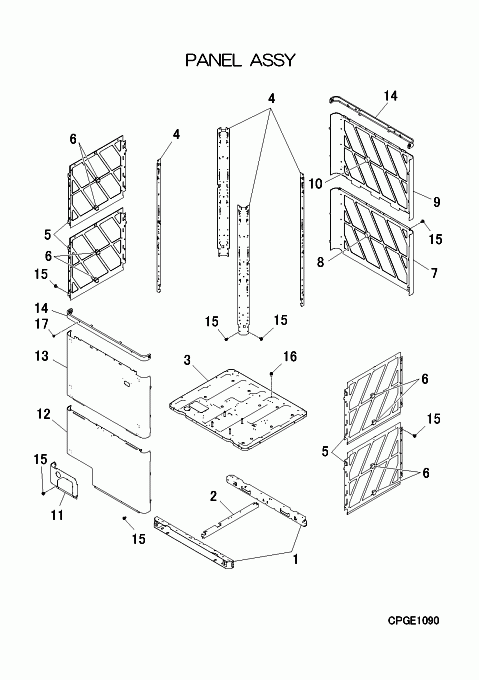

FDC224KXZE3/1 PANEL ASSY

FDC224KXZE3/1 PANEL ASSY

FDC224KXZE3/1 PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB115A207
STIFFENER ASSY
Contact
[2] Contact
PCB115A261
REINFORCEMENT
Contact
[3] Contact
PCB111A112
BASE ASSY
Contact
[4] Contact
PCB112A080
FRAME,CORNER(B)
Contact
[5-6] Contact
PCB131A080
GUARD,FIN(S)
Contact
[6] Contact
PCB941C016
CUSHION RUBBER
Contact
[7-8] Contact
PCB131A081A
GUARD,FIN(SMALL)
Contact
[8] Contact
PCB941C016
CUSHION RUBBER
Contact
[9-10] Contact
PCB131A081
GUARD,FIN(SMALL)
Contact
[10] Contact
PCB941C016
CUSHION RUBBER
Contact
[11] Contact
PCB142A881
COVER,FRONT
Contact
[12] Contact
PCB122A212
PANEL,FRONT(SMALL)
Contact
[13] Contact
PCB122A212A
PANEL,FRONT(SMALL)
Contact
[14] Contact
PCB129A024
ORNAMENT ASSY
Contact
[15] Contact
SSA913D020B
SCREW,TAP & WASHER
Contact
Notes: M5X10
[16] Contact
SSA911D202
BOLT & WASHER,CRS
Contact
Notes: M5X12, 1pc ONLY, M5X12
[17] Contact
SSA913B044
SCREW,TAP
Contact
Notes: 4X8
SKU: FDC224KXZE3/1 PANEL ASSY Category:
