FDC224KXZE3/1 HEAT EXCH. AND COMPRESSOR

FDC224KXZE3/1 HEAT EXCH. AND COMPRESSOR

FDC224KXZE3/1 HEAT EXCH. AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

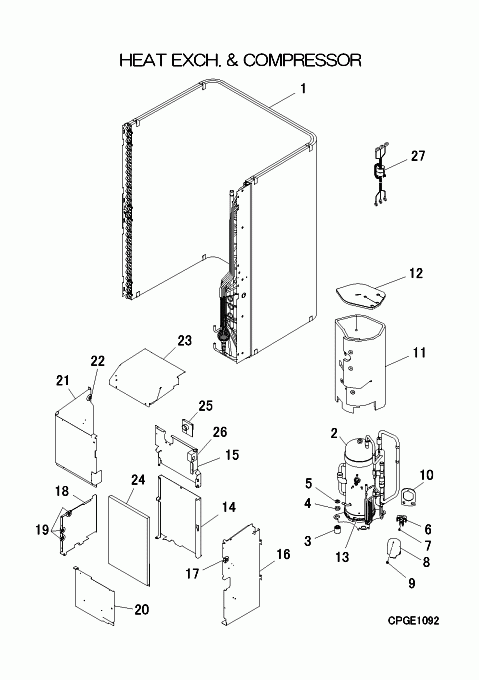

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB301A272A
HEAT EXCH ASSY(AIR
Contact
[2] Contact
PCB008A280A
COMPRESSOR ASSY
Contact
Notes: ONLY FOR SUPPLY PARTS GTC5150SC47CF
[3] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[4] In Stock
SSA915H042
WASHER
Notes: 1pc ONLY Show Image
SSA915H042
[5] In Stock
SSA914C033
NUT
Notes: 1pc
[6] Contact
PCB561B003
BLOCK,TERMINAL
Contact
[7] Out of Stock
SSA912A001
SCREW
Substitute: RE60179 Notes: 1pc ONLY
[8] In Stock
AGT947K101
COVER,TERMINAL
[9] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[10] Contact
AGT151A101
GASKET
Contact
[11] Contact
PCB151D197A
INSULATION,COMP
Contact
[12] Contact
PCB151D198
INSULATION,COMP
Contact
[13] Contact
PCA541B031G
HEATER ASSY(CRANK)
Contact
[14] Contact
PCB142A900
PANEL ASSY,COMP(B)
Contact
[15] Contact
PCB142A907
BOX,COMP(BACK)
Contact
[16-17] Contact
PCB142A889G
PANEL ASSY,COMP(R)
Contact
[17] Contact
PCB947B008
GROMMET
Contact
[18-19] Contact
PCB142A893B
PANEL ASSY,COMP(L)
Contact
[19] Contact
PCB947B008
GROMMET
Contact
[20] Contact
PCB142A806
PANEL ASSY,COMP(F)
Contact
[21-22] Contact
PCB142A897
PANEL ASSY,COMP(F)
Contact
[22] Contact
PCB947B008
GROMMET
Contact
[23] Contact
PCB142A887
PANEL ASSY,COMP(T)
Contact
[24] Contact
PCB151D196
INSULATION,RUBBER
Contact
[25] Contact
PCB947B014
GROMMET
Contact
[26] Contact
PCB941C013
CUSHION,RUBBER
Contact
[27] Contact
PCB504A422BF
WIRING ASSY
Contact
Notes: FOR CM1
SKU: FDC224KXZE3/1 HEAT EXCH. AND COMPRESSOR Category:
