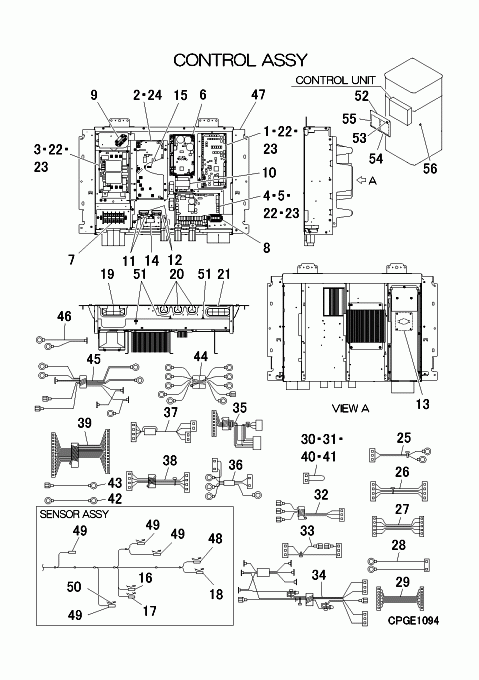

FDC224KXZE3/1 CONTROL ASSY

FDC224KXZE3/1 CONTROL ASSY

FDC224KXZE3/1 CONTROL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB505A280FC
PWB ASSY(CONTROL)
Contact
Notes: ONLY FOR SUPPLY PARTS PWB1
[1-47] Contact
PCB501A322A
CONTROL UNIT
Contact
Notes: !

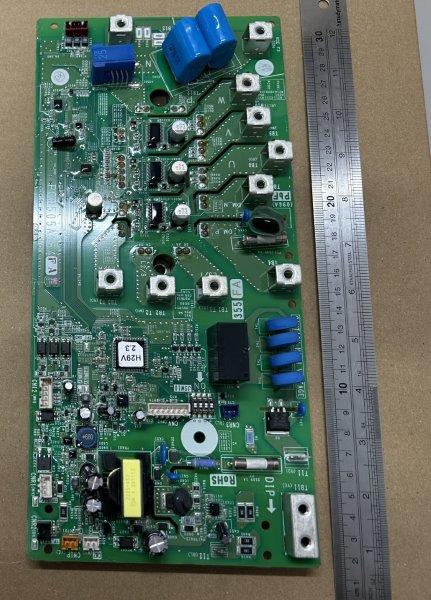

[2] Contact
PCB505A383FA
PWB ASSY(INV.)
Contact
Notes: ONLY FOR SUPPLY PARTS PWB2-1

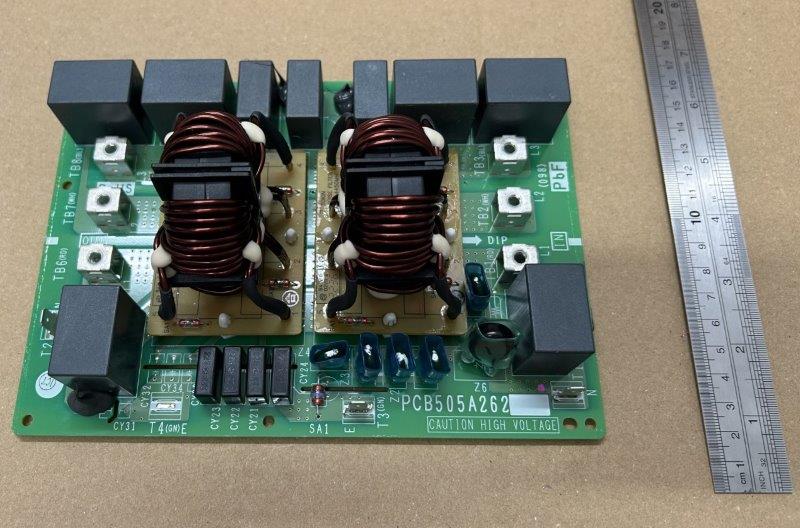

[3] Contact
PCB505A286
PWB ASSY(N.F)
Contact
Notes: ONLY FOR SUPPLY PARTS PWB3-1
[4-5] Contact
PCB505A285BA
PWB ASSY(POWER)
Contact
Notes: ONLY FOR SUPPLY PARTS PWB4
[5] In Stock
SSA564A149AC
FUSE(CURRENT)
Notes: F6 2A, 2 amp fuse
[6] Contact
PCB142A894AA
FRAME ASSY(FAN PWB
Contact
Notes: ONLY FOR SUPPLY PARTS PWB5-1
[7] In Stock
SSA561B712A
BLOCK TERMINAL
Notes: TB1 Show Image
SSA561B712A
[8] Contact
SSA561B693AW
BLOCK,TERMINAL
Contact
Notes: TB2
[9] In Stock
SSA521A727A
RELAY
Notes: 52X1-1
[10] In Stock
SSA554B073
REACTOR
Notes: L3-1 Show Image
SSA554B073
[11] Contact
SSA552F983
CAPACITOR
Contact
Notes: C1-1,1-2
[12] Contact
SSA553A661KP
RESISTOR
Contact
Notes: R1-1,1-2
[13] Contact
SSA554B145
REACTOR
Contact
Notes: L1-1
[14] Contact
SSA551J030A
SENSOR,CURRENT
Contact
[15] Contact
SSA551A256AA
SENSOR ASSY
Contact
Notes: THO-P1
[16] Contact
PSA551A039
SENSOR ASSY
Contact
Notes: THO-R3
[17] In Stock
PSA551A015B
SENSOR ASSY
Notes: THO-C1 Show Image
PSA551A015B
[18] In Stock
PSA551A015L
SENSOR ASSY
Notes: THO-SC, SUB-COOLING THERMISTOR 1 - THO-SC Show Image
PSA551A015L
[19] Contact
PCB947B002
GROMMET
Contact
[20] Contact
PCB947B003
GROMMET
Contact
[21] Contact
PCB947B006
GROMMET
Contact
[22] Contact
SSA937G103D
SUPPORT,LOCKING
Contact
[23] Contact
SSA937G079B
SUPPORT,LOCKING
Contact
[24] Contact
SSA937G103C
SUPPORT,LOCKING
Contact
[25] Contact
PCB504A422B
WIRING ASSY
Contact
Notes: PWB2-1 CNR1- 52X1-1 5,52X1-1 6
[26] Contact
PCB504A422BM
WIRING ASSY
Contact
Notes: PWB2-1 CNC3- CT1
[27] Contact
PCB504A422AS
WIRING ASSY
Contact
Notes: PWB1 CNI1- PWB2-1 CNI2
[28] Contact
PCB504A284BG
WIRING ASSY
Contact
Notes: TB2 A2,TB2 B2- CNSL2
[29] Contact
PCB504A422Y
WIRING ASSY
Contact
Notes: PWB1 CNK3- PWB4 CNK4
[30] Contact
PCB504A284BB
WIRING ASSY
Contact
Notes: PWB1 CNS1
[31] In Stock
PCB504A284BC
WIRING ASSY
Notes: PWB1 CNS2 Show Image
PCB504A284BC
[32] Contact
PCB504A422BL
WIRING ASSY
Contact
Notes: PWB5-1 T1,PWB5-1 T2,PWB5-1 T3- RC5
[33] Contact
PCB504A422AZ
WIRING ASSY
Contact
[34] Contact
PCB504A422BP
WIRING ASSY
Contact
[35] Contact
PCB504A422BJ
WIRING ASSY
Contact
Notes: PWB1 CNFAN3- PWB5-1 CNM,PWB4 CNFAN4
[36] Contact
PCB504A423AP
WIRING ASSY
Contact
Notes: CNSL,TB2 A1,TB2 B1,TB2 E- PWB1 CNX1,E
[37] Contact
PCB504A422AT
WIRING ASSY
Contact
Notes: PWB4 CNM1- PWB2-1 CNR3,PWB2-1 CNR2
[38] Contact
PCB504A422BN
WIRING ASSY
Contact
Notes: PWB1 CNE1- PWB4 CNE2
[39] Contact
PCB504A422AW
WIRING ASSY
Contact
Notes: PWB1 CNK1- PWB4 CNK2
[40] Contact
PCB504A284AP
WIRING ASSY
Contact
Notes: PWB1 CNG1
[41] Contact
PCB504A284AR
WIRING ASSY
Contact
Notes: PWB1 CNG2
[42] Contact
PCB504A422F
WIRING ASSY
Contact
Notes: C1-1 -- C1-2 +
[43] Contact
PCB504A422P
WIRING ASSY
Contact
Notes: PWB3-1 T3- E
[44] Contact
PCB504A422BH
WIRING ASSY
Contact
[45] Contact
PCB504A422BS
WIRING ASSY
Contact
[46] Contact
PCB504A422BD
WIRING ASSY
Contact
Notes: 52X1-1 1,52X1-1 3- PWB2-1 TB11
[47] Contact
PCB142A772
BOX ASSY,CONTROL
Contact
[48] Contact
PSA551A039BA
SENSOR ASSY
Contact
Notes: THO-H
[49] Contact
PSA551A039BC
SENSOR ASSY
Contact
Notes: THO-A,D1,R1,S
[50] In Stock
PSA941F001
SPRING LEAF
Notes: FOR THO-H,S,SC,C1,D1,R1,R3, 1pc ONLY Show Image
PSA941F001
[51] Contact
SSA937D085A
BAND
Contact
[52-55] Contact
PCB142A797
LID ASSY,CONTROL
Contact
[53] Contact
PCB133A018
PLATE,ACRYL
Contact
[54] Contact
PCB011G025B
LABEL,WIRING
Contact
Notes: !
[55] Contact
PCB011G025AH
LABEL,WIRING
Contact
Notes: !
[56] Contact
PCB941C015
CUSHION,RUBBER
Contact
[57] Contact
PSB011F418
LABEL,MODEL NAME
Contact
Notes: !
[58] In Stock
PCZ006A051AA
WIRING SET
Notes: FOR CNZ1 CONNECTOR Show Image
PCZ006A051AA
[59] Out of Stock
PCZ006A051AB
WIRING SET
Notes: FOR CNY CONNECTOR
[60] Contact
PCZ006A051AD
WIRING SET
Contact
Notes: FOR CNH CONNECTOR
