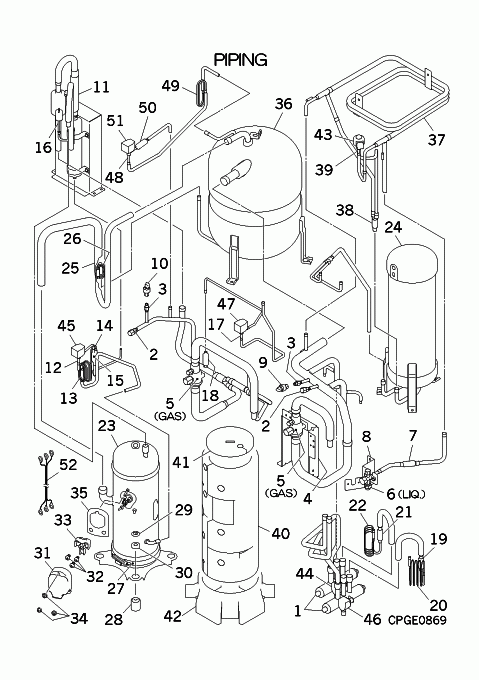

FDC224KXRE6/L PIPING

FDC224KXRE6/L PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
SSA382C096A
VALVE, S(4WAY)
Notes: 20S,20SL, Reversing Valve Body
[2] In Stock
SSA327B067
VALVE,SERVICE
Show Image
SSA327B067
[3] Contact
PCA327B056A
VALVE ASSY,SERVICE
Contact
Substitute: SSA327B071D
[4] Contact
PCB116A779
BRACKET
Contact
[5] In Stock
SSA381A748A
VALVE,SERVICE
Notes: GAS Show Image
SSA381A748A
[6] Contact
PCB381A074
VALVE,SERVICE(3/8"
Contact
Notes: LIQ.
[7] In Stock
SSA357A007A
STRAINER
Show Image
SSA357A007A
[8] Contact
PCB116A778
BRACKET
Contact
[9] In Stock
SSA551D022V
SENSOR,LP
Notes: PSL
[10] In Stock
SSA551D024A
SENSOR HP
Notes: PSH, HIGH PRESSURE TRANSDUCER - PSH Show Image
SSA551D024A
[11] Contact
SSA385A051
VALVE,CHECK
Contact
[11-15] Contact
PCB354A057
OILSEPARATOR
Contact
[11-16] Out of Stock
PCB354A056
SEPARATORASSY,OIL
[12] In Stock
SSA382A219
VALVE(2WAY)
Notes: SV6, LENGTH 7.5CM Show Image
SSA382A219
[12-15] In Stock
PCB321G143
PIPE ASSY
[13] Contact
PCB315B831
CAPILLARY
Contact
Notes: !D2.2XD3.2 L340
[14] Contact
PCB315F003
CAPILLARY
Contact
Notes: !D1.1XD3.2 L500
[15] In Stock
SSA357A053A
STRAINER
Show Image
SSA357A053A
[16] In Stock
SSA532A085NB
SWITH HP
Notes: 63H1 Show Image
SSA532A085NB
[17] In Stock
SSA382A249A
VALVE,S(2WAY)
Notes: SV11, SV1 Show Image
SSA382A249A
[18] In Stock
SSA357A059T
STRAINER
[19] In Stock
SSA357A005C
STRAINER
Show Image
SSA357A005C
[19-20] In Stock
PCB321F270
PIPE ASSY
[20] Contact
PCB315B812
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[21] In Stock
SSA357A005C
STRAINER
Show Image
SSA357A005C
[21-22] In Stock
PCB321F270A
PIPE ASSY
[22] Contact
PCB315B812A
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1000
[23] In Stock
AGT201B727HB
COMPRESSOR
Notes: GTC5150NH45K, ***COMPRESSORS CANNOT BE RETURNED***
[24] Contact
PCB352A006
RECEIVER ASSY
Contact
[25-26] Contact
PCB321G133A
PIPE,SUCTION(2)
Contact
[26] In Stock
PCB315B303D
CAPILLARY
Notes: !D2.2XD3.2 L300 Show Image
PCB315B303D
[27] In Stock
PCA541B031
HEATER ASSY(CRANK)
Show Image
PCA541B031
[28] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[29] In Stock
SSA914C033
NUT
Notes: 1pc
[30] In Stock
SSA915H042
WASHER
Notes: 1pc ONLY
[31] In Stock
PCB008A195
PARTS SET
Notes: Includes Cover, Nuts x3 & Gasket Show Image
PCB008A195
[32] Out of Stock
SSA912A001
SCREW
Substitute: RE60179 Notes: M5X8, 1pc ONLY
[33] In Stock
ASA561B002
BLOCK,TERMINAL
[34] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[35] Contact
AGT151A101
GASKET
Contact
[36] Out of Stock
SSA351A234B
ACCUMULATOR
[37] Contact
PCB303A028
HEAT EXCH ASSY(LIQ
Contact
[38] In Stock
SSA357A055
STRAINER
[39] In Stock
SSA387F051
VALVE,BODY(EXP)
Notes: EEVSC, 'BODY' ONLY. Does NOT include coil
[40] In Stock
PCB151D088B
INSULATION,COMP
[41] In Stock
PCA151D034
INSULATO CO
[42] In Stock
PCB151D100A
INSULATION,COMP
[43] Contact
SSA382F210AZ
COIL,SOLENOID
Contact
Notes: FOR EEVSC
[44] Out of Stock
PCB382F119BL
COIL ASSY,S
Notes: FOR 20S Show Image
PCB382F119BL
[45] Contact
PCB382F119BD
COIL ASSY,SOLENOID
Contact
Notes: FOR SV6
[46] In Stock
PCB382F119BP
COIL ASSY,S
Notes: FOR 20SL Show Image
PCB382F119BP
[47] Contact

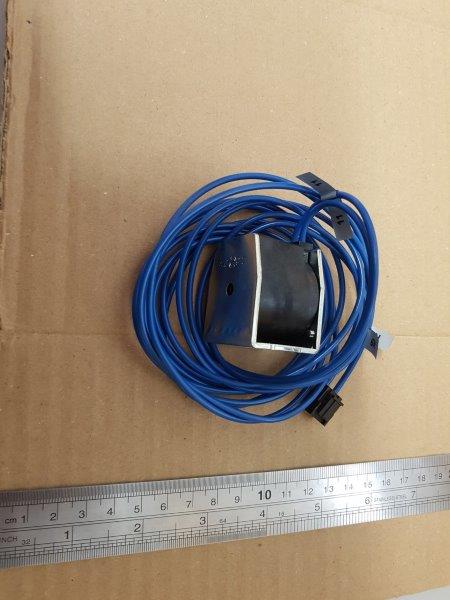

PCB382F119BG
COIL ASSY,SOLENOID
Contact
Notes: FOR SV11
[48] Contact
SSA382A273
VALVE,S(2WAY)
Contact
Substitute: SSA382A254 Notes: SV13
[48-50] Contact
PCB382A203A
VALVE ASSY(2WAY)
Contact
[49] Contact
PCB315B842
CAPILLARY
Contact
Notes: !D3.0XD4.0 L500
[50] In Stock
SSA357A005A
STRAINER
Show Image
SSA357A005A
[51] Contact

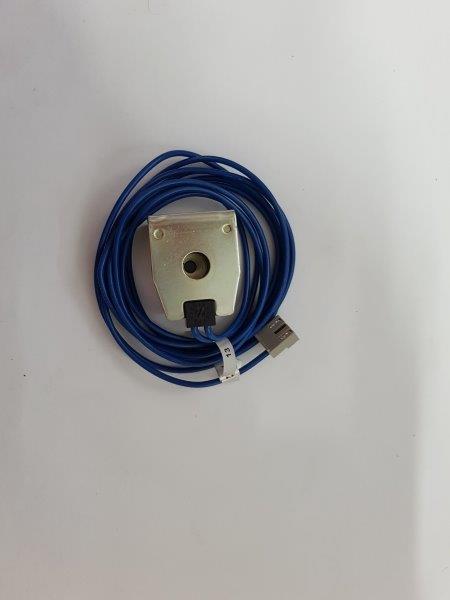

PCB382F119BK
COIL ASSY,SOLENOID
Contact
Notes: FOR SV13
[52] Contact
PCB504A338D
WIRING ASSY
Contact
Notes: FOR COMP.
SKU: FDC224KXRE6/L PIPING Category:
