FDC224KXRE6/D PANEL ASSY

FDC224KXRE6/D PANEL ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

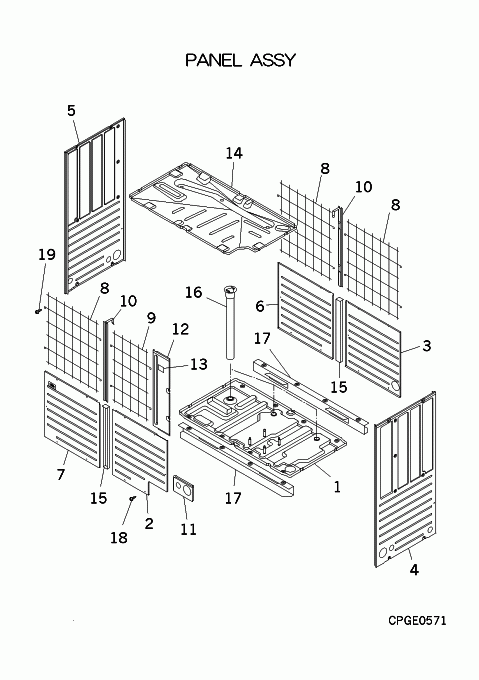

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB111A067A
BASE ASSY
Contact
[2] Contact
PCB122A092
PANEL,FRONT
Contact
[3] Contact
PCB122A092A
PANEL,FRONT
Contact
[4] Contact
PCB123A090
PANEL ASSY,SIDE
Contact
Substitute: PCB123A090J
[5] Contact
PCB123A090A
PANEL ASSY,SIDE
Contact
Substitute: PCB123A090K
[6] Contact
PCB122A092B
PANEL,FRONT
Contact
[7] Contact
PCB122A091J
PANEL ASSY,FRONT
Contact
[8] Contact
PCB131A030
GUARD,FIN
Contact
Substitute: PCB131A042
[9] Contact
PCB131A030A
GUARD,FIN
Contact
Substitute: PCB131A042A
[11] Contact
PCB142A457
COVER
Contact
[12] Contact
PCB122A094
PANEL,FRONT(U)
Contact
Substitute: PCB122A094B Notes: OUT OF PRODUCTION - SUB = PCB122A094B
[14] Contact
PCB454A021B
PANASSY,DRAIN
Contact
[16] In Stock
PCB423B002
HOSE ASSY,DRAIN
SKU: FDC224KXRE6/D PANEL ASSY Category:
