FDC224KXE6 FAN AND COMPRESSOR

FDC224KXE6 FAN AND COMPRESSOR

Available Parts

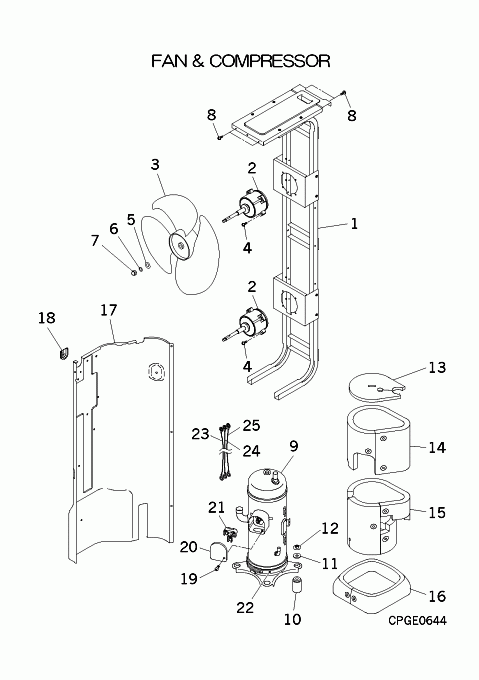

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCB116A631 BASE,MOTOR Contact   Contact
  • [2] SSA512T088 MOTOR,DC In Stock Substitute: PCB512T005
  • [3] SSA431B242B FAN BLADE In Stock
  • [4] SSA911D207BB BOLTANDWA6X25 Contact Notes: M6X25   Contact
  • [5] W200G14 WASHER In Stock Notes: 1PC ONLY
  • [6] W220G12 WASHER SUS In Stock Notes: 1PC ONLY
  • [7] SSA914H014C NUTCAP SUS In Stock Notes: 1PC
  • [8] SSA913D020A SCREW,TAP AND WASHER Out of Stock Notes: 1PC ONLY, M5X14
  • [9] AGT201B727HA COMPRESSOR In Stock Substitute: PCB201A012G Notes: ***COMPRESSORS CANNOT BE RETURNED***, GTC5150NH40K
  • [10] SSA941C285G CUSHION RUB Out of Stock Notes: LOWER
  • [11] SSA941C289A CUSHION,RUBBER Contact   Contact
  • [12] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [13] PCA151D034D INSULATION,COMP Contact   Contact
  • [14] PCB151D105 INSULATION,COMP Contact   Contact
  • [15] PCB151D105A INSULATION,COMP Contact   Contact
  • [16] PCB151D107 INSULATION,COMP In Stock
  • [17-18] PCB141A038G PLATE ASSY,BAFFLE Contact   Contact
  • [18] SSA947B027A GROMMET Contact   Contact
  • [19] H051D05X008 SCREW Contact Notes: 1PC ONLY, M5X8   Contact
  • [20] AGT947K101 COVER,TERMINAL Out of Stock
  • [21] ASA561B002 BLOCK,TERMINAL In Stock Substitute: RZ01208
  • [22] PCA541B021AR HEATER ASSY(CRANK) In Stock
  • [23] PCA504A262JF WIRING ASSY In Stock Notes: !U, !U
  • [24] PCA504A262LF WIRING ASSY In Stock Notes: !V, !V
  • [25] PCA504A262NF WIRING ASSY In Stock Notes: !W, !W
SKU: FDC224KXE6 FAN AND COMPRESSOR Category:
