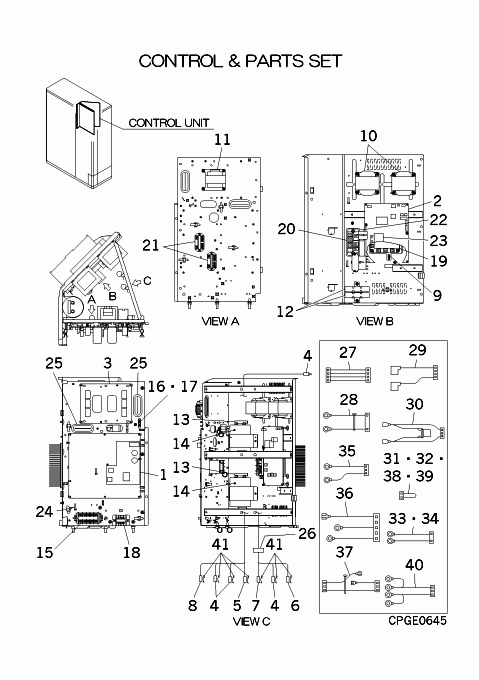

FDC224KXE6 CONTROL AND PARTS SET

FDC224KXE6 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Out of Stock

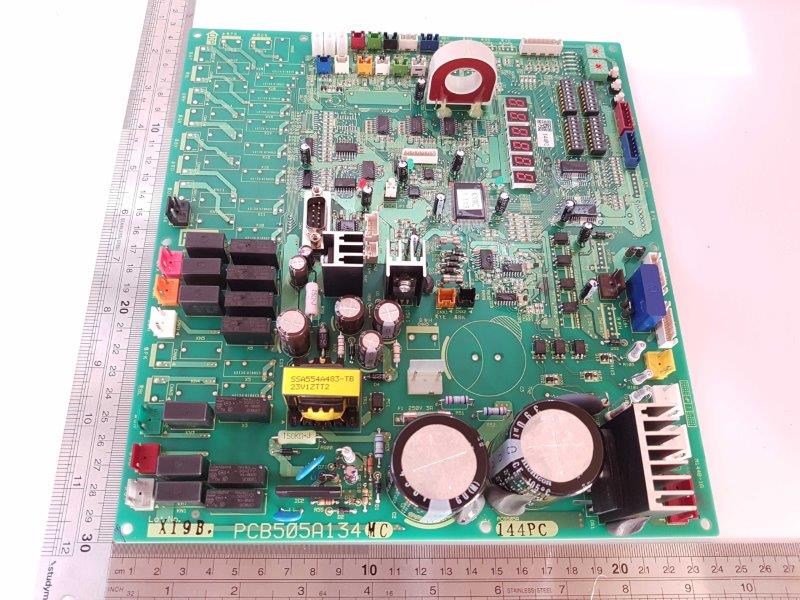

PCB505A145PC
PWB ASSY CONTROL
Notes: PWB1, PWB1 - CONTROL BOARD
[1-40] Contact
PCB501A203AA
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock

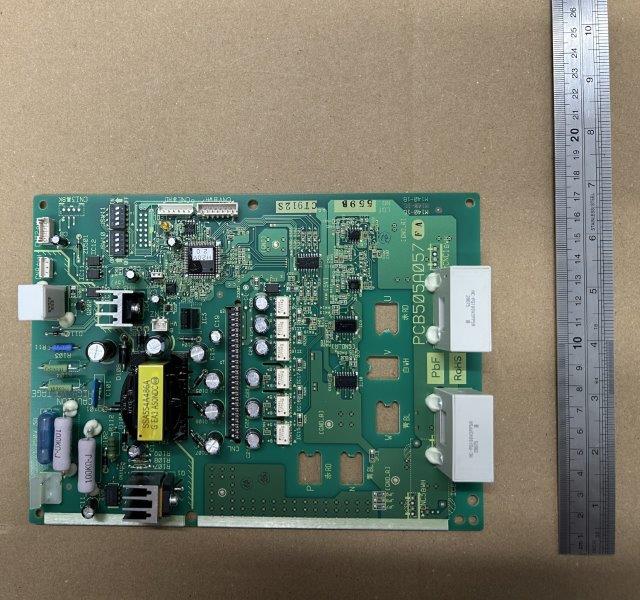

PCB505A062AC
PWB ASSY (INV.)
Notes: PWB2, PWB2 - Power Transitor / IPM sold seperately = PCB008A120A Show Image
PCB505A062AC
[3] In Stock
PCB505A035H
PWB ASSY(N.F)
Notes: PWB3, PWB3‚  - NOISE FILTER Show Image
PCB505A035H
[4] In Stock
PCB551A029G
SENSOR ASSY
Notes: THO-A,S,D,R1 Show Image
PCB551A029G
[5] In Stock

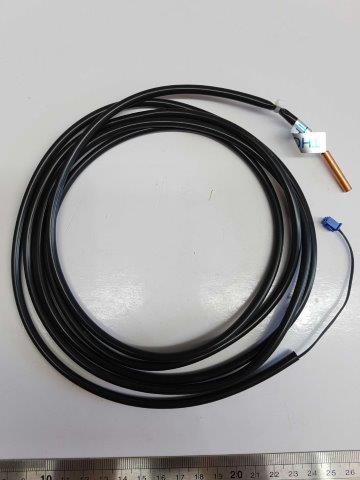

PCB551A029D
SENSOR ASSY
Notes: THO-C, THO-C‚ / LENGTH 231CM Show Image
PCB551A029D
[6] In Stock
PCB551A029A
SENSOR ASSY
Notes: THO-R2 Show Image
PCB551A029A
[7] In Stock
PCB551A029B
SENSOR ASSY
Notes: THO-H Show Image
PCB551A029B
[8] In Stock
PCB551A029C
SENSOR ASSY
Notes: THO-SC
[9] In Stock
SSA551A192Z
SENSOR ASSY
Notes: THO-TR
[10] In Stock
SSA554B044F
REACTOR
Notes: L1
[11] In Stock
SSA554B073
REACTOR
Notes: L3 Show Image
SSA554B073
[12] In Stock
SSA553A379
RESISTOR
Notes: R1-1,2,R2-1,2, SOLD INDIVIDUALLY - 15O (Ohm) Show Image
SSA553A379
[13] In Stock
SSA553A380
RESISTOR
Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image
SSA553A380
[14] In Stock
SSA552F427AK
CAPACITOR
Notes: C1-1,C2-1,C1-2,C2-2, 4700 MICRO FARADS Show Image
SSA552F427AK
[15] In Stock
SSA561B693L
BLOCK,TERMINAL
Notes: TB1
[16] In Stock
SSA564A149AL
FUSE(CURRENT)
Notes: 10A, F1 10A Show Image
SSA564A149AL
[17] In Stock
SSA564B076
HOLDER,FUSE
SSA564B076
[18] In Stock
SSA561B693W
BLOCK,TERMI
Notes: TB2 Show Image
SSA561B693W
[19] In Stock
PCB008A120A
TRANSISTOR
Notes: IPM/TM, IPM (Intelligent Power Module) / POWER TRANSISTOR Show Image
PCB008A120A
[20] In Stock
PCB008A121A
DIODE STACK
Notes: DM, aka DIODE MODULE Show Image
PCB008A121A
[21] In Stock
SSA521A715A
RELAY
Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2
[22] In Stock
PCB555B003A
VARISTOR
PCB555B003A
[23] In Stock
SSA552F694
CAPACITOR
Notes: 1250v 2.2uf
[24] In Stock
PCA552D003B
KILLER,NOISE ASSY
PCA552D003B
[25] Contact
SSA947B004
GROMMET
Contact
[26] In Stock
SSA552D040Y
FILTER,NOISE
Notes: FOR COMP.WIRING Show Image
SSA552D040Y
[27] Contact
PCB504A284L
WIRING ASSY
Contact
Notes: PWB1 CNI1- PWB2 CNI2
[28] Contact
PCB504A284J
WIRING ASSY
Contact
Notes: TB2 A,TB2 B- PWB1 CNX1
[29] Contact
PCB504A284K
WIRING ASSY
Contact
Notes: 63H-1 1,63H-1 2- PWB1 CNQ1
[30] Out of Stock
PCA504A273
WIRING ASSY
Substitute: OUT OF PRODUCTION Notes: DM G,DM K-PWB2 CNR, OUT OF PRODUCTION. DM1 G,DM1 K- PWB2-1 CNR Show Image
PCA504A273
[31] Contact
PCB504A284AP
WIRING ASSY
Contact
Notes: PWB1 CNG1
[32] Contact
PCB504A284AR
WIRING ASSY
Contact
Notes: PWB1 CNG2
[33] Contact
PCB504A284BF
WIRING ASSY
Contact
Notes: TB2 A1,TB2 B1- CNSL1
[34] Contact
PCB504A284BG
WIRING ASSY
Contact
Notes: TB2 A2,TB2 B2- CNSL2
[35] Contact
PCB504A284AS
WIRING ASSY
Contact
Notes: C1 +,C1 -- PWB2 CAN
[36] Contact
PCB504A284AV
WIRING ASSY
Contact
Notes: L3 2,PWB3 NO,PWB3 L2O- PWB1 CAW
[37] Contact
PCB504A284BA
WIRING ASSY
Contact
[38] Contact
PCB504A284BB
WIRING ASSY
Contact
Notes: PWB1 CNS1
[39] In Stock
PCB504A284BC
WIRING ASSY
Notes: PWB1 CNS2 Show Image
PCB504A284BC
[40] Contact
PCB504A284BK
WIRING ASSY
Contact
Notes: 52X2 5,52X1 5,52X1 6,52X2 6- PWB1 CNM1
[41] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[42] Contact
PCB011G008B
LABEL,WIRING
Contact
[43] Contact
PCB011G008C
LABEL,WIRING
Contact
[44] Contact
PSA012B728
MANUAL,INSTRUCTION
Contact
[45] Contact
PSB011F021AA
LABEL,MODEL NAME
Contact
