FDC200VS FAN AND COMPRESSOR

FDC200VS FAN AND COMPRESSOR

Available Parts

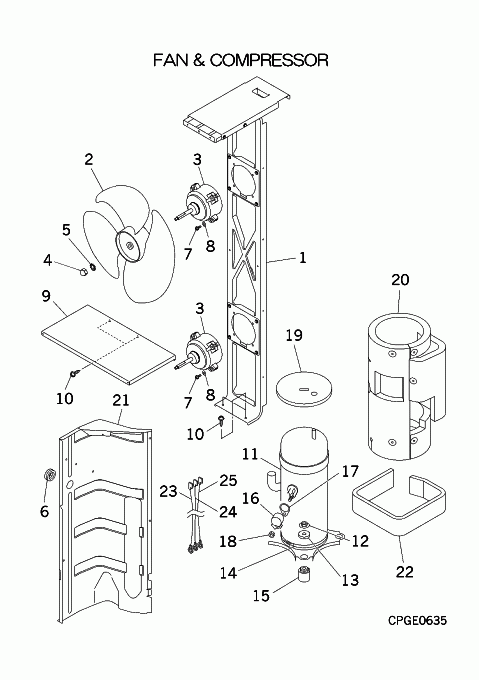

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCA116A109L BASE,MOTOR Contact   Contact
  • [2] SSA431B228 FAN, PROPELLER In Stock Notes: CONDENSER FAN BLADE
  • [3] SSA512T076G MOTOR, DC In Stock Notes: CONDENSER FAN MOTOR Show Image
  • [4] SSA914H014A NUT In Stock Notes: 1PC Show Image
  • [5] SSA915F002D WASHER In Stock Notes: 1PC ONLY Show Image
  • [6] S751W30X GROMMET V14 In Stock Notes: D35 Show Image
  • [7] SSA913C031A SCREW TAP In Stock Notes: 1PC ONLY Show Image
  • [8] W200H06 WASHER In Stock Substitute: W200G06 Notes: 1PC ONLY
  • [9] PCA141A096 PLATE,BAFFLE Contact   Contact
  • [10] SSA913D020 SCREW TAP In Stock Notes: 1PC ONLY, M5X10 Show Image
  • [11] AGT201A727DN COMPRESSOR ASSY In Stock Notes: ***COMPRESSORS CANNOT BE RETURNED***, GTC5150ND70K
  • [12] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [13] SSA941C289 CUSHION RU Out of Stock Notes: UPPER
  • [14] PCA541B021AN HEATER ASSY(CRANK) Contact   Contact
  • [15] SSA941C285G CUSHION RUB Out of Stock Notes: LOWER
  • [16] AGT947K100 COVER TERMI Out of Stock
  • [17] AGT932C100 GASKET COVE Out of Stock
  • [18] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [19] PCA151D034A INSULATO CO Contact Notes: UPPER   Contact
  • [20] PCA151D075A INSULATION,COMP Contact   Contact
  • [21] PCA141A080K PLATE ASSY,BAFFLE Contact   Contact
  • [22] PCB151D107A INSULATION,COMP Contact   Contact
  • [23] PCA504A247DJ HARNESS ASSY In Stock Notes: !U Show Image
  • [24] PCA504A247DK HARNESS ASSY In Stock Notes: !V Show Image
  • [25] PCA504A247DL HARNESS ASSY In Stock Notes: !W
