FDC155KXES6/M CONTROL AND PARTS SET

Name: FDC155KXES6/M CONTROL AND PARTS SET
SKU: FDC155KXES6/M CONTROL AND PARTS SET
Availability: InStock

FDC155KXES6/M CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

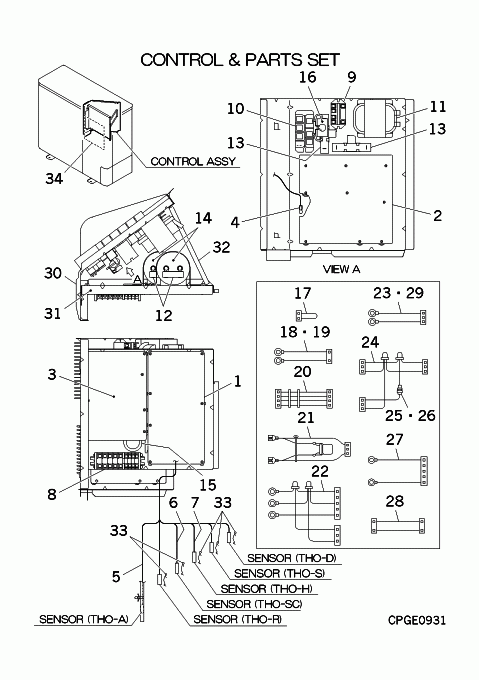

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A174CK

PWB ASSY (CONTROL)

Notes: PWB1

[1-32] Contact

PCA501A162F

CONTROL ASSY

Contact

Notes: Not suitable for this model

[2] In Stock

PCA505A108DG

PWB ASSY(INV)

Notes: PWB2, PWB2 - INVERTER BOARD Show Image

[3] In Stock

PCA505A128ZK

PWB ASSY

Notes: PWB3 Show Image

[4] In Stock

SSA551A192K

SENSOR

Notes: THO-TR, THO-TIP or THO-TR or THO-IPM - SENSOR NEAR INVERTER BOARD Show Image

[5] In Stock

PCA551A034B

SENSOR ASSY

Notes: THO-A,S,D,R1, THO-A,S,D,R1. 4 sensors on same plug. Show Image

[6] In Stock

PCA551A033

SENSOR

Notes: THO-SC

[7] In Stock

PCA551A033A

SENSOR

Notes: THO-H Show Image

[8] Contact

SSA561B711B

BLOCK,TERMI

Contact

Notes: TB

[9] In Stock

SSA521A715A

RELAY

Notes: 52C, 52X1,52X2

[10] In Stock

PCB008A121C

PARTS SET

Notes: DIODE MODULE Show Image

[11] In Stock

SSA554B097A

REACTOR

Notes: L1 Show Image

[12] In Stock

SSA553A380

RESISTOR

Notes: R3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image

[13] In Stock

SSA553A379

RESISTOR

Notes: R1,2, 15O (Ohm) Show Image

[14] In Stock

SSA552F427AJ

CAPACITOR

Notes: C1,2, C1 400V 3900MF

[15] Contact

S750W30

GROMMET

Contact

Notes: D35

[16] In Stock

PCA555B002

VARISTOR ASSY

Show Image

[17] In Stock

PCA504A264FF

WIRING ASSY

Notes: PWB1 CNS1

[18] In Stock

PCA504A264FG

WIRING ASSY

Notes: TB A1,TB B1- CNLS1, TB A1,TB B1-CNLS1

[19] In Stock

PCA504A264FH

WIRING ASSY

Notes: TB A2,TB B2- CNLS2, TB A2,TB B2-CNLS2

[20] In Stock

PCA504A264FA

WIRING ASSY

Notes: PWB1 CNI1- PWB2 CNI2, PWB1 CNI1-PWB2 CNI2

[21] In Stock

PCA504A256AY

WIRING ASSY

Notes: DM G,DM K- PWB2 CNR, DM G,DM K-PWB2 CNR‚ / LENGTH 38.5CM Show Image

[22] Contact

PCA504A264FP

WIRING ASSY

Contact

Notes: PWB3 L1 ,PWB3 N ,PWB3 L2, PWB3 L1O,PWB3 NO,PWB3 L2O-PWB1 CNW,PWB2 CNW1

[23] Contact

PCA504A264FL

WIRING ASSY

Contact

Notes: 52C 5,52C 6- PWB1 CNM1, 52C 5,52C 6-PWB1 CNM1

[24-26] Contact

PCA504A264KK

WIRING ASSY

Contact

Notes: PWB1 CNA1,PWB1 CNA2- PWB2 CNO1

[25] In Stock

SSA564A149AG

FUSE(CURRENT)

Notes: F 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image

[26] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[27] Contact

PCA504A256Z

WIRING ASSY

Contact

Notes: C1 +,C1 -- PWB2 CNW2, C1 +,C1 --PWB2 CNW2

[28] In Stock

PCA504A264GD

WIRING ASSY

Notes: PWB3 CN2 CN2-2- PWB1 CNX1, PWB3 CN2 CN2-2-PWB1 CNX1

[29] In Stock

PCA504A264GH

WIRING ASSY

Notes: TB A1,TB B1- PWB3 CN1, TB A1,TB B1-PWB3 CN1

[30] Contact

PCA142A135G

PLATE ASSY,CONTROL

Contact

[31] Contact

PCA142A134F

PLATE,CONTROL

Contact

[32] Contact

PCA142A132G

PLATE,CONTROL

Contact

[33] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THO-R,D,S,SC,H Show Image

[34] Contact

PSC011G555A

LABEL,WIRING

Contact

Notes: Not suitable for this model

[35] Contact

PSB011F171SC

LABEL,MODEL NAME

Contact

Notes: Not suitable for this model
