FDC155KXEN6 FAN AND COMPRESSOR

Name: FDC155KXEN6 FAN AND COMPRESSOR
SKU: FDC155KXEN6 FAN AND COMPRESSOR
Availability: InStock

FDC155KXEN6 FAN AND COMPRESSOR

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA116A209B

BASE,MOTOR

[2] In Stock

SSA431B228

FAN, PROPELLER

Notes: CONDENSER FAN BLADE

[3] In Stock

SSA512T076BA

MOTOR,DC

[4] In Stock

SSA914B007AD

NUT

Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image

[5] In Stock

SSA913C031A

SCREW TAP

Notes: 1pc ONLY Show Image

[6] In Stock

S751W30X

GROMMET V14

Notes: D35, ***SOLD INDIVIDUALLY*** Show Image

[7] In Stock

W200H06

WASHER

Notes: 1pc ONLY Show Image

[8] In Stock

AHT201F264DM

COMPRESSOR

Notes: RMT5126MDE21, RMT5126MDE2 ***COMPRESSORS CANNOT BE RETURNED***

[9] Contact

PCA141A087D

PLATE,BAFFLE

Contact

[10] In Stock

PCA151D095

INSULATION,COMP

Show Image

[11] In Stock

PCA151D097A

INSULATION,COMP

Show Image

[12] In Stock

PCA151D098

INSULATION,COMP

Show Image

[13] In Stock

PCA541B012K

HEATER

Notes: Crank case heater

[14] In Stock

SSA941C246

CUSHION RUBBER

Notes: *1pc only* SOLD INDIVIDUALLY - RUBBER COMPRESSOR MOUNT - LENGTH 3.7CM Show Image

[15] In Stock

SSA914C033

NUT

Notes: 1pc

[16] Out of Stock

AHL947K001

COVER,TERMINAL

Substitute: OUT OF PRODUCTION

[17] In Stock

SSA932C009A

GASKET,COVER

Show Image

[18] In Stock

SSA914C016

NUT

Notes: 1pc Show Image

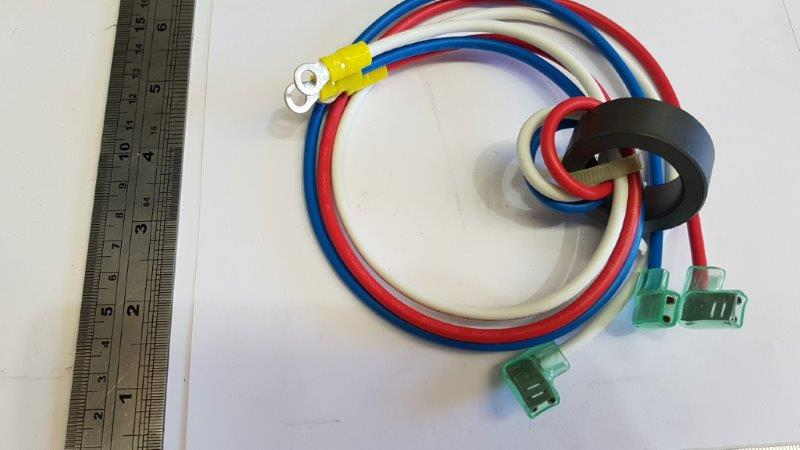

[19] In Stock

PCA504A264FR

WIRING ASSY

Notes: RED, WHITE, BLUE WIRING HARNESS Show Image

SKU: FDC155KXEN6 FAN AND COMPRESSOR Category: Uncategorised
