FDC125VSX/M CONTROL AND PARTS SET

FDC125VSX/M CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

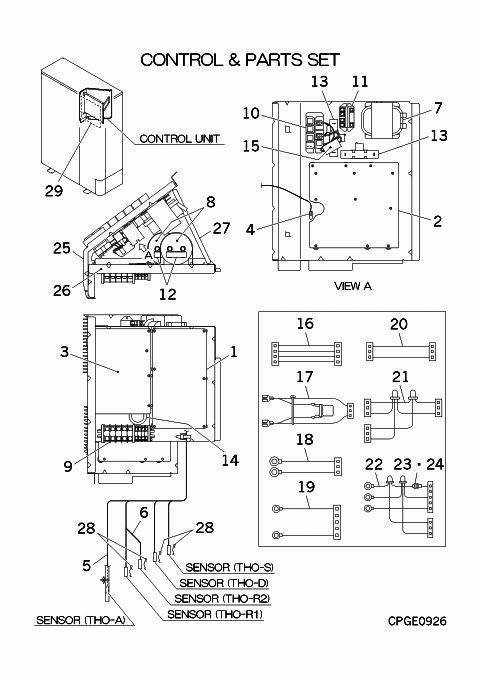

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A323JR
PWB ASSY (CONTROL)
Notes: PWB1, PWB1 - CONTROL/MAIN BOARD
[1-27] Contact
PCA501A184BA
CONTROL UNIT
Contact
Notes: Not suitable for this model, NOT AVAILABLE
[2] In Stock
PCA505A108DG
PWB ASSY(INV)
Notes: PWB2, PWB2 - INVERTER BOARD Show Image
PCA505A108DG
[3] In Stock
PCA505A128YG
PWB ASSY (N.F)
Notes: PWB3, NOISE FILTER
[4] In Stock
SSA551A192K
SENSOR
Notes: THO-TIP, THO-TIP or THO-TR or THO-IPM - SENSOR NEAR INVERTER BOARD Show Image
SSA551A192K
[5] In Stock
PSA551A014P
SENSOR ASSY
Notes: THO-A,S,D,R1, THO-A,S,D,R1 - WHITE PLUG WITH 6 BLACK WIRES AND 2 YELLOW WIRES Show Image
PSA551A014P
[6] In Stock
PSA551A013J
SENSOR
Notes: THO-R2 Show Image
PSA551A013J
[7] In Stock
SSA554B097A
REACTOR
Notes: L1 Show Image
SSA554B097A
[8] In Stock
SSA552F427AJ
CAPACITOR
Notes: C1,2, C1 400V 3900MF
[9] In Stock
SSA561B693D
BLOCK,TERMINAL
Notes: TB Show Image
SSA561B693D
[10] In Stock
PCB008A121C
PARTS SET
Notes: DIODE MODULE Show Image
PCB008A121C
[11] In Stock
SSA521A715A
RELAY
Notes: 52C, 52X1,52X2
[12] In Stock
SSA553A380
RESISTOR
Notes: R3,4, 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image
SSA553A380
[13] In Stock
SSA553A379
RESISTOR
Notes: R1,2, 15O (Ohm) Show Image
SSA553A379
[14] Contact
S750W30
GROMMET
Contact
Notes: D35
[15] In Stock
PCA555B002
VARISTOR ASSY
PCA555B002
[16] In Stock
PCA504A264GA
WIRING ASSY
Notes: PWB1 CNI1- PWB2 CNI2 Show Image
PCA504A264GA
[17] In Stock
PCA504A256AY
WIRING ASSY
Notes: DM G,DM K- PWB2 CNR, DM G,DM K-PWB2 CNR‚ / LENGTH 38.5CM Show Image
PCA504A256AY
[18] Contact
PCA504A264FL
WIRING ASSY
Contact
Notes: 52C 5,52C 6- PWB1 CNM1, 52C 5,52C 6-PWB1 CNM1
[19] Contact
PCA504A256Z
WIRING ASSY
Contact
Notes: C1 +,C1 -- PWB2 CNW2, C1 +,C1 --PWB2 CNW2
[20] Contact
PCA504A264GF
WIRING ASSY
Contact
Notes: PWB3 CN2-1- PWB1 CNW2
[21] Contact
PCA504A256BK
WIRING ASSY
Contact
Notes: PWB1 CNA1,PWB1 CNA2- PWB2 CNO1
[22-24] Contact
PCA504A264HG
WIRING ASSY
Contact
Notes: PWB3 L1 ,PWB3 N ,PWB3 L2 - PWB1 CNW,PWB2 CNW1
[23] In Stock
SSA564A149AG
FUSE(CURRENT)
Notes: F 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image
SSA564A149AG
[24] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[25] Contact
PCA142A174G
PLATE,CONTROL
Contact
[26] Contact
PCA142A134F
PLATE,CONTROL
Contact
[27] Contact
PCA142A132G
PLATE,CONTROL
Contact
[28] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR THO-R1,R2,D,S Show Image
RKJ941F001
[29] Contact
PSC011G564S
LABEL,WIRING
Contact
Notes: Not suitable for this model
[30] Contact
PSB011F173AR
LABEL,MODEL NAME
Contact
Notes: Not suitable for this model
