FDC112KXZES1-W/A FAN AND COMPRESSOR

FDC112KXZES1-W/A FAN AND COMPRESSOR

Available Parts

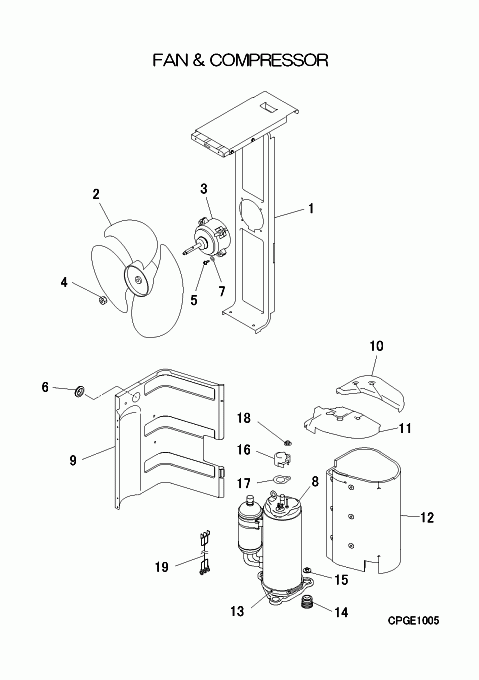

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PCA116A209B BASE,MOTOR In Stock
  • [2] SSA431B228 FAN, PROPELLER In Stock Notes: CONDENSER FAN BLADE
  • [3] SSA512T076G MOTOR, DC In Stock Substitute: SSA512T076BA Notes: CONDENSER FAN MOTOR Show Image
  • [4] SSA914B007AD NUT In Stock Substitute: RSA008A005 Notes: **1PC ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
  • [5] SSA913C031A SCREW TAP In Stock Notes: 1PC ONLY Show Image
  • [6] S751W30X GROMMET V14 In Stock Notes: f35 Show Image
  • [7] W200H06 WASHER In Stock Substitute: W200G06 Notes: 1PC ONLY
  • [8] AHT201P264WP COMPRESSOR ASSY Contact Notes: RMT5126SWP41   Contact
  • [9] PCA141A087K PLATE,BAFFLE Contact   Contact
  • [10] PCA153D044 INSULATION,COVER Contact   Contact
  • [11] PCA153D046 INSULATION,COVER Contact   Contact
  • [12] PCA151D121 INSULATION,COMP Contact   Contact
  • [13] PCA541B012K HEATER In Stock
  • [14] SSA941C246 CUSHION RUBBER In Stock Notes: 1PC ONLY/ LENGTH 3.7CM
  • [15] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [16] SSA947K026 COVER,TERMINAL In Stock Show Image
  • [17] SSA932C009A GASKET,COVER In Stock
  • [18] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [19] PCA504A264GN WIRING ASSY Contact Notes: FOR COMP.   Contact
SKU: FDC112KXZES1-W/A FAN AND COMPRESSOR Category:
