FDC100VNX/1 CONTROL AND PARTS SET

FDC100VNX/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

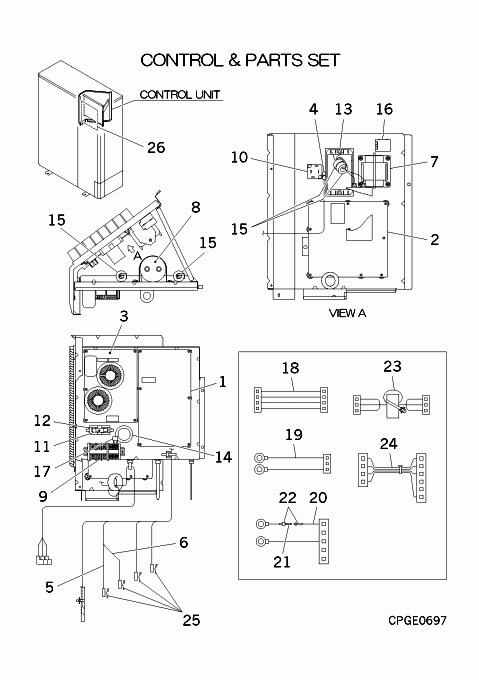

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A323JR
PWB ASSY (CONTROL)
Notes: PWB1, PWB1 - CONTROL/MAIN BOARD
[1-24] Contact
PCA501A182C
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PCA505A194DM
PWB ASSY(INV.)
Notes: PWB2 INVERTER, INVERTER BOARD - PWB2 (SCREWS NOT INCLUDED) Show Image
PCA505A194DM
[3] In Stock
PCA505A127B
PWB ASSY (N.F)
Notes: PWB3 NOISE FILTER Show Image
PCA505A127B
[4] In Stock
SSA551A192L
SENSOR
Notes: THO-TR or -AF or -P, THO-IPM THO-TR THO-AF Show Image
SSA551A192L
[5] In Stock
PSA551A014P
SENSOR ASSY
Notes: THO-A,S,D,R1, THO-A,S,D,R1 - WHITE PLUG WITH 6 BLACK WIRES AND 2 YELLOW WIRES Show Image
PSA551A014P
[6] In Stock
PSA551A013J
SENSOR
Notes: THO-R2 Show Image
PSA551A013J
[7] In Stock
SSA554B092
REACTOR
Notes: L1
[8] In Stock
SSA552F601
CAPACITOR
Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image
SSA552F601
[9] In Stock
SSA561B693C
BLOCK TERMINAL
Notes: TB Show Image
SSA561B693C
[10] In Stock
SSA555A662
DIODE
Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image
SSA555A662
[11] In Stock
PCA504A300
FUSE ASSY
Notes: 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)
[12] In Stock
SSA564B044
HOLDER, FUSE
SSA564B044
[13] In Stock
SSA556J035A
IC (ACTIVE CONVERTER)
Notes: A/F MODULE (Active Filter Module) Show Image
SSA556J035A
[14] Contact
S750W30
GROMMET
Contact
Notes: D35
[15] In Stock
SSA554D168
CORE,FERRITE
[16] In Stock
SSA554D231
CORE FERRITE
SSA554D231
[17] In Stock
PCA552F004
CAPACITOR ASSY
Notes: CFO, 0.01MF-275V-VERY SMALL CAPACITOR - 1CM APPROX - WITH ALIGATOR CLIPS Show Image
PCA552F004
[18] In Stock
PCA504A264GA
WIRING ASSY
Notes: PWB1 CNI1-PWB2 CNI2, PWB1 CNI1- PWB2 CNI2 Show Image
PCA504A264GA
[19] In Stock
PCA504A246CC
WIRING ASSY
Notes: PWB3 CN1-TB 1,TB 2 Show Image
PCA504A246CC
[20-22] In Stock
PCA504A272Z
WIRING ASSY
Notes: PWB3 L1O,PWB3 NO- PWB1 CNW Show Image
PCA504A272Z
[21] In Stock
SSA564A149AG
FUSE(CURRENT)
Notes: 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image
SSA564A149AG
[22] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[23] In Stock
PCA504A264FB
WIRING ASSY
Notes: PWB1 CNI3- PWB2 CNI4, PWB1 CNI3-PWB2 CNI4
[24] In Stock
PCA504A264HC
WIRING ASSY
Notes: PWB2 CNACT1- LACT CNACT, 4 black wires with white plugs PWB2-ACTIVE FILTER MODULE. One plug is slightly smaller than the other. (PWB2 CNACT1- LACT CNACT)/ LENGTH 55.5CM Show Image
PCA504A264HC
[25] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[26] Contact
PSC011G564C
LABEL,WIRING
Contact
[27] Contact
PSB011F034BL
LABEL,MODEL NAME
Contact
