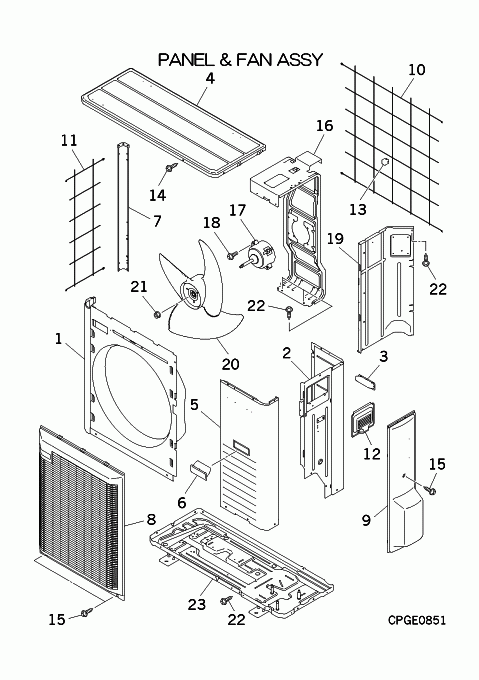

FDC100VNP-W/1 PANEL AND FAN ASSY

FDC100VNP-W/1 PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCR122A001F
PANEL ASSY,FRONT
[2-3] In Stock
RCR125A002L
PANEL ASSY,REAR
[3] In Stock
SSA944B031A
HANDLE
Show Image
SSA944B031A
[4] In Stock
RCR124A002S
PANEL ASSY,TOP
Notes: COMES WITH WARNING LABEL RSA011H036B
[5] In Stock
RCR122A006B
PANEL,SERVICE
[5-6] In Stock
RCR122A004A
PANEL ASSY,SERVICE
[6] In Stock
SSA944B031A
HANDLE
Show Image
SSA944B031A
[7] In Stock
RCR115A002A
SUPPORT,CORNER
[8] In Stock
RCR435A002
GRILLE AIR OUT
Notes: FAN GUARD/FAN GRILLE
[9] In Stock
RCR132A004
COVER ASSY
Notes: PLASTIC
[10] In Stock
RCR131A001
GUARD,FIN(A)
[11] In Stock
RCR131A002
GUARD,FIN(B)
[12] In Stock
RCR132A002
COVER,TERMINAL
Show Image
RCR132A002
[13] In Stock
RCR941G001
CUSHION,RUBBER
Notes: ! Show Image
RCR941G001
[14] Contact
SSA913A034H
SCREW,TAP
Contact
Notes: 4X8, 1pc ONLY
[15] In Stock
SSA913A034L
SCREW,TAP
Notes: 4X12, 1pc ONLY
[16] In Stock
RCR116A001D
BRACKET,MOTOR
[17] In Stock
SSA512T076BM
MOTOR DC
[18] In Stock
SSA913B038
SCREW,TAP
Notes: 1pc ONLY - FOR FAN MOTOR Show Image
SSA913B038
[19] Out of Stock
RCR141A204A
PLATE ASSY,BAFFLE
[20] In Stock
SSA431B256
FAN, PROPELLER
Notes: FAN BLADE
[21] In Stock
SSA914B007AD
NUT
Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[22] In Stock
W011D04X008
TAP SCREW
Notes: 4X8, 1pc ONLY Show Image
W011D04X008
[23] In Stock
RCR111A003D
BASE ASSY
