FDC100VNP/1 FAN AND COMPRESSOR

FDC100VNP/1 FAN AND COMPRESSOR

Available Parts

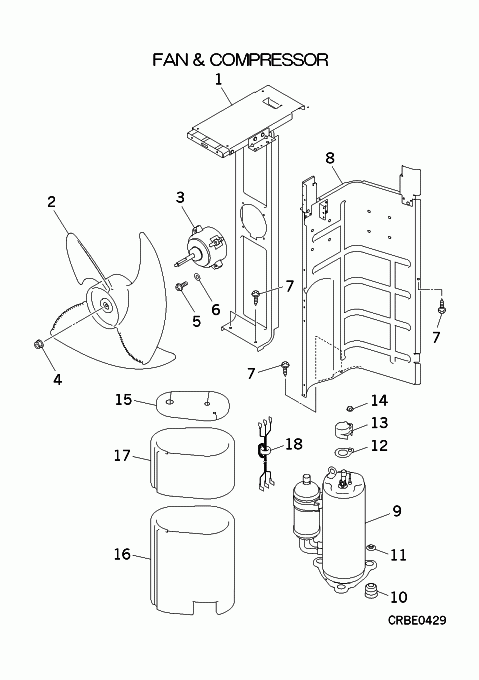

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] RCR116A109 BASE,MOTOR In Stock
  • [2] SSA431B228 FAN, PROPELLER In Stock Notes: CONDENSER FAN BLADE
  • [3] SSA512T076W MOTOR DC In Stock Notes: CONDENSER FAN MOTOR
  • [4] SSA914B007AD NUT In Stock Substitute: RSA008A005 Notes: 1PC, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
  • [5] SSA913C031A SCREW TAP In Stock Notes: 1PC ONLY Show Image
  • [6] W200H06 WASHER In Stock Substitute: W200G06 Notes: 1PC ONLY
  • [7] SSA913D020 SCREW TAP In Stock Notes: 1PC ONLY, M5X10 Show Image
  • [8] RCR141A205 PLATE ASSY,BAFFLE Contact   Contact
  • [9] AHT201F264C COMPRESSOR In Stock Notes: RMT5126MCE1
  • [10] SSA941C246 CUSHION RUB In Stock Notes: 1PC ONLY
  • [11] SSA914C013 NUT In Stock Notes: 1PC Show Image
  • [12] SSA932C009A GASKET,COVER In Stock
  • [13] SSA947K026 COVER,TERMINAL In Stock
  • [14] SSA914C016 NUT In Stock Notes: 1PC Show Image
  • [15] RCR154D104A INSULATION,COMP In Stock Show Image
  • [16] RCR154D105 INSULATION,COMP In Stock
  • [17] RCR154D106 INSULATION,COMP In Stock
  • [18] RCR504A048B WIRING ASSY In Stock Notes: WIRING HARNESS FOR COMPRESSOR, FOR COMP. Show Image
SKU: FDC100VNP/1 FAN AND COMPRESSOR Category:
