FDC100VNP/1 CONTROL AND PARTS SET

FDC100VNP/1 CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

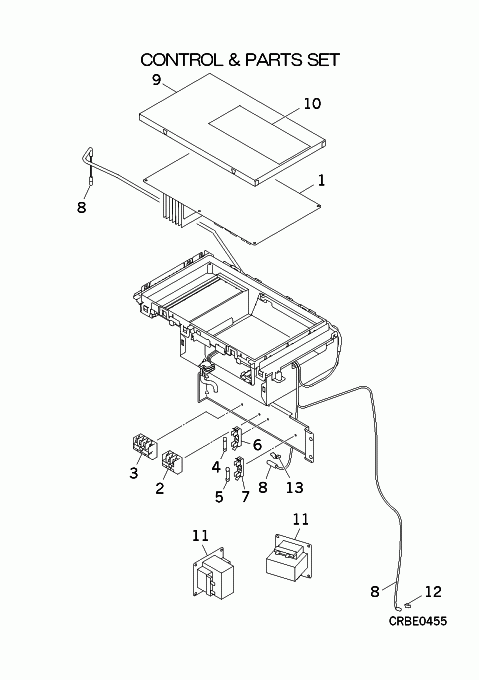

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RCR505A100BJ
PWB ASSY
Notes: Main PCB
[1-10] Contact
PCA501A205
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
SSA561B665
BLOCK TERMI
Notes: T1 Show Image
SSA561B665
[3] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[4] In Stock
SSA564A136A
FUSE(CURRENT)
Notes: 20A, F 20A‚  - 20 amp fuse Show Image
SSA564A136A

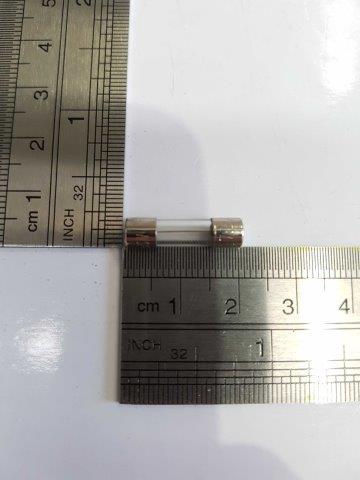

[5] In Stock
SSA564A149AK
FUSE(CURRENT)
Notes: 8A, LENGTH 2CM Show Image
SSA564A149AK
[6] In Stock
SSA564B088
HOLDER,FUSE
SSA564B088
[7] In Stock
SSA564B076
HOLDER,FUSE
SSA564B076
[8] In Stock
SSA551A246
SENSOR ASSY
Notes: TH1,2,3 Show Image
SSA551A246
[9-10] Contact
RCR142A207H
LID ASSY,CONTROL
Contact
[10] Contact
PSC011G582
LABEL,WIRING
Contact
[11] In Stock
SSA554B114
REACTOR
Notes: *** 1 PIECE ONLY. SOLD INDIVIDUALLY *** Show Image
SSA554B114
[12] In Stock
RKF941F002
SPRING
Notes: LENGTH 2.8CM Show Image
RKF941F002
[13] In Stock
RCJ941F001
SPRING
Notes: LENGTH 2.5CM Show Image
RCJ941F001
[14] Contact
PSB011F173AA
LABEL,MODEL NAME
Contact
SKU: FDC100VNP/1 CONTROL AND PARTS SET Category:
