FDC100VN/C CONTROL AND PARTS SET

FDC100VN/C CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

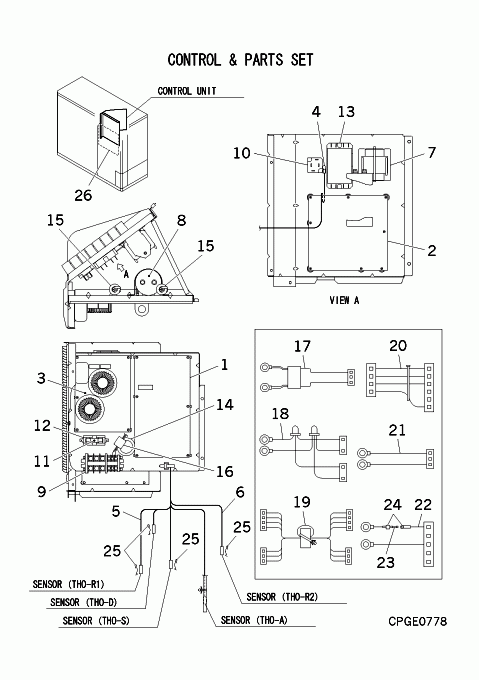

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA505A323JD
PWB ASSY (CONTROL)
Notes: PWB1 CONTROL, PWB1 - CONTROL BOARD - TECHNICIAN TO READ INSTALL INSTRUCTIONS
[1-24] Contact
PCA501A173F
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PCA505A195DB
PWB ASSY INV.
Notes: PWB2, PWB2 - INVERTER BOARD
[3] In Stock
PCA505A127F
PWB ASSY (N.F)
Notes: PWB3 Show Image
PCA505A127F
[4] In Stock
SSA551A192L
SENSOR
Notes: THO-TR or -AF or -P, THO-IPM THO-TR THO-AF Show Image
SSA551A192L
[5] In Stock
PCA551A034B
SENSOR ASSY
Notes: THO-A,S,D,R1, THO-A,S,D,R1. 4 sensors on same plug. Show Image
PCA551A034B
[6] In Stock
PSA551A013D
SENSOR
Notes: THO-R2 Show Image
PSA551A013D
[7] In Stock
SSA554B092
REACTOR
Notes: L1
[8] In Stock
SSA552F601
CAPACITOR
Notes: C1, 450v 2700mf, COMPRESSOR CAPACITOR Show Image
SSA552F601
[9] In Stock
SSA561B693C
BLOCK TERMINAL
Notes: TB Show Image
SSA561B693C
[10] In Stock
SSA555A662
DIODE
Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image
SSA555A662
[11] In Stock
PCA504A300
FUSE ASSY
Notes: 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)
[12] In Stock
SSA564B044
HOLDER, FUSE
Show Image
SSA564B044
[13] In Stock
SSA556J035A
IC (ACTIVE CONVERTER)
Notes: A/F MODULE (Active Filter Module)
[14] Contact
S750W30
GROMMET
Contact
Notes: D35
[15] In Stock
SSA554D183
KILLER,NOISE
Show Image
SSA554D183
[16] Contact
SSA554D198A
CORE,FERRITE
Contact
[17] Contact
PCA504A264JB
WIRING ASSY
Contact
Notes: TB 2,TB 3- PWB1 CNW2
[18] In Stock
PCA504A264HP
WIRING ASSY
Notes: C1 +,C1 --PWB1 CNA1,PWB1 CNA2, C1 +,C1 -- PWB1 CNA1,PWB1 CNA2/ LENGTH 27CM Show Image
PCA504A264HP
[19] Contact
PCA504A264JC
WIRING ASSY
Contact
Notes: PWB1 CNI1,PWB1 CNI3- PWB2 CNI2,PWB2 CNI4
[20] In Stock
PCA504A246BP
WIRING ASSY
Notes: PWB2 CNACT1-LACT CNACT
[21] In Stock
PCA504A246CC
WIRING ASSY
Notes: PWB3 CN1-TB 1,TB 2 Show Image
PCA504A246CC
[22-24] Contact
PCA504A264GK
WIRING ASSY
Contact
Notes: PWB3 L1O,PWB3 NO-PWB1 CNW, PWB3 L1O,PWB3 NO- PWB1 CNW
[23] In Stock
SSA564A149AG
FUSE(CURRENT)
Notes: 4A, F 4A‚ - 4 AMP FUSE - ****NOT MAIN FUSE**** Show Image
SSA564A149AG
[24] In Stock
RWC564B002
HOLDER,FUSE
Show Image
RWC564B002
[25] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[26] Contact
PSC011G564A
LABEL,WIRING
Contact
[27] Contact
PSB011F034DF
LABEL,MODEL NAME
Contact
