FDC100VN/A FAN AND COMPRESSOR

FDC100VN/A FAN AND COMPRESSOR

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

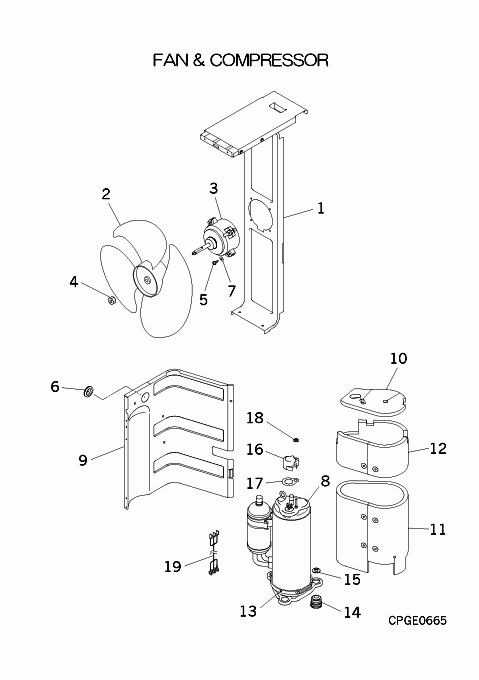

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCA116A209B
BASE,MOTOR
[2] In Stock
SSA431B228
FAN, PROPELLER
Notes: CONDENSER FAN BLADE
[3] In Stock
SSA512T076BA
MOTOR,DC
[4] In Stock
SSA914B007AD
NUT
Substitute: RSA008A005 Notes: **1pc ONLY**, NUT THAT LOCKS FAN BLADE ONTO SHAFT Show Image
SSA914B007AD
[5] In Stock
SSA913C031A
SCREW TAP
Notes: 1pc ONLY Show Image
SSA913C031A
[6] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[7] In Stock
W200H06
WASHER
Notes: 1pc ONLY Show Image
W200H06
[8] In Stock
AHT201F264DA
COMPRESSOR ASSY
Notes: RMT5126MDE2, RMT5126MDE2 - ***COMPRESSORS CANNOT BE RETURNED***
[9] In Stock
PCA141A087B
PLATE,BAFFLE
[10] Out of Stock
PCA151D086
INSULATION,COMP
Notes: Top Show Image
PCA151D086
[11] In Stock
PCA151D087
INSULATION,COMP
[12] In Stock
PCA151D094
INSULATION,COMP
PCA151D094
[13] In Stock
PCA541B012K
HEATER
Notes: Crank case heater
[14] In Stock
SSA941C246
CUSHION RUBBER
Notes: *1pc only* SOLD INDIVIDUALLY - RUBBER COMPRESSOR MOUNT - LENGTH 3.7CM Show Image
SSA941C246
[15] In Stock
SSA914C033
NUT
Notes: 1pc
[16] In Stock
SSA947K026
COVER,TERMINAL
SSA947K026
[17] In Stock
SSA932C009A
GASKET,COVER
SSA932C009A
[18] In Stock
SSA914C016
NUT
Notes: 1pc Show Image
SSA914C016
[19] In Stock
PCA504A272AB

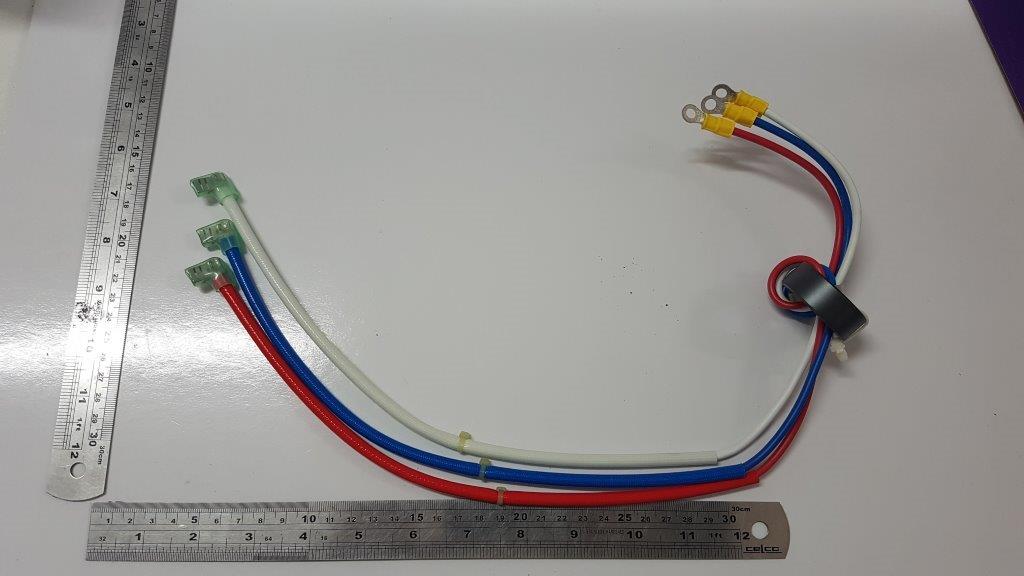

WIRING ASSY
PCA504A272AB
SKU: FDC100VN/A FAN AND COMPRESSOR Category:
