FDC1008HES3 HEAT EXCH. ASSY

FDC1008HES3 HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

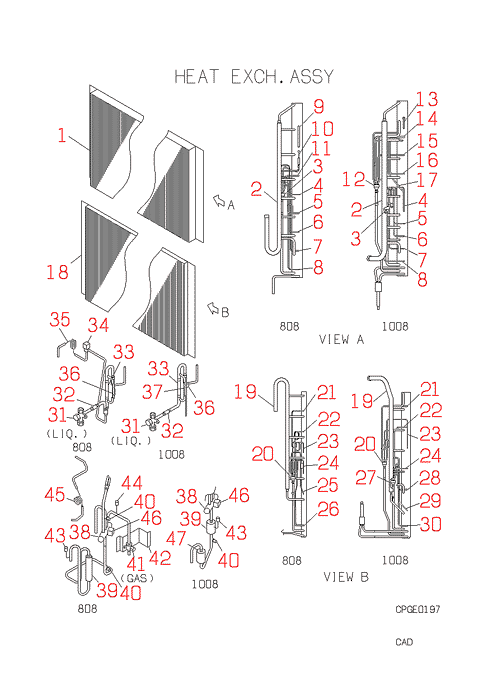

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PCB311A024B
HEAT EXCH
Contact
Notes: UPPER
[1-17] Contact
PCB301A076A
HEAT EXCH
Contact
Notes: UPPER
[2] Contact
PCB315D103A
HEADER ASSY
Contact
Notes: !UPPER
[3] Contact
SSA315A252F
DISTRIBUTOR
Contact
[3-8] Contact
PCB315A069A
DISTRI ASSY
Contact
Notes: UPPER
[4] Contact
PCB315B502
CAPILLARY
Contact
Notes: !D2.2XD3.2 L500
[5] Contact
PCB315B403
CAPILLARY
Contact
Notes: !D1.6XD3.2 L500
[6] Contact
PCB315B404
CAPILLARY
Contact
Notes: !D1.6XD3.2 L500
[7] Contact
PCB315B405
CAPILLARY
Contact
Notes: !D1.6XD3.2 L500
[8] Contact
PCB315B406
CAPILLARY
Contact
Notes: !D1.6XD3.2 L500
[12] Contact
SSA315A252
DISTRIBUTOR
Contact
[12-17] Contact
PCB315A069B
DISTRI ASSY
Contact
Notes: UPPER
[13] Contact
PCB315B509
CAPILLARY
Contact
Notes: !D2.4XD4.0 L500
[14] Contact
PCB315B398
CAPILLARY A
Contact
Notes: !D3.0XD4.0 L100
[15] Contact
PCB315B510
CAPILLARY
Contact
Notes: !D3.0XD4.0 L500
[16] Contact
PCB315B500
CAPILLARY
Contact
Notes: !D2.2XD4.0 L500
[17] Contact
PCB315B501
CAPILLARY
Contact
Notes: !D2.8XD4.0 L500
[18] Contact
PCB311A024C
HEAT EXCH
Contact
[18-30] Contact
PCB301A077A
’¡AT EXCH
Contact
Notes: LOWER
[19] Contact
PCB315D105A
HEADER ASSY
Contact
Notes: !LOWER
[20] Contact
SSA315A252A
DISTRIBUTOR
Contact
[20-24] Contact
PCB315A070A
DISTRI ASSY
Contact
Notes: LOWER
[21] Contact
PCB315B505
CAPILLARY
Contact
Notes: !D2.4XD4.0 L500
[22] Contact
PCB315B506
CAPILLARY
Contact
Notes: !D2.2XD4.0 L500
[23] Contact
PCB315B503
CAPILLARY
Contact
Notes: !D2.4XD4.0 L500
[24] Contact
PCB315B511
CAPILLARY
Contact
Notes: !D3.0XD4.0 L500
[27] In Stock
SSA315A252B
DISTRIBUTOR
Show Image
SSA315A252B
[27-30] Contact
PCB315A070B
DISTRI ASSY
Contact
Notes: LOWER
[28] Contact
PCB315B507
CAPILLARY
Contact
Notes: !D2.0XD4.0 L500
[29] Contact
PCB315B508
CAPILLARY
Contact
Notes: !D2.2XD4.0 L500
[30] Contact
PCB315B504
CAPILLARY
Contact
Notes: !D1.8XD3.2 L500
[31] In Stock
SSA381A036
VALVE SERVI
Notes: LIQUID, LIQUID LINE SERVICE VALVE Show Image
SSA381A036
[31-37] Contact
PCB304A081A
PIPNG ASSY
Contact
[32] Contact
SSA357A005F
STRAINER
Contact
[33] In Stock
SSA385A017
VALVE CHECK
Show Image
SSA385A017
[36] Contact
PCB315B438
CAPILLARY
Contact
Notes: !D1.8XD3.2 L500
[37] Contact
P210V35X100
CAPILLARY
Contact
Notes: !D3.5XD5.0 L100
[38] In Stock
SSA382C051
VALVE 4WAY
Notes: REVERSING VALVE - 4 WAY VALVE -
[39] Contact
SSA325A001AM
MUFFLER
Contact
[40] Contact
SSA327B001A
VALVE.SERVC
Contact
Substitute: RB87026C

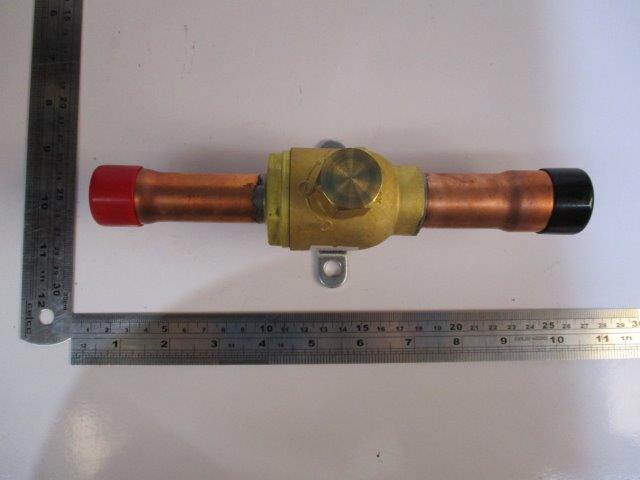

[41] In Stock
SSA381A719A
VALVE SERVI
Notes: GAS Show Image
SSA381A719A
[42] Contact
PCB116A061B
BRACKET
Contact
[43] In Stock
SSA532A032CA
SWITCH H P
Notes: 63H1 Show Image
SSA532A032CA
[44] In Stock
SSA532A052F
SWITCH,HP
Notes: 63H2 Show Image
SSA532A052F
[45] Contact
PCB315B470
CAPILA,ASSY
Contact
Substitute: PCB315B681 Notes: D3.5XD5.0 L300
[46] In Stock
PCB382F076B
COIL
Notes: 20S, LENGTH 56.5CM Show Image
PCB382F076B
[47] Contact
SSA325A001BF
MUFFLER
Contact
SKU: FDC1008HES3 HEAT EXCH. ASSY Category:
