ESA30E-25/C PIPING

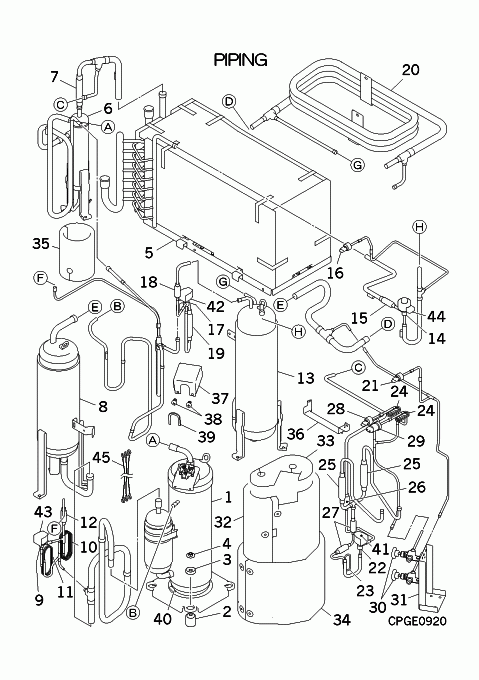

ESA30E-25/C PIPING

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
ATC201A002
GSR7115AD2
Notes: GSR7115AD2, ***COMPRESSORS CANNOT BE RETURNED***
[2] In Stock
SSA941C356
CUSHION,RUBBER
Notes: 1pc only Show Image
SSA941C356
[3] Contact
SSA915H039A
WASHER
Contact
Notes: 1pc ONLY
[4] In Stock
SSA914C033
NUT
Notes: 1pc
[5] In Stock
PCM302A001
COOLER ASSY,GAS
[6] Contact
PCM354A002
SEPARATER,OIL
Contact
[6-7] In Stock
PCM354A001
SEPARATER ASSY,OIL
[7] In Stock
SSA385A053A
VALVE,CHECK
Show Image
SSA385A053A
[8] In Stock
SSA351A240
ACCUMULATOR
[8-12] In Stock
PCM351A001B
ACCUMULATOR ASSY
[9] In Stock
SSA382A279
VALVE,S(2WAY)
Notes: SVO1 Show Image
SSA382A279
[9-12] In Stock
PCM382A001
VALVE ASSY,S(SVO1)
[10] Contact
PCM315B001
CAPILLARY
Contact
Notes: !D1.0XD2.0 L1500
[11] Contact
PCM315B002
CAPILLARY
Contact
Notes: !D1.1XD2.5 L800
[12] Contact
SSA357A050A
STRAINER
Contact
[13] In Stock
SSA352A132
RECEIVER
[14] In Stock
SSA387F058
VALVE EXPA
Notes: EEVG1,H1,H2 Show Image
SSA387F058
[14-16] In Stock
PCM387F001
VALVE ASSY,EXP(EEV)
[15] In Stock
SSA357A050
STRAINER
Show Image
SSA357A050
[16] In Stock
SSA551D031
SENSOR,LP
Notes: PSL1,M1, LENGTH 9CM Show Image
SSA551D031
[17-19] In Stock
PCM382A002
VALVE ASSY,S(SVI1)
[17] In Stock
SSA382A278
VALVE,S(2WA
Notes: SV13 or SV4 Show Image
SSA382A278
[18] In Stock
SSA357A050B
STRAINER
Show Image
SSA357A050B
[19] Contact
SSA385A053
VALVE,CHECK
Contact
[20] In Stock
PCM303A001A
COOLER,INTER
[21] In Stock
SSA551D031
SENSOR,LP
Notes: PSL1,M1, LENGTH 9CM Show Image
SSA551D031
[22] In Stock
SSA382A278
VALVE,S(2WA
Notes: SV13 or SV4 Show Image
SSA382A278
[22-29] Contact
PCM382A003B
VALVE ASSY,S(SVH1)
Contact
[23] Contact
PCM315B003
CAPILLARY
Contact
Notes: !D3.0XD4.0 L150
[24] Contact
PCM315B005
CAPILLARY
Contact
Notes: !D2.2XD3.2 L250
[25] Contact
SSA385A053
VALVE,CHECK
Contact
[26] Contact
SSA357A050A
STRAINER
Contact
[27] In Stock
SSA357A050B
STRAINER
Show Image
SSA357A050B
[28] In Stock
SSA551D030
SENSOR,HP
Notes: PSH1 Show Image
SSA551D030
[29] In Stock
SSA532A086A
SWITCH,HP
Notes: 63H1-1 Show Image
SSA532A086A
[30] In Stock

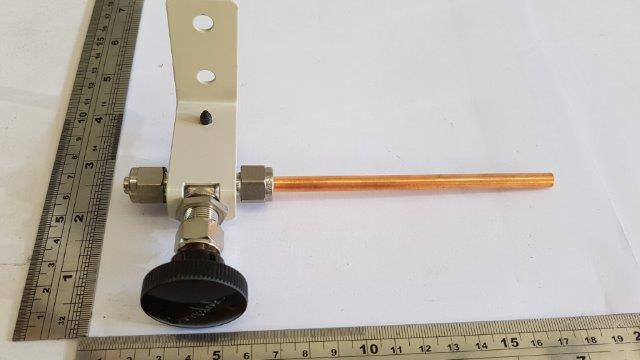

PCM381A002A
VALVE, SERVICE
Show Image
PCM381A002A
[31] Contact
PCB116A553G
BRACKET
Contact
[32] Contact
PCM151D015
INSULATION,COMP
Contact
[33] Contact
PCM151D002
INSULATION,COMP
Contact
[34] Contact
PCM151D003
INSULATION,COMP
Contact
[35] Contact
PCM151D007
INSULATION,OIL SEP
Contact
[36] Contact
PCM116A047
BRACKET
Contact
[37] Contact
PCM947K006
COVER,TERMINAL(COM
Contact
[38] In Stock
SSA913D020
SCREW TAP
Notes: M5X10, 1pc ONLY Show Image
SSA913D020
[39] Contact
SSA947H001AK
EDGING
Contact
[40] In Stock
PCA541B016H
HEATER ASSY(CRANK)
[41] In Stock
PCM382F003
COIL,SOLEN
Notes: FOR SVH1, LENGTH 153.5CM Show Image
PCM382F003
[42] In Stock
PCM382F003B
COIL,SOLEN
Notes: FOR SVI1 Show Image
PCM382F003B
[43] In Stock
PCM382F004
COIL,SOLEN
Notes: FOR SV01 Show Image
PCM382F004
[44] In Stock
SSA382F224B
COIL,SOLENO
Notes: FOR EEVG1, LENGTH 9CM
[45] Contact
PCM504A018V
WIRING ASSY
Contact
Notes: FOR COMP.
SKU: ESA30E-25/C PIPING Category:
