ESA30E-25/C HEAT EXCH. ASSY

ESA30E-25/C HEAT EXCH. ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-17] In Stock
PCM301A001AD
HEAT EXCHANGEASSY (AIR
Notes: FRONT, ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***
[2] Contact
PCM315D005A
HEADER ASSY,GAS(F)
Contact
[3] Contact
SSA315A305C
DISTRIBUTOR
Contact
[3-13] Contact
PCM315A001A
DISTRIBUTOR ASSY
Contact
[4] Contact
PCM315B023A
CAPILLARY ASSY
Contact
Notes: !D2.8XD4.0 L300
[5] Contact
PCM315B024A
CAPILLARY ASSY
Contact
Notes: !D2.6XD4.0 L300
[6] Contact
PCM315B025A
CAPILLARY ASSY
Contact
Notes: !D3.0XD5.0 L300
[7] Contact
PCM315B026A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L440
[8] Contact
PCM315B027A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L1040
[9] Contact
PCM315B028A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L300
[10] Contact
PCM315B029A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L660
[11] Contact
PCM315B030A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L1040
[12] Contact
PCM315B031A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L440
[13] Contact
PCM315B032A
CAPILLARY ASSY
Contact
Notes: !D3.0XD4.0 L300
[14] Contact
PCM321A067B
PIPE
Contact
[15] In Stock
SSA387F058
VALVE EXPA
Notes: EEVG1,H1,H2 Show Image
SSA387F058
[15-16] In Stock
PCM387F003B
VALVE ASSY,EXP(EEV
[16] In Stock

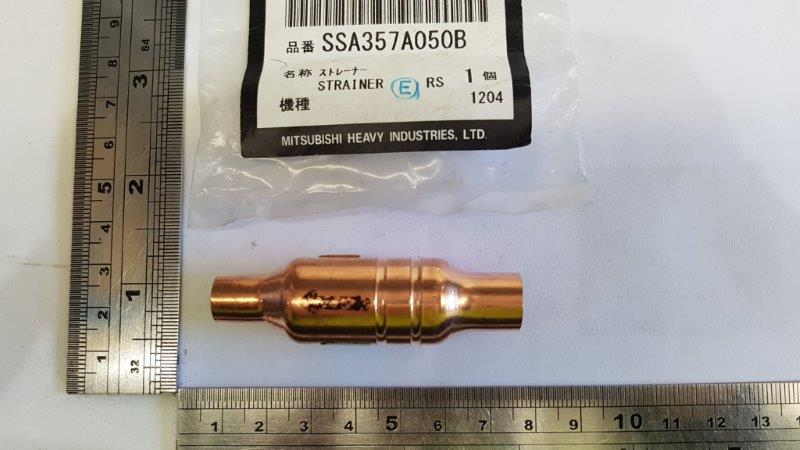

SSA357A050B
STRAINER
Show Image
SSA357A050B
[17] Contact
PCB141A033
PLATE BAFF
Contact
Notes: UPPER
[18-34] In Stock
PCM301A001AF
HEAT EXCHANGE ASSY (AIR)
Notes: REAR, ***EXTRA LARGE PART-MAYBE EXPENSIVE FREIGHT***
[19] Contact
PCM315D007A
HEADER ASSY,GAS(R)
Contact
[20] Contact
SSA315A305C
DISTRIBUTOR
Contact
[20-30] In Stock
PCM315A002A
DISTRIBUTOR ASSY
[21] Contact
PCM315B033A
CAPILLARY ASSY
Contact
Notes: !D2.8XD4.0 L300
[22] Contact
PCM315B034A
CAPILLARY ASSY
Contact
Notes: !D2.6XD4.0 L300
[23] Contact
PCM315B035A
CAPILLARY ASSY
Contact
Notes: !D3.0XD5.0 L300
[24] Contact
PCM315B036A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L300
[25] Contact
PCM315B037A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L660
[26] Contact
PCM315B038A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L440
[27] Contact
PCM315B039A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L440
[28] Contact
PCM315B040A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L1040
[29] Contact
PCM315B041A
CAPILLARY ASSY
Contact
Notes: !D2.4XD4.0 L300
[30] Contact
PCM315B042A
CAPILLARY ASSY
Contact
Notes: !D3.0XD4.0 L300
[31] Contact
PCM321A067C
PIPE
Contact
[32] In Stock
SSA387F058
VALVE EXPA
Notes: EEVG1,H1,H2 Show Image
SSA387F058
[32-33] In Stock
PCM387F003C
VALVE ASSY,EXP(EEV
[33] In Stock
SSA357A050B
STRAINER
Show Image
SSA357A050B
[34] Contact
PCB141A033
PLATE BAFF
Contact
Notes: UPPER
[35] In Stock
SSA382F224
COIL,SOLENO
Notes: FOR EEVH1, LENGTH 174.5CM Show Image
SSA382F224

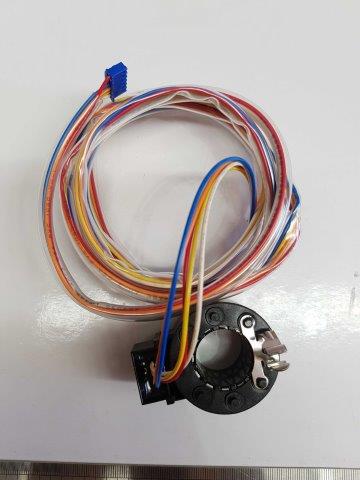

[36] In Stock
SSA382F224A
COIL,SOLENO
Notes: FOR EEVH2, LENGTH 173CM Show Image
SSA382F224A
[37] Contact
PCB116A816
BRACKET
Contact
