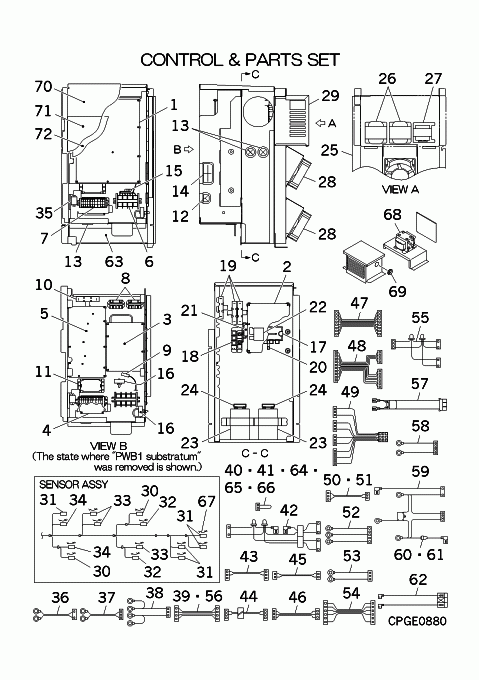

ESA30E-25/C CONTROL AND PARTS SET

ESA30E-25/C CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PCM505A008D
PWB ASSY (CONTROL)
Notes: PWB1, MUST CONFIRM SERVICE CODE - PWB1 - CONTROL PWB
[1-63] Contact
PCM501A005J
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PCB505A107CA
PWB ASSY (INV.)
Notes: PWB2, PWB2 - Inverter PCB
[3] In Stock
PCB505A035H
PWB ASSY(N.F)
Notes: PWB3, PWB3‚  - NOISE FILTER Show Image
PCB505A035H
[4] In Stock
PCM505A006
PWB ASSY(WATER PUMP)
Notes: PWB4, PWB4 - WATER PUMP PWB
[5] In Stock
PCB505A114
PWB ASSY (POWER)
Notes: PWB5, PWB5 - POWER PWB
[6] Out of Stock
SSA561B712D
CLOCK TERMI
Substitute: OUT OF PRODUCTION Notes: TB1 Show Image
SSA561B712D
[7] Out of Stock
SSA561B693V
BLOCK,TERMI
Substitute: OUT OF PRODUCTION Notes: TB2 Show Image
SSA561B693V
[8] In Stock
SSA521A715A
RELAY
Notes: 52X1-1,1-2,2-1,2-2, 52X1,52X2
[9] In Stock

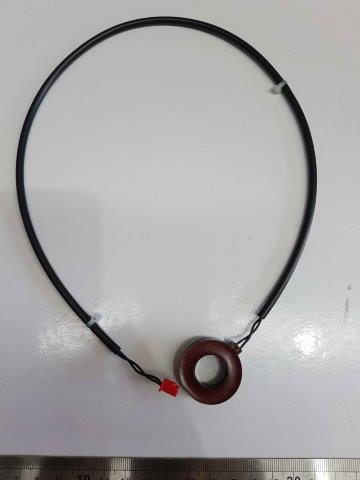

PCB554A021
TRANSFORMER ASSY
Notes: LENGTH 54CM Show Image
PCB554A021
[10] In Stock
SSA553A549
RESISTOR
SSA553A549
[11] In Stock
PCM008A032
PART SET
Notes: FILTER,NOISE
[12] Contact
SSA947B017
GROMMET
Contact
[13] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[14] Contact
SSA947B121
GROMMET
Contact
[15] In Stock
PCA552D003C
KILLER,NOISE ASSY
PCA552D003C
[16] In Stock
SSA552D081
FILTER,NOISE
[17] In Stock
PCB008A177B
TRANSISTOR POWER
Notes: TM Show Image
PCB008A177B
[18] In Stock
PCB008A121A
DIODE STACK
Notes: DM, aka DIODE MODULE Show Image
PCB008A121A
[19] In Stock
SSA553A536
RESISTOR
Notes: R1-1,2,3 Show Image
SSA553A536
[20] In Stock
SSA551A192W
SENSOR ASSY
Notes: THO-P1
[21] In Stock
PCB555B003C
VARISTOR ASSY
PCB555B003C
[22] In Stock
SSA552F694
CAPACITOR
Notes: 1250v 2.2uf
[23] In Stock
SSA552F427AK
CAPACITOR
Notes: C1-1,C2-1,C1-2,C2-2, 4700 MICRO FARADS Show Image
SSA552F427AK
[24] In Stock
SSA553A380
RESISTOR
Notes: R1-3,4,R2-3,4, SOLD INDIVIDUALLY - 30 kO (kilo-Ohm)/ LENGTH 4.7CM Show Image
SSA553A380
[25] Contact
PCB438A033G
DUCT ASSY
Contact
[26] In Stock
SSA554B097
REACTOR
Notes: L1-1,2,L2-1,2
[27] In Stock
SSA554B073
REACTOR
Notes: L3 Show Image
SSA554B073
[28] In Stock
PCB511A006D
MOTOR FAN
[29] Contact
PCB142A434
COVER
Contact
[30] In Stock
PCM551A002
SENSOR ASSY
Notes: THO-G1,G2 Show Image
PCM551A002
[31] In Stock
PCM551A002A
SENSOR ASSY
Notes: THO-A,R1,R2,R3,R4 Show Image
PCM551A002A
[32] In Stock
PCM551A002B
SENSOR ASSY
Notes: THO-M1,IN1 Show Image
PCM551A002B
[33] In Stock
PCM551A002C
SENSOR ASSY
Notes: THO-D1,S1,C1 Show Image
PCM551A002C
[34] In Stock
PCM551A002D
SENSOR ASSY
Notes: THO-W1,W2 Show Image
PCM551A002D
[35] In Stock
SSA521A053A
RELAY
SSA521A053A
[36] In Stock
PCM504A006G
WIRING ASSY
Notes: TB2 1,TB2 B-PWB1 CNX1 Show Image
PCM504A006G
[37] In Stock
PCM504A006H
WIRING ASSY
Notes: TB2 X,TB2 Y-PWB1 CNB1 Show Image
PCM504A006H
[38] In Stock
PCM504A006J
WIRING ASSY
Notes: 52X1-1 5,52X1-2 5,52X1-2 6,52X1-1 6-PWB1 CNM1 Show Image
PCM504A006J
[39] In Stock
PCM504A006K
WIRING ASSY
Notes: PWB1 CNPUM1-PWB4 CN1 Show Image
PCM504A006K
[40] Contact
PCB504A284BB
WIRING ASSY
Contact
Notes: PWB1 CNS1
[41] In Stock
PCB504A284BC
WIRING ASSY
Notes: PWB1 CNS2 Show Image
PCB504A284BC
[42] In Stock
PCM504A006L
WIRING ASSY
Notes: PWB5 CN13-2-PWB1 CNDR,PWB1 CN13V Show Image
PCM504A006L
[43] In Stock
PCM504A006M
WIRING ASSY
Notes: PWB1 CN15V-PWB5 CN15V-2 Show Image
PCM504A006M
[44] In Stock
PCM504A006N
WIRING ASSY
Notes: PWB1 CN18V-PWB5 CN18V-2 Show Image
PCM504A006N
[45] In Stock
PCM504A006P
WIRING ASSY
Notes: PWB1 CNTH8- Show Image
PCM504A006P
[46] In Stock
PCM504A006R
WIRING ASSY
Notes: PWB1 CNL4- Show Image
PCM504A006R
[47] In Stock
PCM504A006S
WIRING ASSY
Notes: PWB1 CNTH6- Show Image
PCM504A006S
[48] In Stock
PCM504A006T
WIRING ASSY
Notes: PWB1 CNTH7- Show Image
PCM504A006T
[49] In Stock
PCM504A006V
WIRING ASSY
Notes: PWB1 CNN8,PWB1 CNN9,PWB1 CNN10,PWB1 CNN11-, LENGTH 31CM Show Image
PCM504A006V
[50] In Stock
PCM504A018K
WIRING ASSY
Notes: PWB5 CNA1-2- FM1 CNDC1, LENGTH 82CM Show Image
PCM504A018K
[51] In Stock
PCM504A018L
WIRING ASSY
Notes: PWB5 CNA2-2- FM2 CNDC2 Show Image
PCM504A018L
[52] In Stock
PCM504A018M
WIRING ASSY
Notes: PWB3-1 L1 ,PWB3-1 N ,PWB3-1 L2 -PWB1 CNW1, LENGTH 47CM Show Image
PCM504A018M
[53] In Stock
PCM504A018N
WIRING ASSY
Notes: TB2 1,TB2 2-PWB5 CNW1-2
[54] In Stock
PCM504A018S
WIRING ASSY
Notes: PWB4 CN2- WATER PUMP SIDE Show Image
PCM504A018S
[55] In Stock
PCM504A018C
WIRING ASSY
Notes: PWB1 CNN3- FMC1,FMC2 Show Image
PCM504A018C
[56] In Stock
PCM504A006Z
WIRING ASSY
Notes: PWB1 CNI1-PWB2-1 CNI2 Show Image
PCM504A006Z
[57] Out of Stock
PCA504A273
WIRING ASSY
Substitute: OUT OF PRODUCTION Notes: DM1 G,DM1 K-PWB2-1 CNR, OUT OF PRODUCTION. DM1 G,DM1 K- PWB2-1 CNR Show Image
PCA504A273
[58] In Stock
PCM504A018J
WIRING ASSY
Notes: C2 -,C2 +-PWB2-1 CAN Show Image
PCM504A018J
[60] In Stock
SSA564A139V
FUSE(CURRENT)
Notes: 4A
[61] In Stock
RWC564B002
HOLDER,FUSE
RWC564B002
[62] In Stock

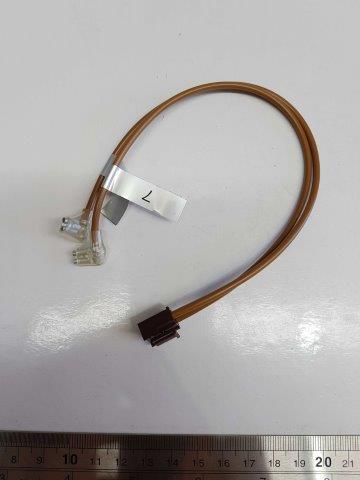

PCM504A008A
WIRING ASSY
Notes: DHX 7,DHX 8- CNDH, LENGTH 26CM Show Image
PCM504A008A
[63] Contact
PCM142A011
COVER
Contact
[64] Contact
PCB504A284AP
WIRING ASSY
Contact
Notes: PWB1 CNG1
[65] Contact
PCB504A284AR
WIRING ASSY
Contact
Notes: PWB1 CNG2
[66] Contact
PCM504A006AA
WIRING ASSY
Contact
Notes: CNS3
[67] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[68] In Stock
SSA554A526
TRANSFORMER
SSA554A526
[68-69] Contact
PCM554A001
TRANSFORMER ASSY
Contact
[69] In Stock
S751W30X
GROMMET V14
Notes: D35 Show Image
S751W30X
[69-61] In Stock
PCM504A020
WIRING ASSY
Notes: DHX 3,TB2 3,E,TB2 4- HEATER ASSY,PWB1 CNW2,DHX 5 Show Image
PCM504A020
[70-72] Contact
PCM142A012F
COVER ASSY(CONTROL
Contact
[71] Contact
PCM011G001D
LABEL,WIRING
Contact
Notes: !SURFACE ATTACHMENT
[72] Contact
PCM011G001F
LABEL,WIRING
Contact
Notes: !BACK ATTACHMENT
[73] Contact
PCM011F013A
LABEL,MODEL NAME
Contact
SKU: ESA30E-25/C CONTROL AND PARTS SET Category:
