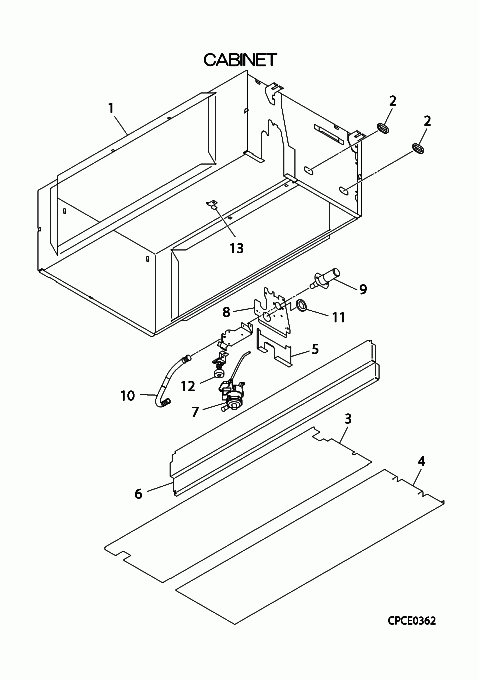

DXU55VF CABINET ASSY

DXU55VF CABINET ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] In Stock
PJG100A003
CABINET ASSY
[2] In Stock
SSA947B120
GROMMET
Notes: LENGTH 5.5CM Show Image
SSA947B120
[3] In Stock
PJG111A007
PLATE ASSY,BOTTOM(
[4] Contact
PJG111A009
PLATE ASSY,BOTTOM(
Contact
[5] Contact
PJG132A007
LID ASSY
Contact
[6] Contact
PJG115A006
STIFFENER ASSY
Contact
[7] In Stock
SSA451A012
PUMP, DRAIN
SSA451A012
[7-11] In Stock
PJG451A003A
PUMP ASSY,DRAIN
[8] Contact
PJG132A010A
LID(PIPE)
Contact
[9] In Stock
SSA422C088
SOCKET
Notes: LENGTH 11.5CM Show Image
SSA422C088
[10] In Stock
SSA423A110
HOSE,DRAIN
SSA423A110
[11] In Stock
S751W30
GROMMET
Notes: D35 Show Image
S751W30
[12] In Stock
SSA536A030
FLOAT SWITCH
Notes: FS, LENGTH 107.5CM Show Image
SSA536A030
[13] Contact
PJG116A015
BRACKET(STOPPER)
Contact
[14] In Stock
SSA423A101A
HOSE,DRAIN
Notes: SEE C: CONTROL & PARTS SET
[15] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
