DXU43VF CONTROL AND PARTS SET

DXU43VF CONTROL AND PARTS SET

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

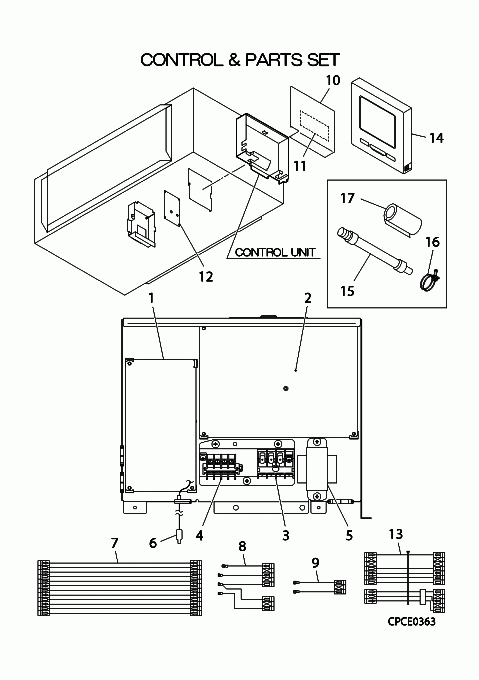

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
PJA505A228DJ
PWB ASSY (CONTROL)
Notes: CONFIRM SERVICE CODE BEFORE ORDERING - (CONTROL) LEFT OF TERMINAL BLOCK. CONFIRM SERVICE CODE-MANY PARTS ENDING 228 Show Image
PJA505A228DJ
[1-9] Contact
PJG501A003AP
CONTROL UNIT
Contact
Notes: NOT AVAILABLE
[2] In Stock
PJA505A235
PWB ASSY(POWER)
Notes: *****CONFIRM UNIT SERVICE CODE********(POWER) ABOVE TERMINAL BLOCK, DOES NOT PLUG INTO FAN MOTOR BUT POWERS PWB ASSY(MOTOR). THE PWB ASSY(MOTOR) PLUGS DIRECTLY INTO MOTOR Show Image
PJA505A235
[3] In Stock
SSA561B702
BLOCK,TERMINAL
Notes: TB1 Show Image
SSA561B702
[4] In Stock
SSA561B720A
BLOCK,TERMINAL
Notes: TB2 Show Image
SSA561B720A
[5] In Stock
SSA554B109
REACTOR
SSA554B109
[6] In Stock
PSA551A001CG
SENSOR ASSY
Notes: THI-A Show Image
PSA551A001CG
[7] In Stock
PJG504A001B
WIRING(PWB)
Notes: CNW2 PWB- CNW1 PWB, CNW2 PWB- CNW1 PWB/ LENGTH 16.5CM (12 white wires) Show Image
PJG504A001B
[8] In Stock
PJF504A036A
WIRING(TB,POWER)
Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0 PWB,CNW3 PWB Show Image
PJF504A036A
[9] In Stock
PJF504A006K
WIRING(TB,XY)
Notes: TB2 X,TB2 Y- CNB PWB Show Image
PJF504A006K
[10] In Stock
PJG142A015A
LID ASSY,CONTROL B
[11] Contact
PJG011G003A
LABEL,WIRING
Contact
[12] In Stock
PJA505A236
PWB ASSY(MOTOR)
Notes: COMES WITH SSA971F044 (GREASE) INSIDE BOX Show Image
PJA505A236
[12-13] Contact
PJG501A004
CONTROL UNIT(DRIVE
Contact
Notes: NOT AVAILABLE
[13] In Stock
PJG504A008
WIRING(FM)
Notes: CNM2,CNFM2- CNM,CNFM Show Image
PJG504A008
[14] Contact
PJZ502A024AB
Advanced Wired Remote
Contact
Notes: RC-EX1A, SALES ITEM - ECO TOUCH
[15] In Stock
SSA423A101A
HOSE,DRAIN
Notes: SEE C: CONTROL & PARTS SET
[15-17] Contact
PJF008A001W
PARTS SET
Contact
[16] In Stock
V300Y38
CLAMP
Notes: CLAMP Show Image
V300Y38
[17] In Stock
SSA153B016BA
INSULATION,PIPE
SSA153B016BA
[18] Contact
PJG011F004BN
LABEL,MODEL NAME
Contact
