DXU34VF HEAT EXCH. AND FAN

DXU34VF HEAT EXCH. AND FAN

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

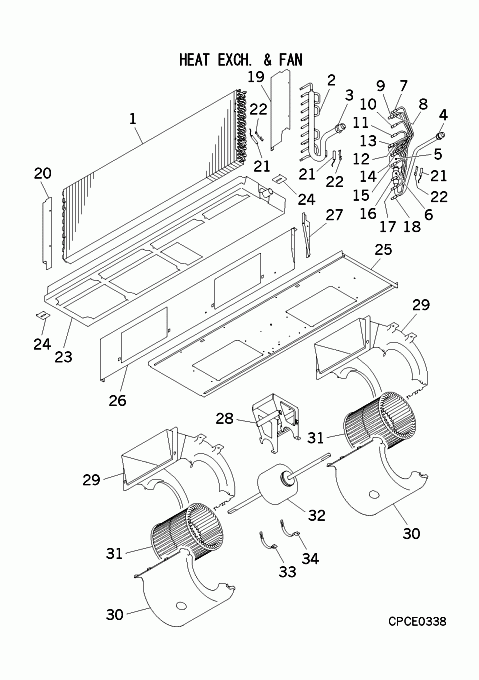

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact
PJG311A004
HEAT EXCH(AIR)
Contact
[1-22] Out of Stock
PJG301A007
HEAT EXCH ASSY
Notes: Indoor/Evaporator Heat exchanger coil assembly
[2-3] Contact
PJG315D009
HEADER ASSY,GAS
Contact
[3] Contact
SSA323F012C
UNION,SOLDER
Contact
[4] In Stock
SSA323F088
UNION(SLD)
Notes: FOR GAS, LENGTH 2.6CM Show Image
SSA323F088
[4-18] In Stock
PJG315A010
DISTRIBUTOR ASSY
Notes: Includes Distributor, Strainer & Capillaries
[5] Contact
PJG315A001F
DISTRIBUTOR
Contact
[5-18] Contact
PJG315A011
DISTRIBUTOR ASSY
Contact
[6] In Stock
SSA357A051
STRAINER
SSA357A051
[7] Contact
PJG315B003
CAPILLARY
Contact
Notes: !D2.6XD4.0 L220
[8] Contact
PJG315B003A
CAPILLARY
Contact
Notes: !D2.0XD4.0 L300
[9] Contact
PJG315B003B
CAPILLARY
Contact
Notes: !D3.0XD4.0 L220
[10] Contact
PJG315B003C
CAPILLARY
Contact
Notes: !D2.8XD4.0 L200
[11] Contact
PJG315B003D
CAPILLARY
Contact
Notes: !D2.6XD4.0 L180
[12] Contact
PJG315B003F
CAPILLARY
Contact
Notes: !D2.8XD4.0 L180
[13] Contact
PJG315B003G
CAPILLARY
Contact
Notes: !D3.0XD4.0 L220
[14] Contact
PJG315B003H
CAPILLARY
Contact
Notes: !D2.2XD4.0 L180
[15] Contact
PJG315B003J
CAPILLARY
Contact
Notes: !D2.0XD4.0 L240
[16] Contact
PJG315B003K
CAPILLARY
Contact
Notes: !D2.8XD4.0 L220
[17] Contact
PJG315B003L
CAPILLARY
Contact
Notes: !D2.8XD4.0 L260
[18] Contact
PJG315B003M
CAPILLARY
Contact
Notes: !D2.6XD4.0 L320
[19] Contact
PJG141A007
PLATE,BAFFLE(R)
Contact
[20] Contact
PJG141A008
PLATE,BAFFLE(L)
Contact
[21] In Stock
PJF551A002J
SENSOR ASSY
Notes: THI-R1,2,3 Show Image
PJF551A002J
[22] In Stock
RKJ941F001
SPRING LEAF
Notes: FOR SENSOR Show Image
RKJ941F001
[23] In Stock
PJG454A005
PAN ASSY,DRAIN
Notes: comes with outlet and plug
[24] In Stock
PJG116A009
BRACKET
PJG116A009
[25] In Stock
PJG119A018
PLATE(BASE,FAN)
[26] In Stock
PJG119A019
PLATE,FAN
[27] In Stock
PJG119A020
PLATE(FAN)
Notes: RIGHT Show Image
PJG119A020
[28] In Stock
PJG116A011
BRACKET(MOTOR)
[29] In Stock
PJG433B006
CASING(U)
[30] In Stock
PJG433B004
CASING(L)
[31] In Stock
SSA431D094
IMPELLER
Notes: FAN BARREL
[32] In Stock
SSA512T123C
MOTOR DC
[33] Out of Stock
PJG116A063
BRACKET(MOTOR)
Notes: LEFT Show Image
PJG116A063
[34] In Stock
PFA116A207H
BRACKET
Notes: RIGHT Show Image
PFA116A207H
SKU: DXU34VF HEAT EXCH. AND FAN Category:
