DXU24VF HEAT EXCH. AND FAN

DXU24VF HEAT EXCH. AND FAN

Available Parts

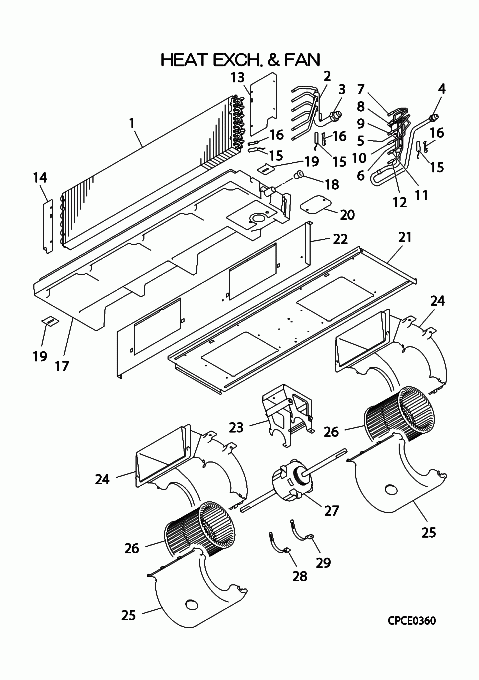

Check the parts position number [ ] matching with the image.

You need to log in to your account to view prices.

  • [1] PJG311A001A HEAT EXCH(AIR) Contact   Contact
  • [1-16] PJG301A001B HEAT EXCH ASSY(AIR In Stock
  • [2-3] PJR315D506A HEADER ASSY,GAS Contact   Contact
  • [3] SSA323F012C UNION,SOLDER Contact   Contact
  • [4] SSA323F088 UNION(SLD) In Stock Notes: FOR GAS
  • [4-12] PJG315A002A DISTRIBUTOR ASSY Contact   Contact
  • [5] PJG315A001C DISTRIBUTOR Contact   Contact
  • [5-12] PJG315A003 DISTRIBUTOR ASSY Contact   Contact
  • [6] SSA357A051 STRAINER In Stock Show Image
  • [7] PJG315B001 CAPILLARY Contact Notes: !D2.4XD4.0 L300, !D2.4XD4.0 L300   Contact
  • [8] PJG315B001A CAPILLARY Contact Notes: !D2.4XD4.0 L180, !D2.4XD4.0 L180   Contact
  • [9] PJG315B001B CAPILLARY Contact Notes: !D2.8XD4.0 L180, !D2.8XD4.0 L180   Contact
  • [10] PJG315B001C CAPILLARY Contact Notes: !D2.8XD4.0 L180, !D2.8XD4.0 L180   Contact
  • [11] PJG315B001G CAPILLARY Contact Notes: !D3.0XD4.0 L180, !D3.0XD4.0 L180   Contact
  • [12] PJG315B001H CAPILLARY Contact Notes: !D2.2XD4.0 L300, !D2.2XD4.0 L300   Contact
  • [13] PJG141A003 PLATE,BAFFLE(R) Contact   Contact
  • [14] PJG141A004 PLATE,BAFFLE(L) Contact   Contact
  • [15] PJF551A002H SENSOR ASSY(TEMP) In Stock Notes: THI-R1,2,3, THI-R1,2,3
  • [16] PSA941F001 SPRING LEAF In Stock Substitute: RKJ941F001 Notes: FOR SENSOR Show Image
  • [17-18] PJG454A001C DRAIN PAN In Stock
  • [18] SSA326A003F PLUG In Stock Show Image
  • [19] PJG116A009 BRACKET In Stock Show Image
  • [20] PJG142A006 LID ASSY(DRAIN) In Stock
  • [21] PJG119A001A PLATE(BASE,FAN) Contact   Contact
  • [22] PJG119A003A PLATE,FAN Contact   Contact
  • [23] PJG116A001B BRACKET ASSY(MOTOR In Stock Show Image
  • [24] PJG433B001 BELLMOUTH In Stock
  • [25] PJG433B002 BELLMOUTH In Stock
  • [26] SSA431D093A IMPELLER In Stock Show Image
  • [27] SSA512T109D MOTOR,DC In Stock
  • [28] PFA116A207G BRACKET In Stock Substitute: PJG116A063 Notes: LEFT Show Image
  • [29] PFA116A207H BRACKET In Stock Substitute: PJG116A063A Notes: RIGHT Show Image
SKU: DXU24VF HEAT EXCH. AND FAN Category:
