DXK32ZMA-S HEAT EXCH. AND CONTROL

DXK32ZMA-S HEAT EXCH. AND CONTROL

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

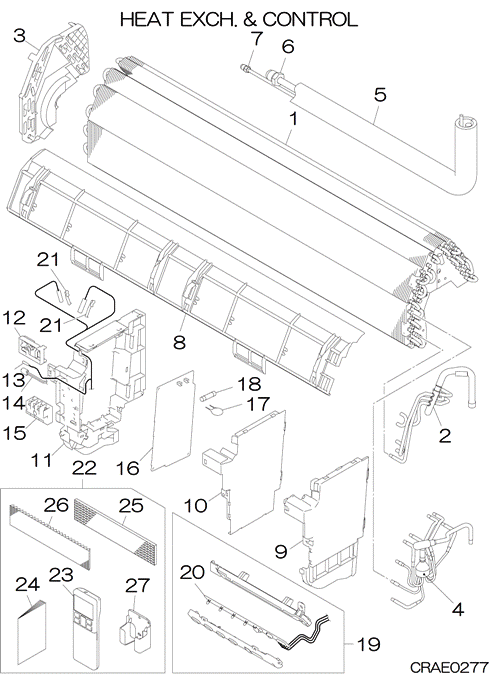

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] In Stock
RMA301A003SD
HEAT EXCH ASSY (AIR)
Notes: Indoor Heat Exchanger Coil assembly
[2] In Stock
RMA315D004A
HEADER ASSY
[3] In Stock
RKW129A410
BRACKET ASSY(L)
[4] In Stock
RMA315A004
DISTRIBUTOR ASSY
[5-7] Contact
RMA321A030A
PIPE ASSY
Contact
[6] In Stock
SSA323F012F
UNION SOLDR
Notes: GAS, UNION SOLDR/ LENGTH 3.5CM Show Image
SSA323F012F
[7] In Stock
SSA323F088A
UNION(SLD)
Notes: FOR LIQ., FOR LIQ.‚ / LENGTH 2.3CM Show Image
SSA323F088A
[8] In Stock
RKW129A411
HOLDER ASSY,FILTER
[9] In Stock
RKW142A402
BOX,CONTROL(R)
RKW142A402
[9-10] In Stock
RKW142A400
BOX ASSY,CONTROL(R
[10] Contact
RKW132A404
COVER,CONTROL(R)
Contact
[11] In Stock
RKW142A401
BOX ASSY,CONTROL(L
RKW142A401
[12] In Stock
RKW129A407
HOLDER,SENSOR
RKW129A407
[13] In Stock
SSA551A223G
SENSOR ASSY
Notes: ROOM TEMP.& 2x HEAT EXCH. 3 ON 1 PLUG Show Image
SSA551A223G
[14] In Stock
SSA551B017C
SENSOR(HUMIDITY)
Notes: HUMIDITY SENSOR Show Image
SSA551B017C
[15] In Stock
SSA561B702B
BLOCK,TERMINAL
Notes: T2 Show Image
SSA561B702B
[16-18] In Stock
RKY505A001ND
PWB ASSY
Notes: MAIN INDOOR BOARD
[17] In Stock
SSA555B050C
VARISTOR
Notes: Z1 Show Image
SSA555B050C
[18] In Stock
SSA564A132
FUSE(CURRENT)
Notes: 3.15A Show Image
SSA564A132
[19] In Stock
RKW503A400
PWB ASSY(DISPLAY)
Notes: DISPLAY/RECEIVER ASSEMBLY Show Image
RKW503A400
[20] In Stock
RKW505A400
PWB (DISPLAY)
Notes: 13/01-DOES COME WITH HARNESS (RECEIVER PCB) Show Image
RKW505A400
[21] In Stock
RKJ941F001
SPRING LEAF
RKJ941F001
[22] Contact
RKW008A402A
PARTS,STANDARD
Contact
[23] In Stock
RLA502A700R
REMOTE CONTROL
Notes: DOES NOT COME WITH HOLDER PART NUMBER - RLA032A700 Show Image
RLA502A700R
[24] Contact
RKW012A412A
MANUAL,INSTRUCTION
Contact
[25] In Stock
RKT437A005D
FILTER,LIGHT
Notes: 1pc ONLY, PHOTOCATALYTIC / DEODORIZER FILTER Show Image
RKT437A005D
[25-26] In Stock
RKW437A201C
FILTER ASSY, CLEAN
Notes: 1x ALLERGN FILTER & 1x PHOTO-CATALYIC/DEODERIZING FILTER in 1 pack
[26] In Stock
RKT437A801B
FILTER,CLEAN (ALLE)
Notes: 1pc ONLY, ALLERGEN FILTER
[27] In Stock
RLA032A700
HOLDER(REMO-CON)
Notes: REMOTE CONTROL HOLDER/CRADLE Show Image
RLA032A700
[28] Contact
RKW011F400AP
LABEL,MODELNAME
Contact
