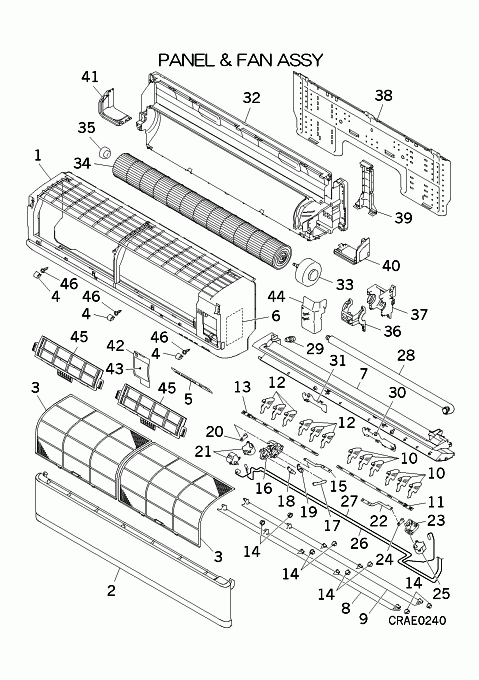

DXK28Z4-S PANEL AND FAN ASSY

DXK28Z4-S PANEL AND FAN ASSY

Parts List

Key:
Instock.
Nilstock.
Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock
RKW122A400
PANEL,FRONT
[1-6] In Stock
RKW102A400
PANEL ASSY,FRONT
[2] In Stock
RKW435A401
PANEL ASSY,AIR IN
Notes: FOR CLIP ONLY SEE RKW129A401 (LEFT) or RKW129A400 (RIGHT)
[3] In Stock
RKW437A400
FILTER, AIR
Notes: 1pc ONLY, RETURN AIR / DUST FILTER - UNIT HAS 2 - SOLD INDIVIDUALLY
[4] In Stock
RKW129A214A
CAP
RKW129A214A
[5] In Stock
RKW133A401
PLATE,ORNAMENT
RKW133A401
[6] Contact
RKW011G400
LABEL,WIRING
Contact
[7] In Stock
RKW435A202AG
GRILLE ASSY, AIR OUT
Notes: Includes Condensate/Drip tray + all louvers/ louver motors/louver wiring harness & drain hose
[7-31] In Stock
RKW435A202AG
GRILLE ASSY, AIR OUT
Notes: Includes Condensate/Drip tray + all louvers/ louver motors/louver wiring harness & drain hose
[8] In Stock
RKW436A200A
FLAP(A)
Notes: UPPER, UPPER, WIDER FLAP
[9] In Stock
RKW436A201AB
FLAP(B)
Notes: LOWER, LOWER, THINNER FLAP
[10] In Stock
RKW436A203A
LOUVER
Notes: 1pc ONLY, LEFT/RIGHT AIR FLOW Show Image
RKW436A203A
[10-11] In Stock
RKW436A202B
LOUVER ASSY (R)
Notes: RIGHT SIDE - Includes 6 louvers and louver plate connector
[11] Contact
RKW129A209A
PLATE,CONNECTING
Contact
[12] In Stock
RKW436A203A
LOUVER
Notes: 1pc ONLY, LEFT/RIGHT AIR FLOW Show Image
RKW436A203A
[12-13] In Stock
RKW436A202C
LOUVER ASSY (L)
Notes: LEFT SIDE - Includes 6 louvers and louver plate connector - LEFT SIDE
[13] Contact
RKW129A209A
PLATE,CONNECTING
Contact
[14] In Stock
RKW935C200
COLLAR
Notes: 1pc ONLY, ***SOLD INDIVIDUALLY***
[15] In Stock
RKW129A208A
JOINT(L)
RKW129A208A
[15-21] In Stock
RKW144A200A
LINK ASSY
RKW144A200A
[16] In Stock
RKW129A210
BRACKET,MOTOR(A)
Notes: LENGTH 8.5CM Show Image
RKW129A210
[17] In Stock
RKW144A201
LINK
RKW144A201
[18] In Stock
RKW144A202
CRANK(A)
RKW144A202
[19] In Stock
RKW144A203
CRANK(B)
Notes: LINKAGE BETWEEN FLAP AND UP/DOWN LOUVER MOTOR HOUSING Show Image
RKW144A203
[20] In Stock
RKW144A204
CRANK(C)
RKW144A204
[21] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR FLAP, Louver/Flap/Stepping motor Show Image
SSA512T158
[22] In Stock
RKW129A207A
JOINT(R)
Notes: LENGTH 9.5CM Show Image
RKW129A207A
[22-25] In Stock
RKW144A205A
CRANK ASSY
RKW144A205A
[23] In Stock
RKW129A211
BRACKET
RKW129A211
[24] In Stock
RKW144A204
CRANK(C)
RKW144A204
[25] In Stock
SSA512T158
MOTOR STEPPING
Notes: FOR FLAP, Louver/Flap/Stepping motor Show Image
SSA512T158
[26] In Stock
RKW504A401
HARNESS ASSY
Notes: FOR FLAP MOTOR, FOR FLAP MOTOR - wiring harness for horizontal up/down flap stepping motor Show Image
RKW504A401
[27] In Stock
RKW504A402
HARNESS ASSY
Notes: FOR LOUVER MOTOR, FOR LOUVER MOTOR - has two plugs for louver motors - one short harness and one long harness Show Image
RKW504A402
[28] In Stock
SSA423A102A
DRAIN HOSE
[29] In Stock
SSA326A043
PLUG
Notes: LENGTH 3.5CM Show Image
SSA326A043
[30] In Stock
RKW116A400
BRACKET,PANEL(R)
RKW116A400
[31] In Stock
RKW116A401
BRACKET,PANEL(L)
RKW116A401
[32] In Stock
RKW111A200C
BASE ASSY
Notes: REAR CASING
[33] In Stock
SSA512T099
MOTOR,DC
Notes: FOR IMPELLER, (FOR IMPELLER) COMES WITH WIRING HARNESS Show Image
SSA512T099
[34] In Stock
SSA431G043A
IMPELLER
Notes: FAN BARREL / FAN SCROLL - INDOOR Show Image
SSA431G043A
[35] In Stock
SSA923C136
BEARING, PLANE
Notes: END BEARING Show Image
SSA923C136
[36] In Stock
RKW129A201
BRACKET,MOT
RKW129A201
[37] In Stock
RKW129A202
BRACKET,MOT
[38] In Stock
RKW032A200A
PLATE , INSTALLATION
Notes: BACKING PLATE
[39] In Stock
PHA129A302A
COVER ASSY(PIPE)
PHA129A302A
[40] In Stock
RKW132A400
LID(R)
Notes: RIGHT LID Show Image
RKW132A400
[41] In Stock
RKW132A401
LID(L)
Notes: LEFT HAND SIDE LID (WHEN LOOKING AT UNIT) Show Image
RKW132A401
[42-43] In Stock
RKW132A403
LID ASSY(TERMINAL)
RKW132A403
[43] Contact
RSA011H027
LABEL,NOTICE
Contact
[44] In Stock
RKW129A405
COVER,PIPE
[45] In Stock
RKW129A213
HOLDER, FILTER
Notes: 1pc ONLY, FILTER HOLDER ONLY - FILTERS FOR FILTER HOLDER IN "HEAT EXCH. AND CONTROL" Show Image
RKW129A213
[46] In Stock
SSA913A007A
SCREW,TAP
Notes: 4X14, 1pc ONLY/ LENGTH 2CM Show Image
SSA913A007A
